MachsMarket-JB-RevA

$32,353.96

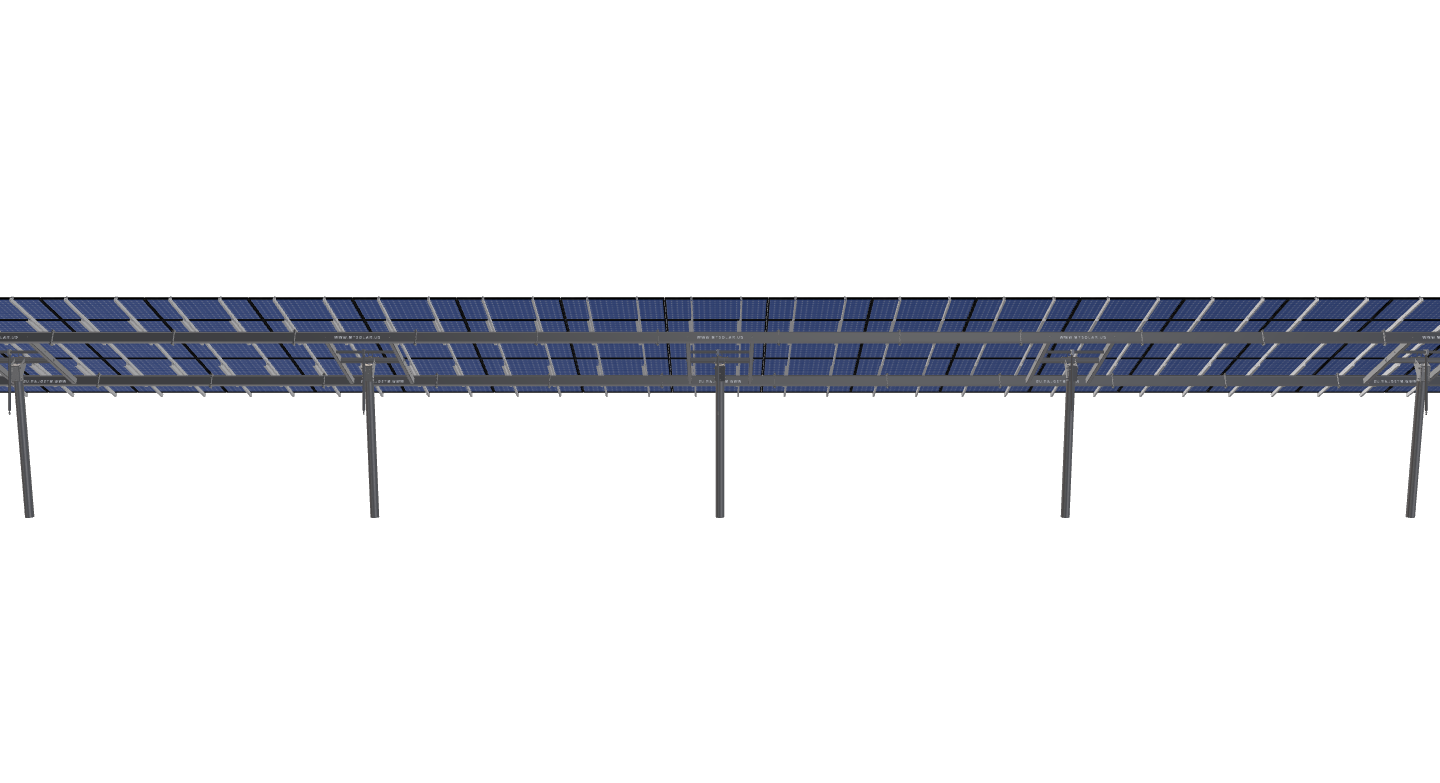

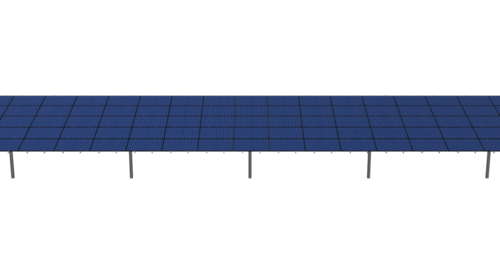

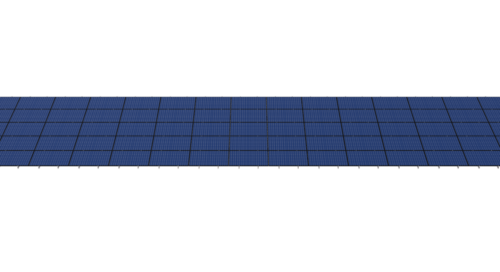

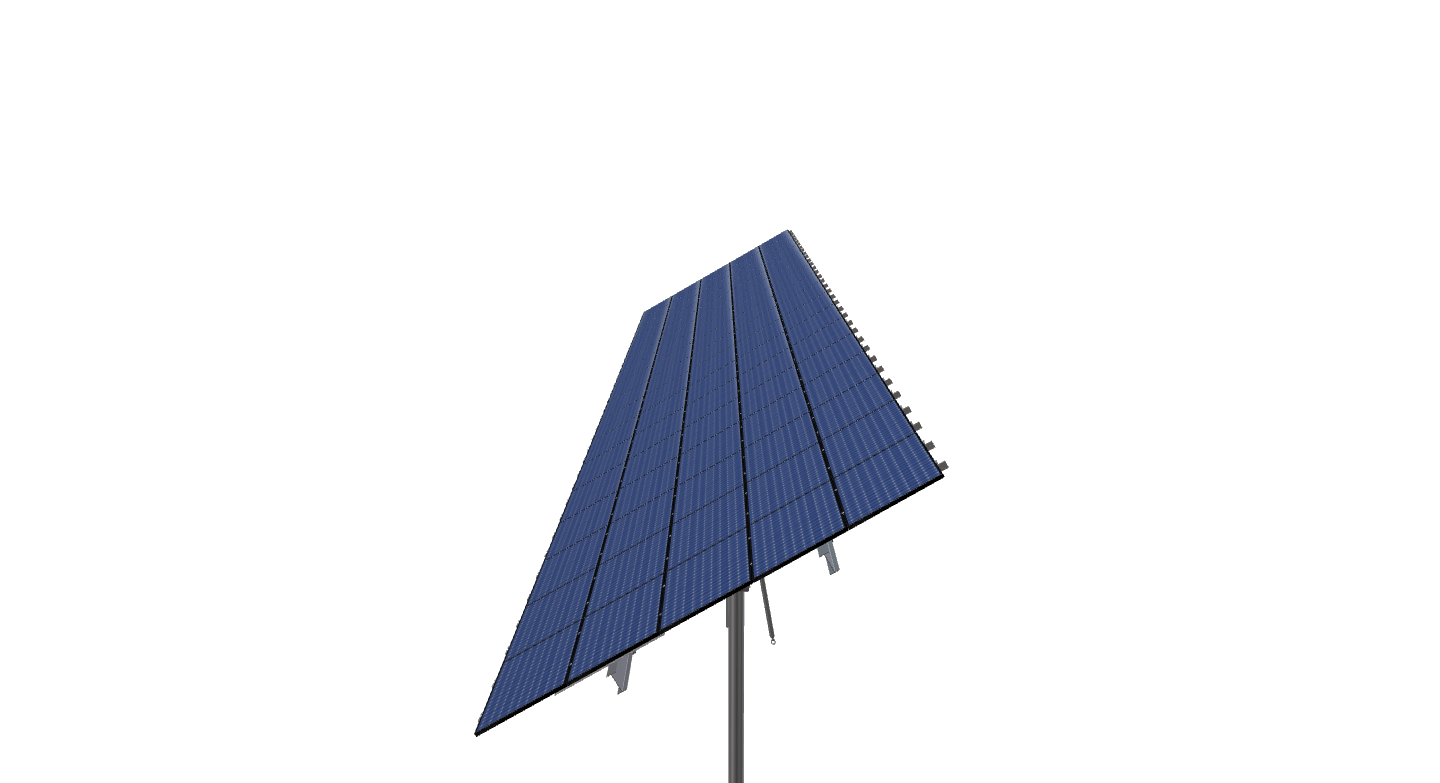

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 40 inches and an array layout of 17 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 5P-22.5-8TOP-XD-45-L-5Hx17W-STRUTS-BL5J Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 40 inches and an array layout of 17 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 6486.630000000001 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

5P-22.5-8TOP-XD-45-L-5HX17W-STRUTS-BL5J

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

5.00

POLE SPACING

22.50

POLE HEIGHT

10.22

WING SPAN

45.00

MAX FOUNDATION DEPTH

9.00

TILT ANGLE

30.00

CANTILEVER

1260.00

GROUND CLEARANCE

6.00

NO POLES

5.00

MODULE AREA

1792.97

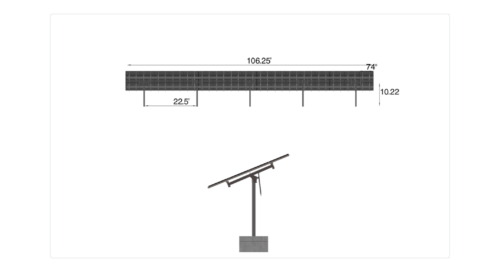

ARRAY WIDTH

106.25

ARRAY HEIGHT

16.88

RAIL LENGTH

202.50

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

105.00

GROUND TO TOP

14.39

PROJECTED PANEL HEIGHT

8.33

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

PROJECT ID

MACHSMARKET-JB-REVA

SITE ADDRESS

18, SCHOOL, ST, PAWLET, VT, 05761, USA

MODULE WIDTH

40.00

NUMBER ROWS

5.00

NUMBER COLUMNS

17.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

XD

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

TRUE

TOTAL PRICE

32353.96

TOTAL WEIGHT

6486.63

TOTAL PALLETS

5.00

pdf

https://skycivquotes.s3.amazonaws.com/7f58f949-9691-489f-bac9-d8aab89c5313.pdf

ID

2909.00
