MTSOLAR_28GFBDKE0G1L

$17,532.83

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44 inches and an array layout of 11 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

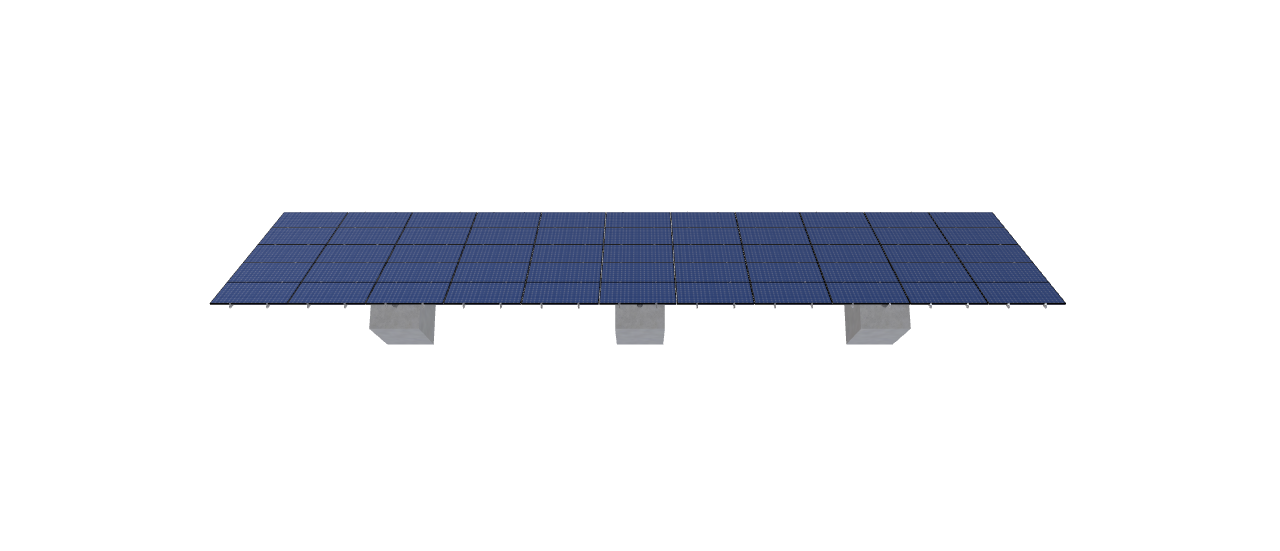

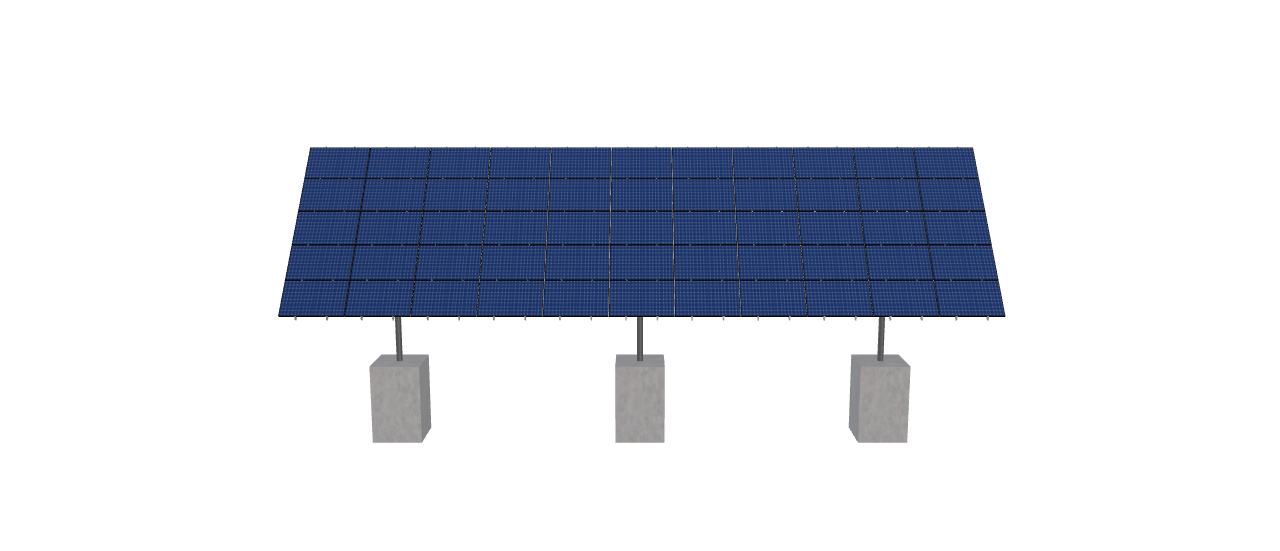

See 3D Model Here

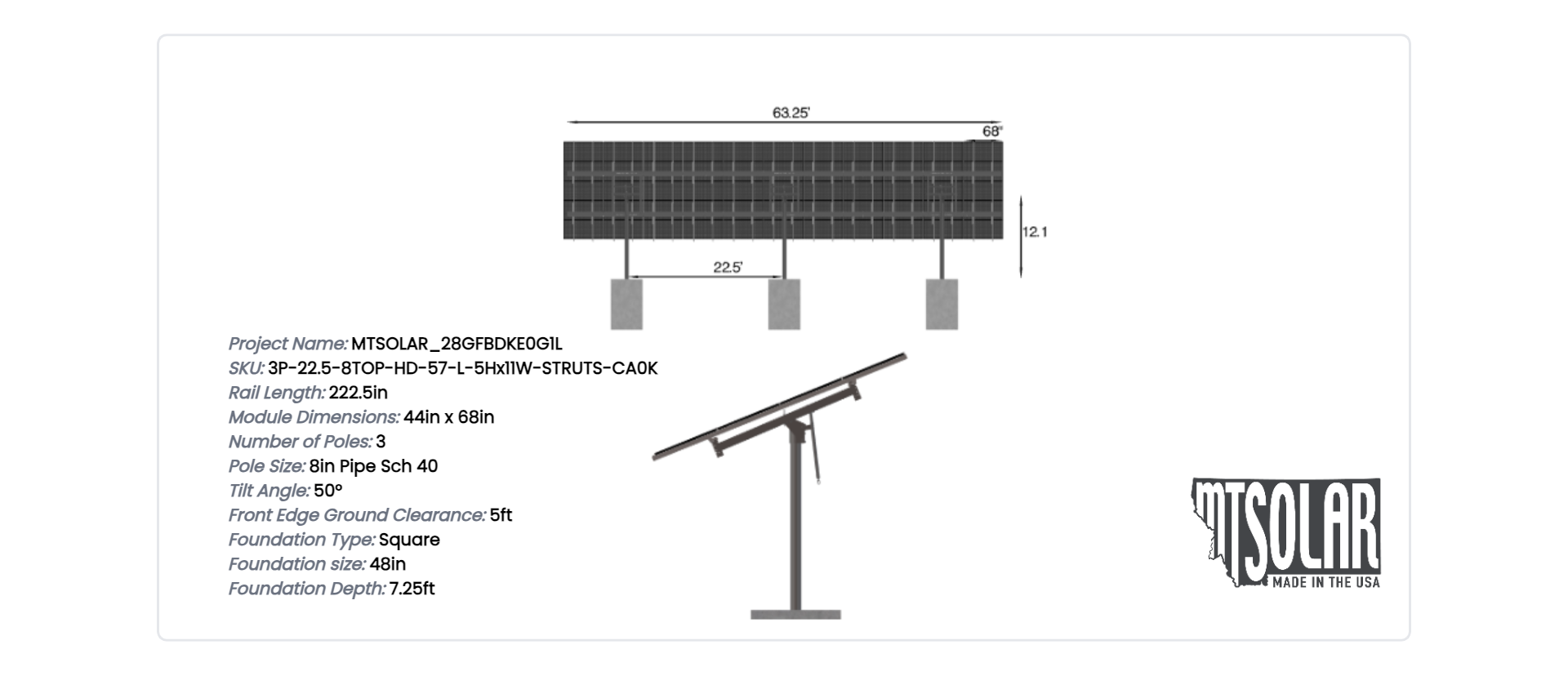

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-22.5-8TOP-HD-57-L-5Hx11W-STRUTS-CA0K Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44 inches and an array layout of 11 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3561.49 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-8TOP-HD-57-L-5HX11W-STRUTS-CA0K

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

12.10

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.25

TILT ANGLE

50.00

CANTILEVER

744.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

1172.76

ARRAY WIDTH

63.25

ARRAY HEIGHT

18.54

RAIL LENGTH

222.50

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

62.00

GROUND TO TOP

19.12

PROJECTED PANEL HEIGHT

14.04

PROJECT ID

MTSOLAR, 28GFBDKE0G1L

SITE ADDRESS

15575, NW, ROADS, END, BANKS, OR, 97106, USA

MODULE WIDTH

44.00

NUMBER ROWS

5.00

NUMBER COLUMNS

11.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

103.00

SNOW LOAD OVERRIDE

25.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

TOTAL PRICE

17532.83

TOTAL WEIGHT

3561.49

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/56797427-e98f-4046-a99d-cae643a6e169.pdf

ID

6310.00
