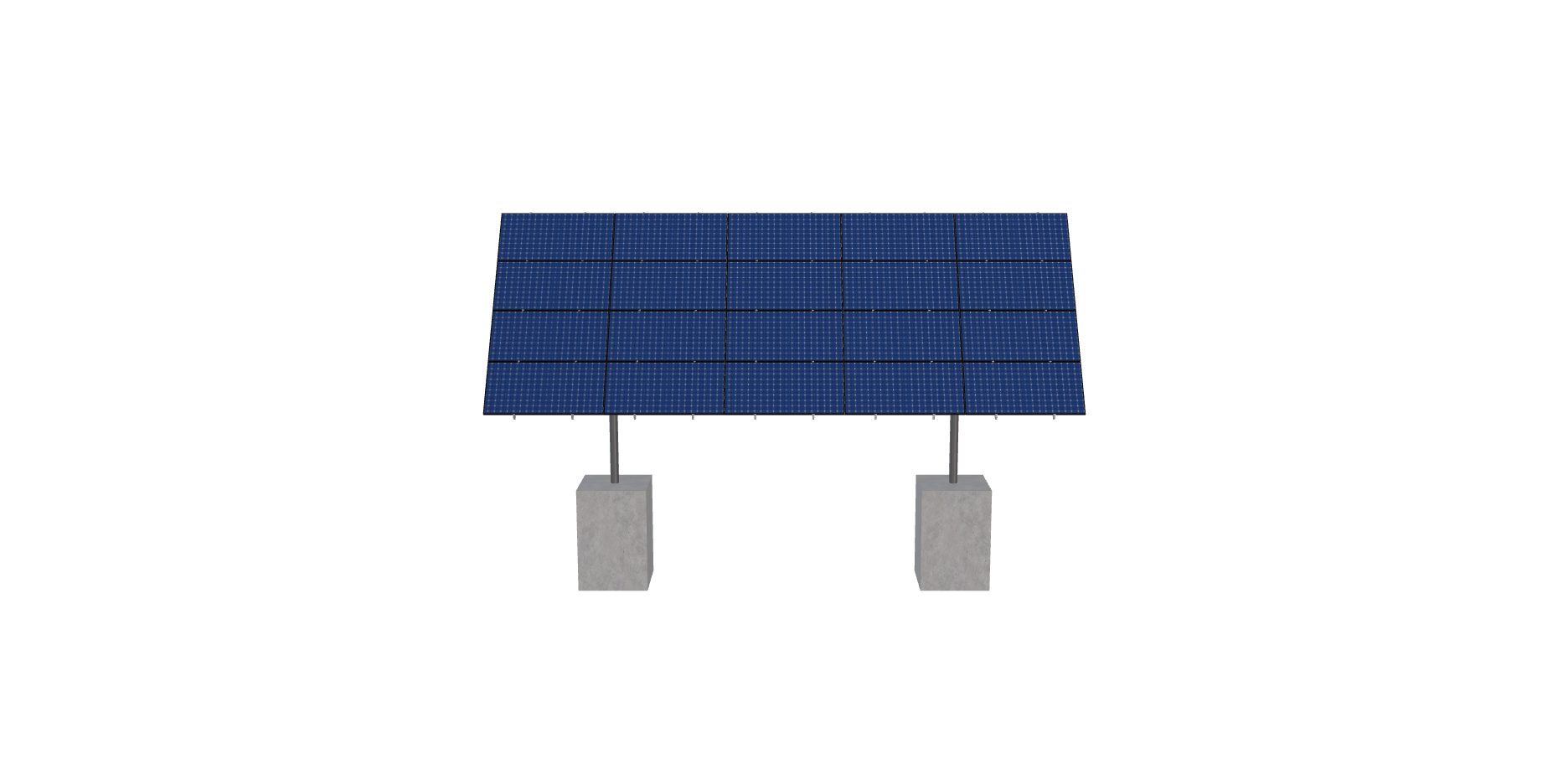

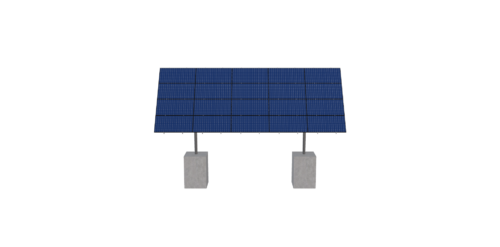

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_2A7BL1D5A529
$9,275.94
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1730.28 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-8TOP-HD-45-L-4HX5W-9G64 |
DUTY SIZE | HD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 11.16 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 6.75 |
TILT ANGLE | 55.00 |
CANTILEVER | 450.00 |
GROUND CLEARANCE | 5.00 |
NO POLES | 2.00 |
MODULE AREA | 568.26 |
ARRAY WIDTH | 37.80 |
ARRAY HEIGHT | 15.03 |
RAIL LENGTH | 180.40 |
MODULE LENGTH | 89.72 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 37.50 |
GROUND TO TOP | 17.25 |
PROJECTED PANEL HEIGHT | 12.18 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | MTSOLAR, 2A7BL1D5A529 |
SITE ADDRESS | 240, BIG, BAY, RD, LA, POINTE, WI, 54850, USA |
MODULE WIDTH | 44.60 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 5.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | HD |
POLE OVERRIDE | 8, 40 |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 9275.94 |
TOTAL WEIGHT | 1730.28 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/99e9cc00-1b18-4f87-8988-6ea15a34cce2.pdf |
|
ID | 4239.00 |
3D Solar link |
