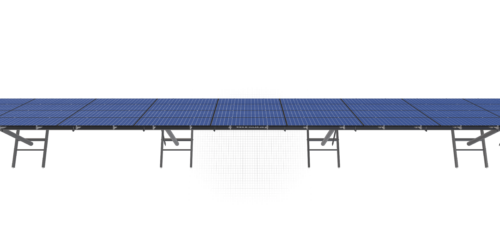

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 92 inches by 40 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_HFGBAJ65D279
$15,452.81
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 92 inches by 40 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2772.48 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-SD-12-L-4HX9W-DHGK |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.85 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 941.63 |
| ARRAY WIDTH | 69.75 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 92.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 16.62 |
| PROJECTED PANEL HEIGHT | 11.55 |
| PROJECT ID | MTSOLAR, HFGBAJ65D279 |
| SITE ADDRESS | PRIVATE, PROPERTY, NEAR, WISE, RIVER, MT, 59762, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | 27.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 15452.81 |
| TOTAL WEIGHT | 2772.48 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/bd50e791-6e90-4f0a-bb6f-ff8b92621326.pdf |
|
| ID | 486.00 |
| 3D Solar link |
