This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

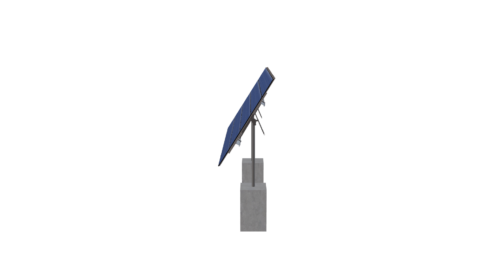

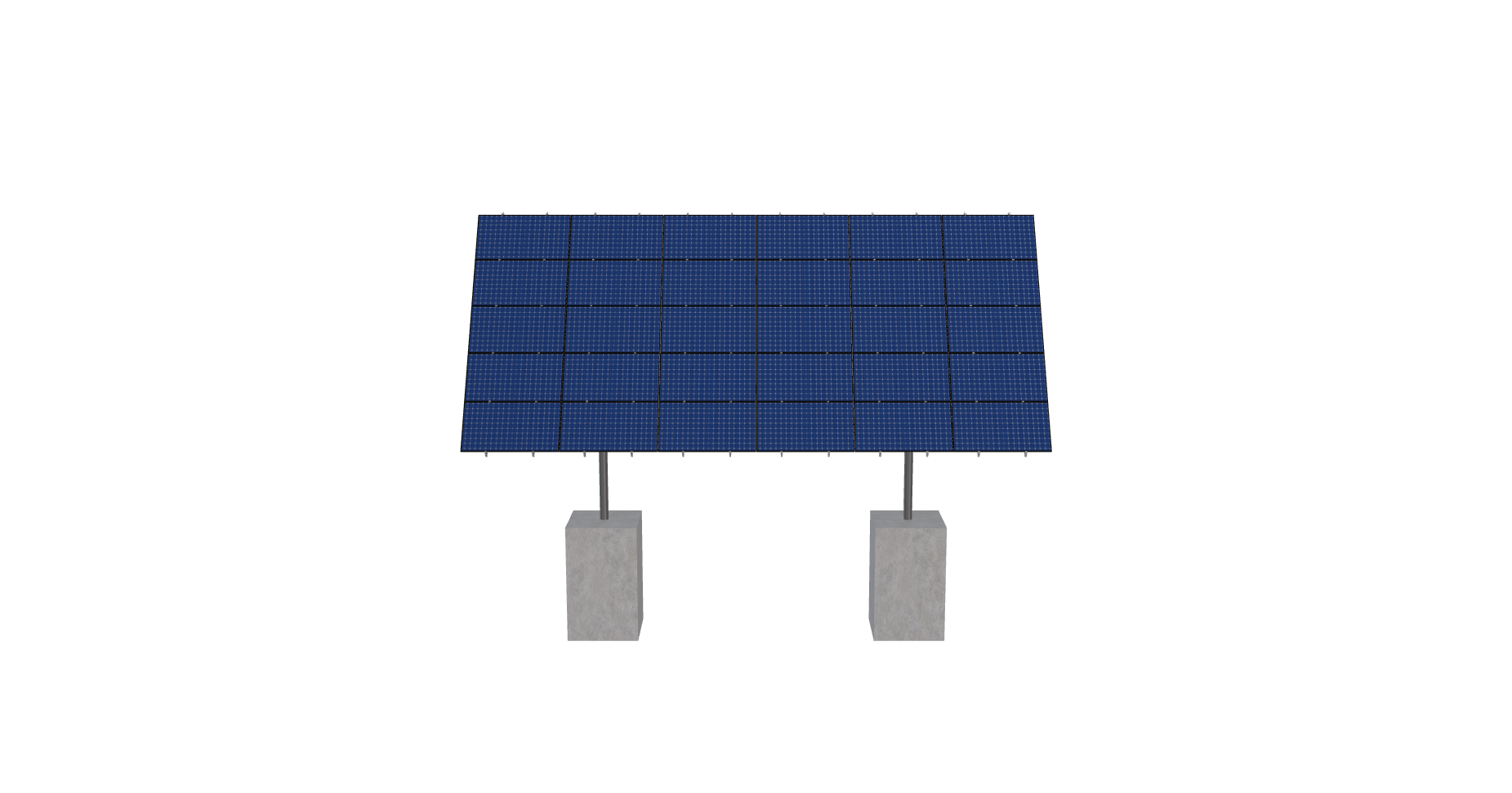

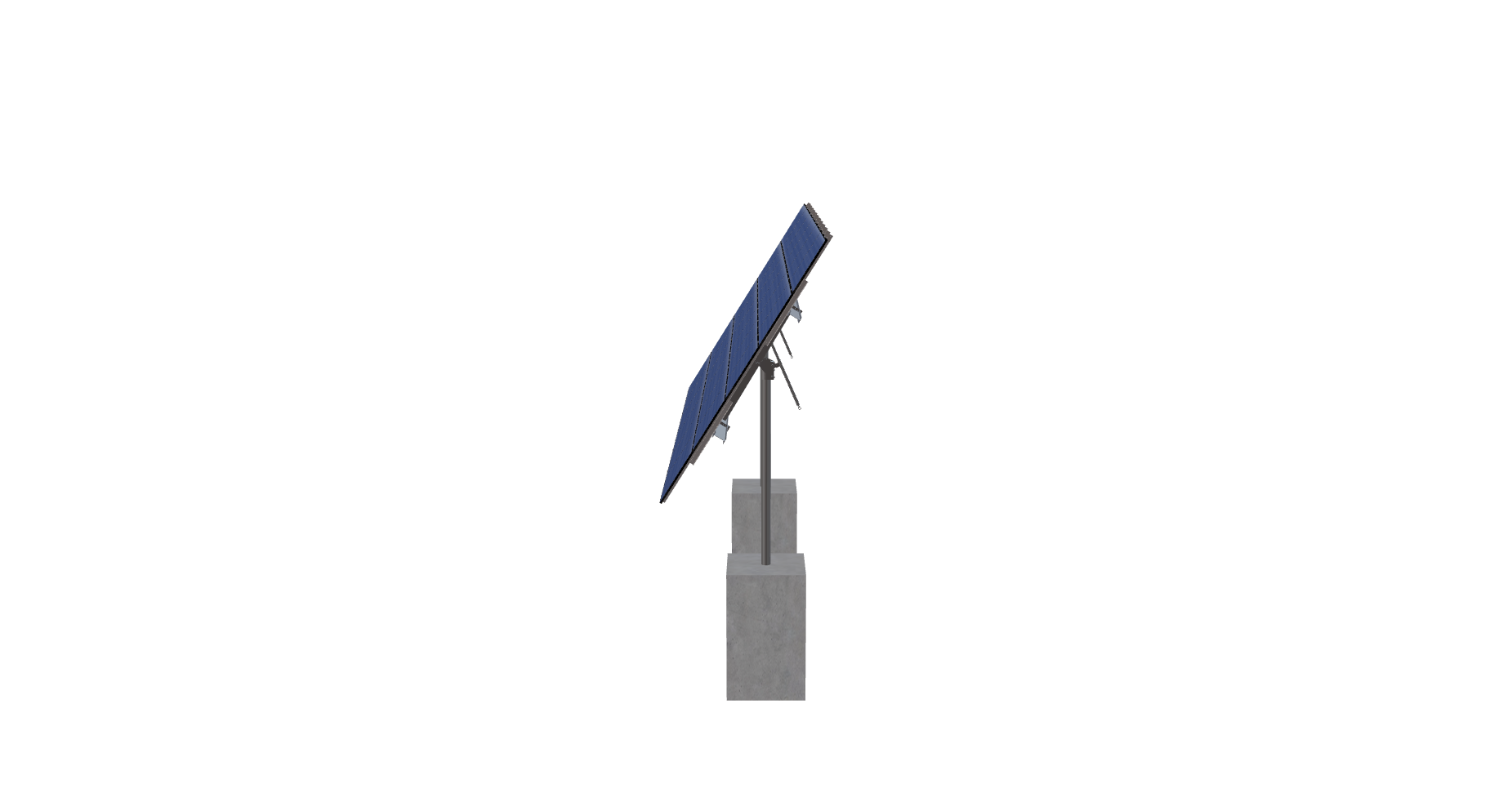

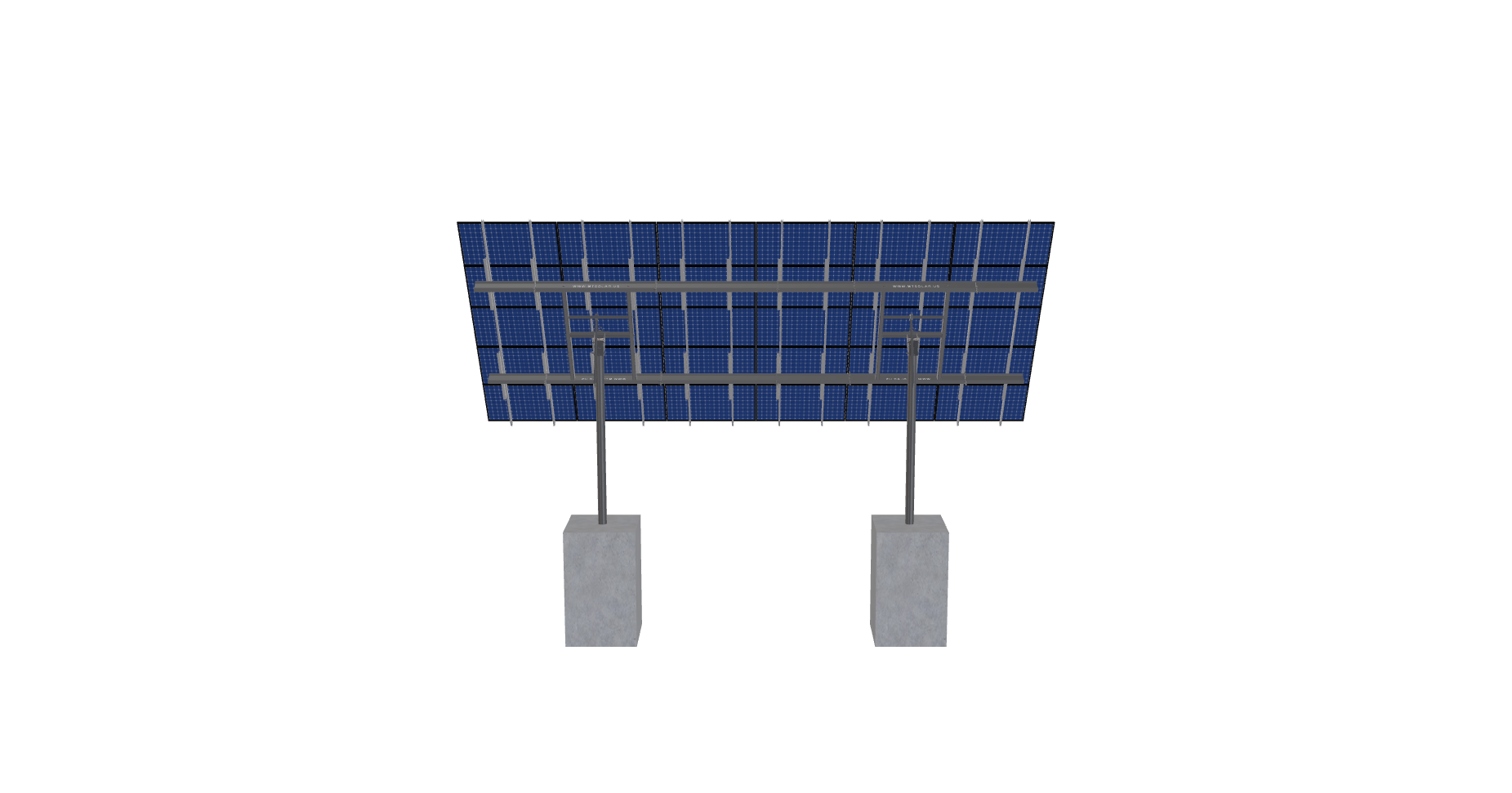

See 3D Model Here
Schuetzler Solar
$9,410.21
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1852.1399999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-SD-45-L-5HX6W-HLKG |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.16 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 58.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 613.41 |
| ARRAY WIDTH | 36.35 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 71.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 19.22 |
| PROJECTED PANEL HEIGHT | 14.13 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | SCHUETZLER, SOLAR |
| SITE ADDRESS | 461, HILLSIDE, RD, COLGATE, WI, 53017, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9410.21 |
| TOTAL WEIGHT | 1852.14 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/9df000bd-9fd3-47e8-b0b7-e0135ba586af.pdf |
|
| ID | 3205.00 |
| 3D Solar link |
