This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.9 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
White Enterprise-RevA-JB
$15,840.53
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.9 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3000.6099999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-XD-72-L-4HX8W-STRUTS-E55L |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |

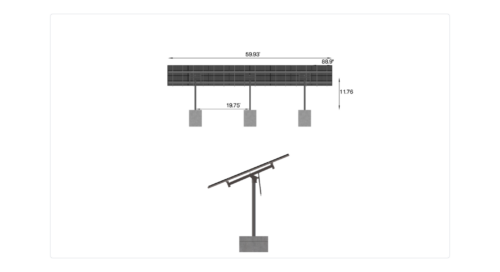

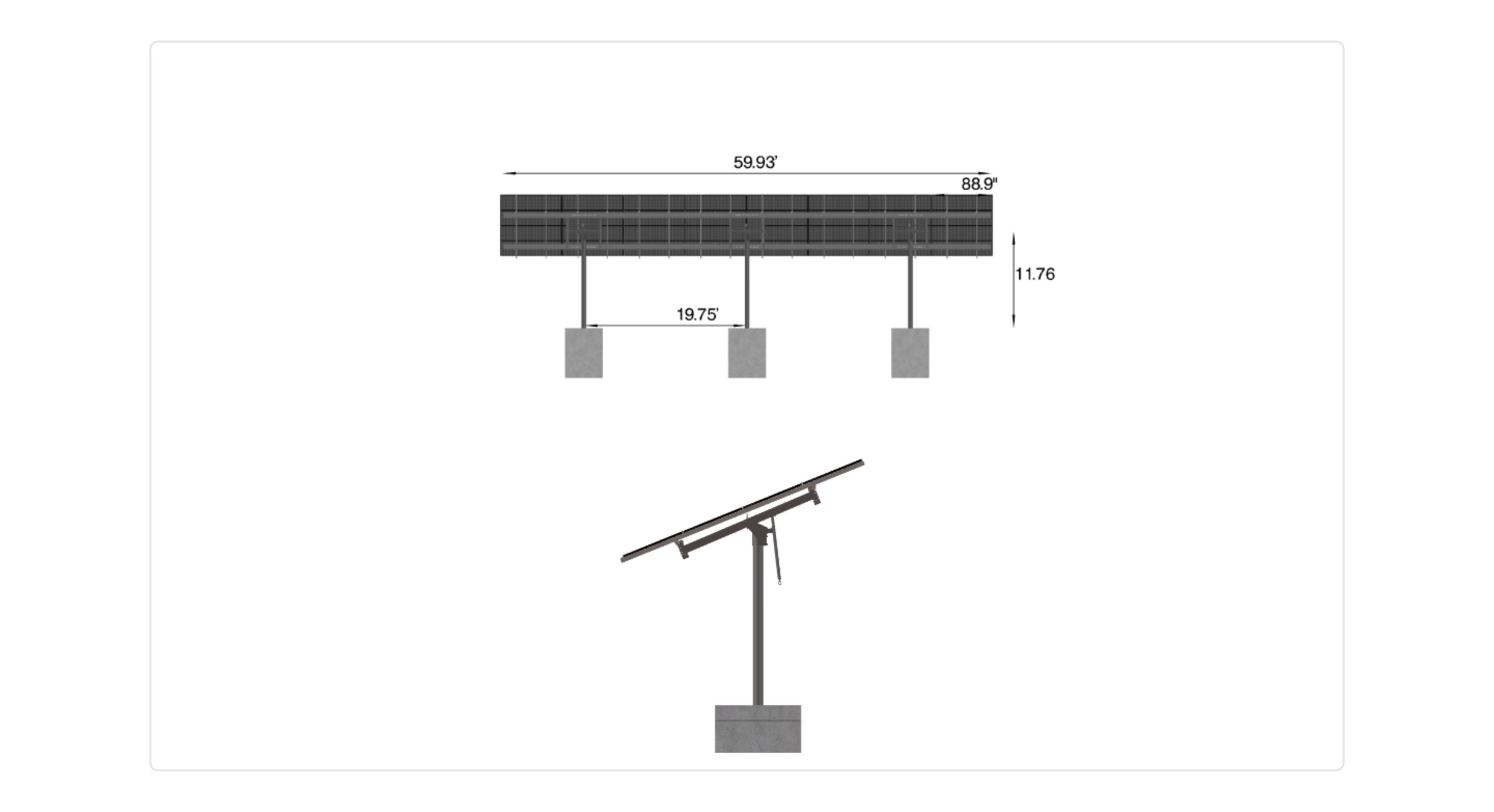

| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.76 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 708.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 901.00 |
| ARRAY WIDTH | 59.93 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 88.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 59.00 |
| GROUND TO TOP | 15.47 |
| PROJECTED PANEL HEIGHT | 7.43 |
| PROJECT ID | WHITE, ENTERPRISE-REVA-JB |
| SITE ADDRESS | 7505, MONTANA, HWY, 35, BIGFORK, MT, 59911, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 99.00 |
| SNOW LOAD OVERRIDE | 55.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 15840.53 |
| TOTAL WEIGHT | 3000.61 |
| TOTAL PALLETS | 3.00 |
