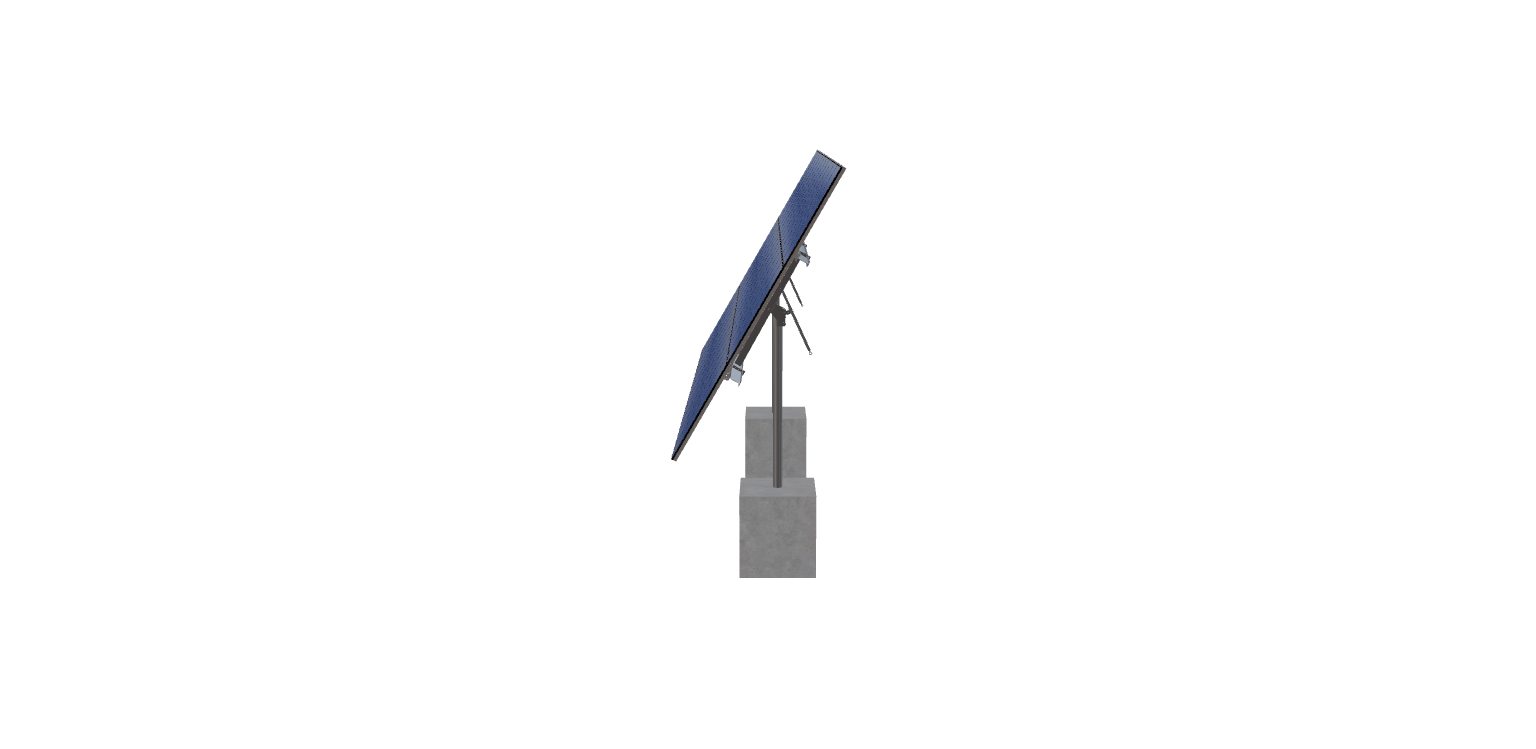

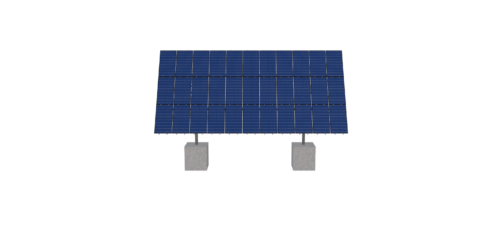

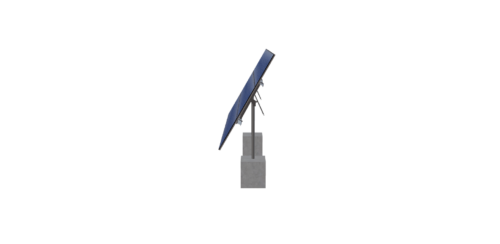

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 41.1 inches by 74 inches and an array layout of 11 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
33 vert panel 2 pole array
$9,795.14
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 41.1 inches by 74 inches and an array layout of 11 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1592.12 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-45-L-3HX11W-BJIK |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.06 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 718.77 |
| ARRAY WIDTH | 38.59 |
| ARRAY HEIGHT | 18.63 |
| RAIL LENGTH | 223.50 |
| MODULE LENGTH | 41.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 19.08 |
| PROJECTED PANEL HEIGHT | 16.02 |
| PROJECT ID | 33, VERT, PANEL, 2, POLE, ARRAY |
| SITE ADDRESS | 201, HESSIAN, HILL, RD, CORNISH, ME, 04020, USA |
| MODULE WIDTH | 74.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 50.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 9328.70 |
| TOTAL WEIGHT | 1592.12 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/64dcfe39-23dc-43ac-bcea-f9a14ae3049f.pdf |
|
| ID | 5409.00 |
| 3D Solar link |
