First United Methodist Church – 50 mods – V1Jb

$14,743.03

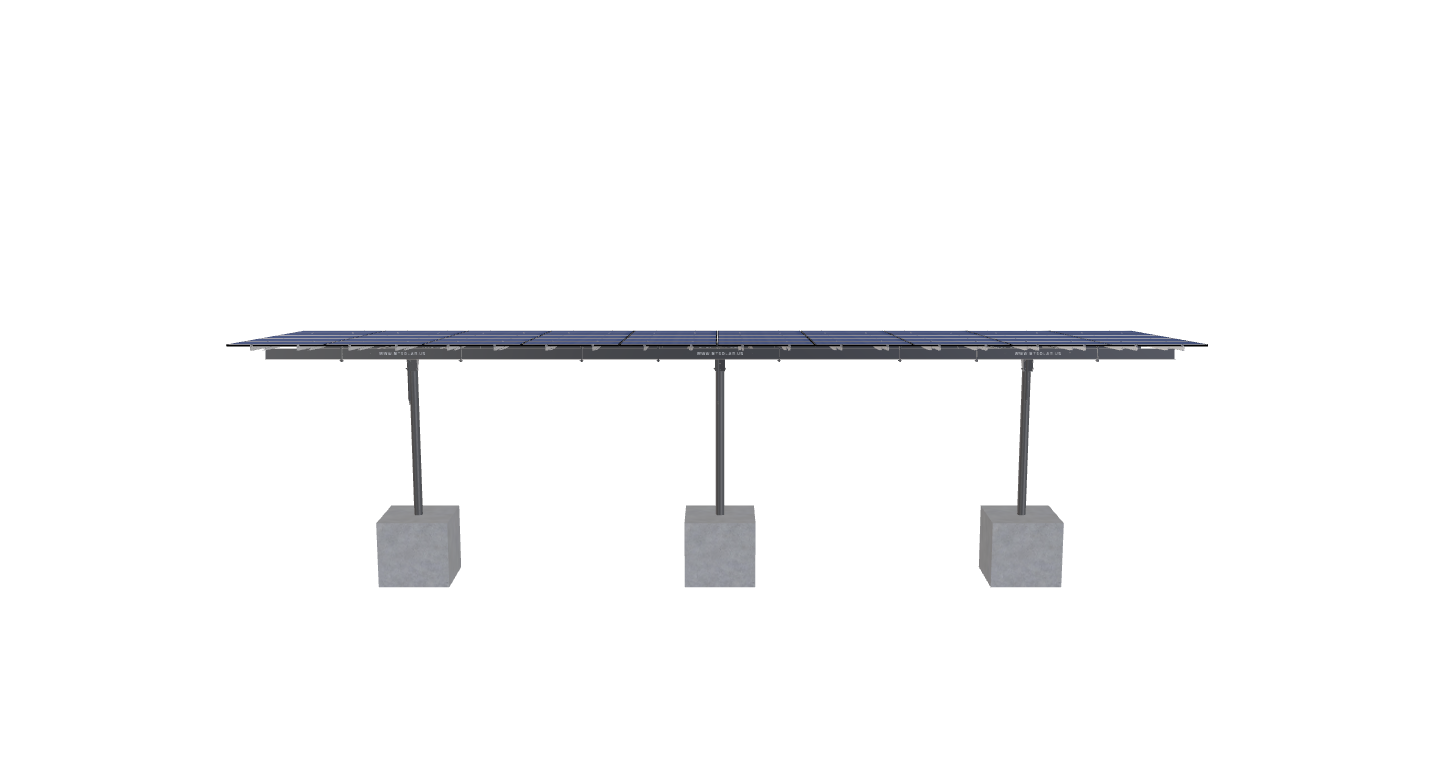

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.1 inches by 40.9 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $14,743.03
Total options:
Order total:
SKU: 3P-19.75-6TOP-SD-57-L-5Hx10W-GK0B Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.1 inches by 40.9 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2925.4 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-6TOP-SD-57-L-5HX10W-GK0B

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

10.75

WING SPAN

57.00

MAX FOUNDATION DEPTH

4.25

TILT ANGLE

5.00

CANTILEVER

678.00

GROUND CLEARANCE

10.00

NO POLES

3.00

MODULE AREA

1007.69

ARRAY WIDTH

58.42

ARRAY HEIGHT

17.25

RAIL LENGTH

207.00

MODULE LENGTH

69.10

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

56.50

GROUND TO TOP

11.49

PROJECTED PANEL HEIGHT

1.49

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

FIRST, UNITED, METHODIST, CHURCH, -, 50, MODS, -, V1JB

SITE ADDRESS

214, W, MAIN, ST, CARBONDALE, IL, 62901, USA

MODULE WIDTH

40.90

NUMBER ROWS

5.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

14743.03

TOTAL WEIGHT

2925.40

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/b71bfd51-064b-422c-9afa-51cf544c4669.pdf

ID

6980.00
