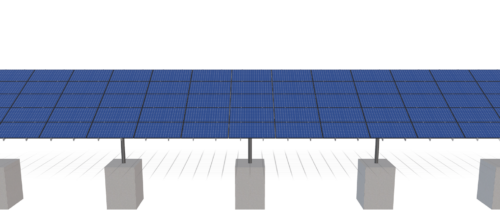

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77 inches by 39 inches and an array layout of 15 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

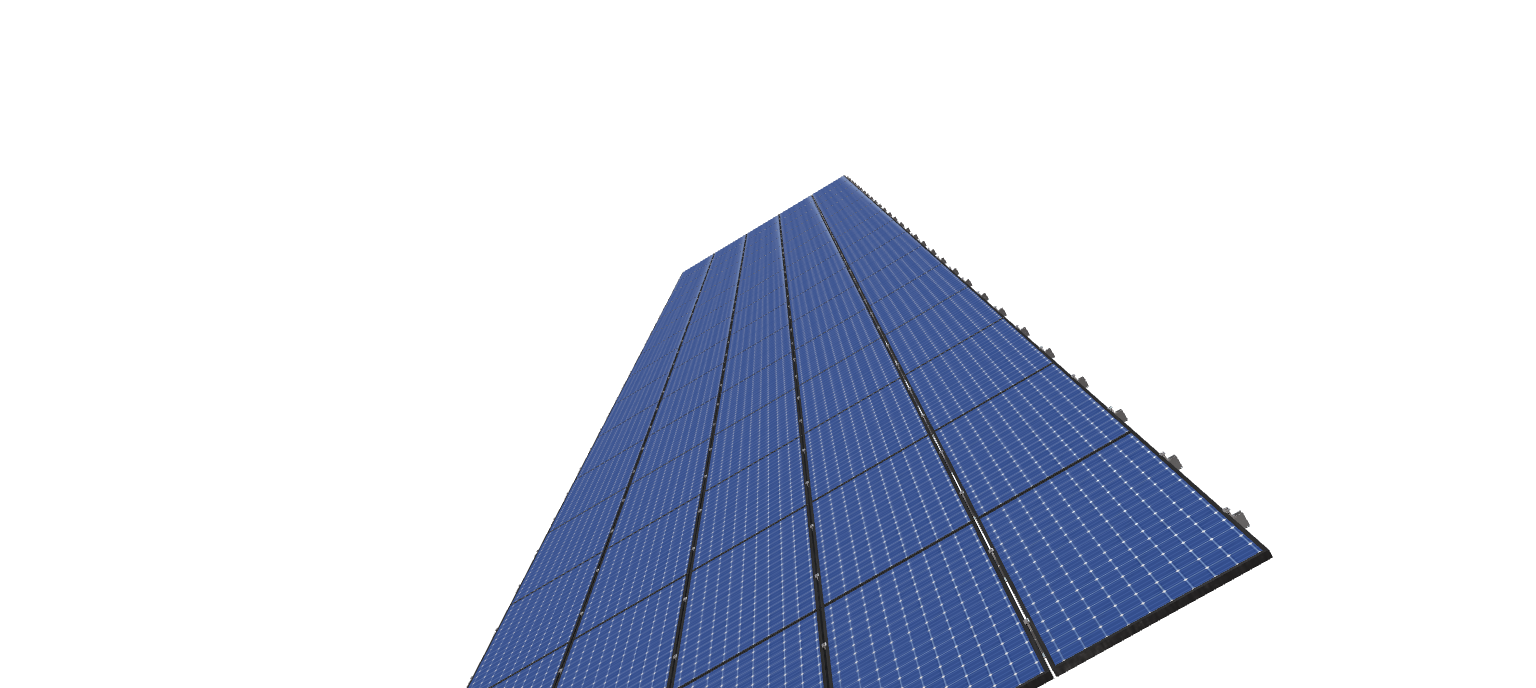

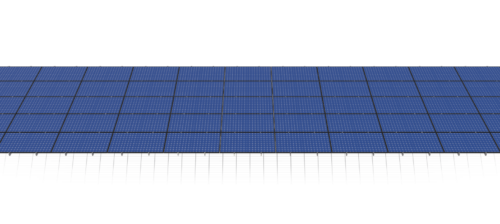

See 3D Model Here
HomeShopRevA
$29,911.10
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 77 inches by 39 inches and an array layout of 15 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 6067.75 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-8TOP-XD-57-L-5HX15W-3IJH |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.24 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 31.00 |
| CANTILEVER | 1152.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1604.69 |
| ARRAY WIDTH | 97.50 |
| ARRAY HEIGHT | 16.46 |
| RAIL LENGTH | 197.50 |
| MODULE LENGTH | 77.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 96.00 |
| GROUND TO TOP | 13.42 |
| PROJECTED PANEL HEIGHT | 8.37 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | HOMESHOPREVA |
| SITE ADDRESS | 12263, 230TH, ST, LINWOOD, KS, 66052, USA |
| MODULE WIDTH | 39.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 29911.10 |
| TOTAL WEIGHT | 6067.75 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/86dc2fa5-aacb-4b95-a60d-b3f36c719721.pdf |
|
| ID | 428.00 |
| 3D Solar link |
