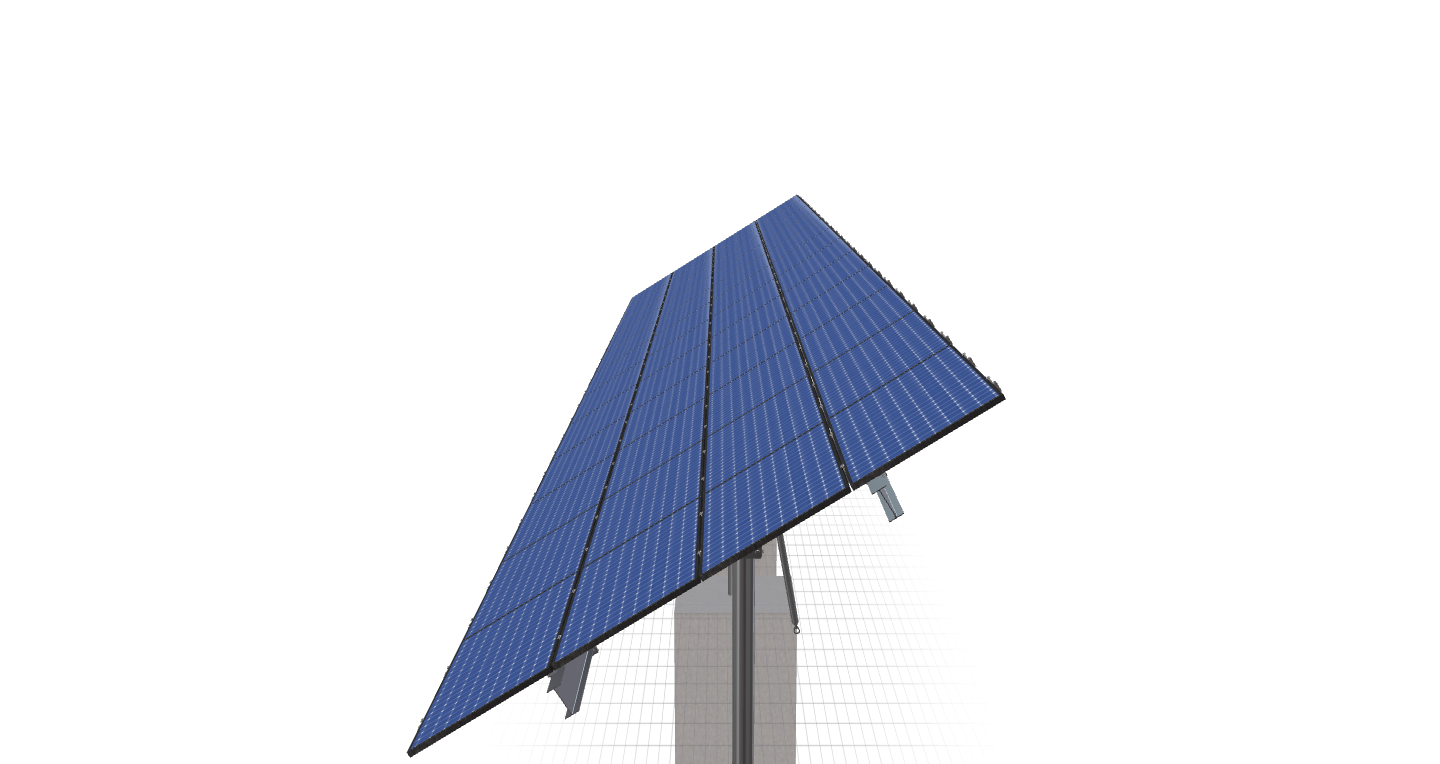

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
INDEPENDENT POWER_Holden Caine_REV.CU.B
$21,472.43
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4015.64 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-XD-45-L-4HX12W-3AL9 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.66 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 32.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1046.04 |
| ARRAY WIDTH | 75.80 |
| ARRAY HEIGHT | 13.80 |
| RAIL LENGTH | 165.60 |
| MODULE LENGTH | 74.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 12.27 |
| PROJECTED PANEL HEIGHT | 7.22 |
| WIND SPEED OVERRIDE | 165.00 |
| SNOW LOAD OVERRIDE | 45.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | INDEPENDENT, POWER, HOLDEN, CAINE, REV.CU.B |
| SITE ADDRESS | 8393, STONERIDGE, TERRACE, BOULDER, CO, 80302, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 21472.43 |
| TOTAL WEIGHT | 4015.64 |
| TOTAL PALLETS | 4.00 |
