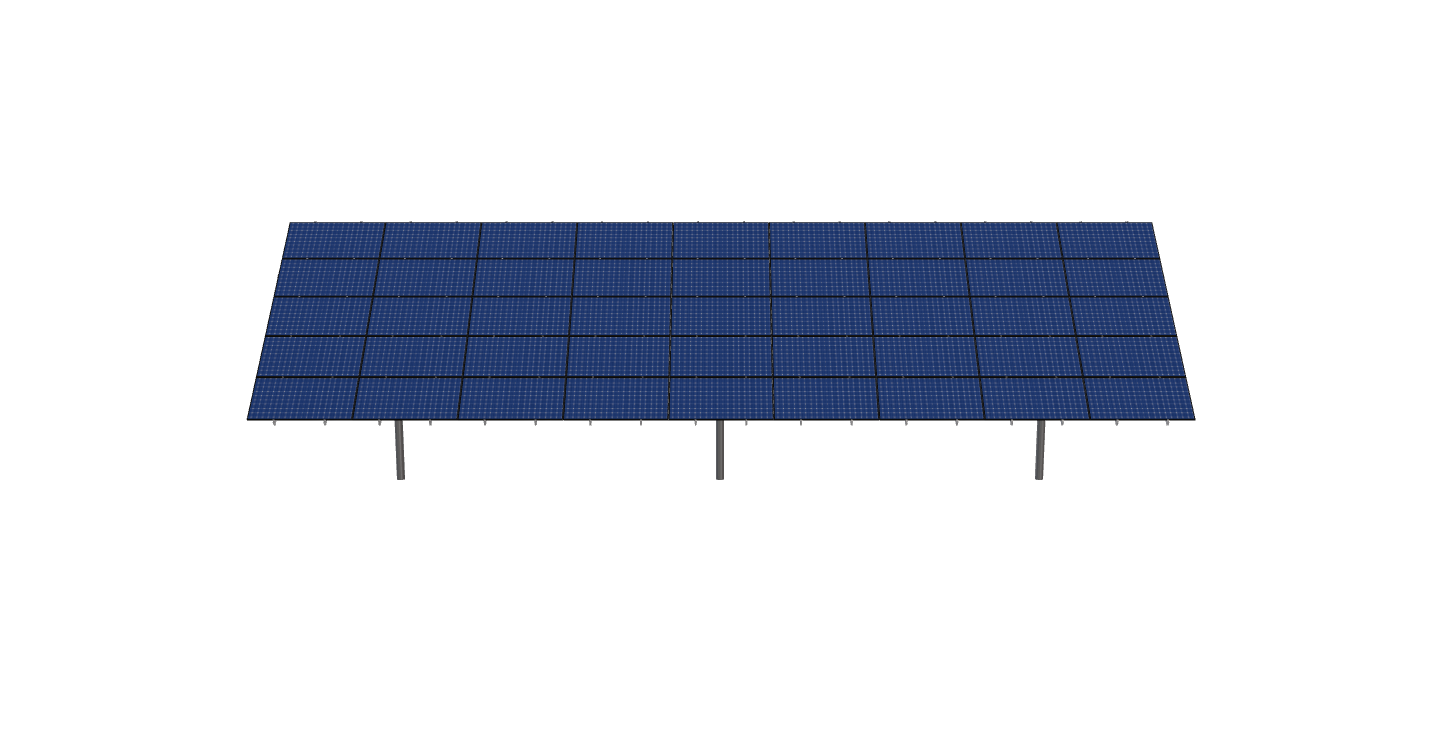

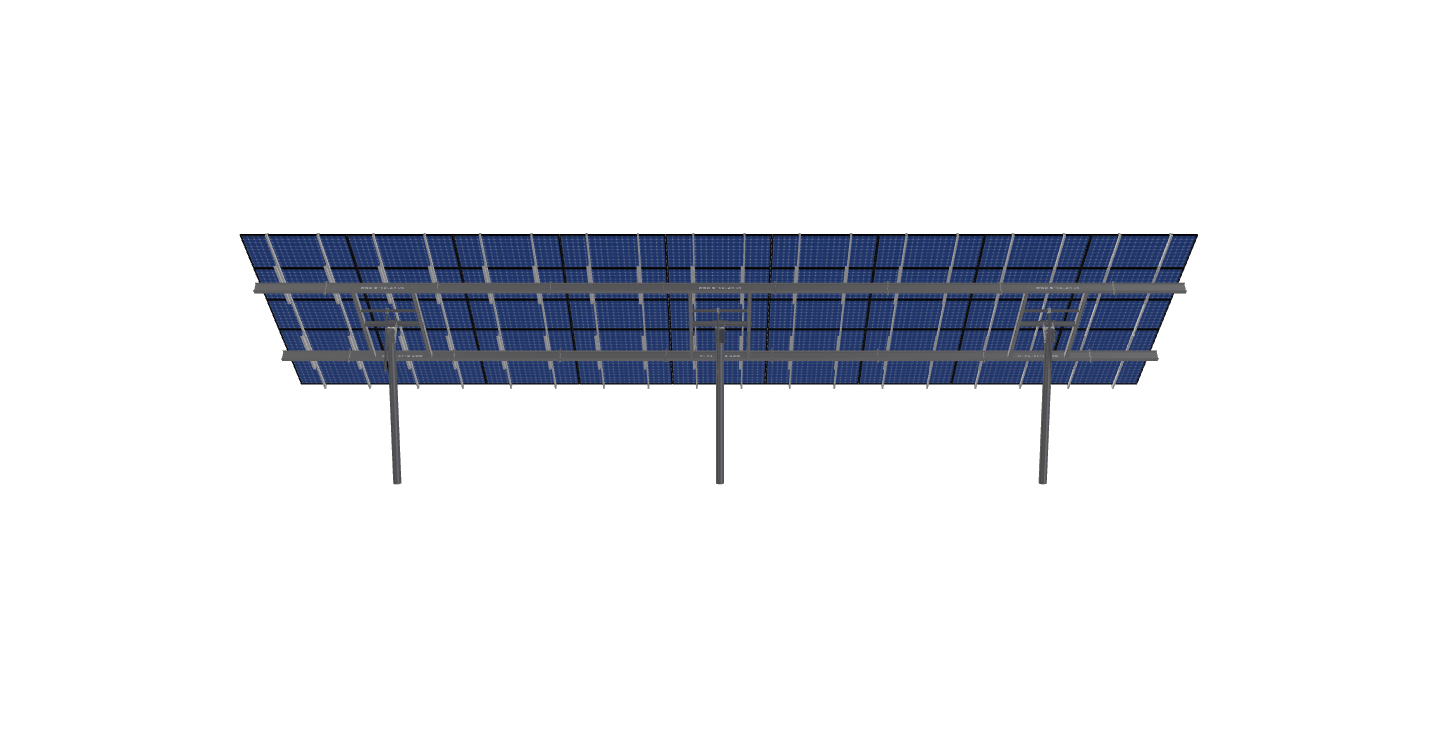

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.9 inches by 40.6 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MillnerWinery-JB-RevG
$16,545.89
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.9 inches by 40.6 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3358.61 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-HD-57-L-5HX9W-2FCC |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.16 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 63.00 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1064.75 |
| ARRAY WIDTH | 62.18 |
| ARRAY HEIGHT | 17.13 |
| RAIL LENGTH | 205.50 |
| MODULE LENGTH | 81.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 17.24 |
| PROJECTED PANEL HEIGHT | 12.17 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | MILLNERWINERY-JB-REVG |
| SITE ADDRESS | MN-15, KIMBALL, MN, USA |
| MODULE WIDTH | 40.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | ISOLATED |
| FOUNDATION SIZE | 60.00 |
| ISOLATED FOUNDATION THICKNESS | 42.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16545.89 |
| TOTAL WEIGHT | 3358.61 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/4042c4fb-e364-44eb-b058-8834a043dce6.pdf |
|
| ID | 2230.00 |
| 3D Solar link |
