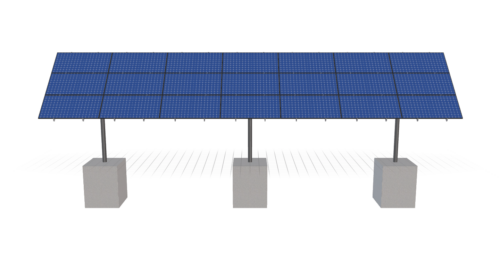

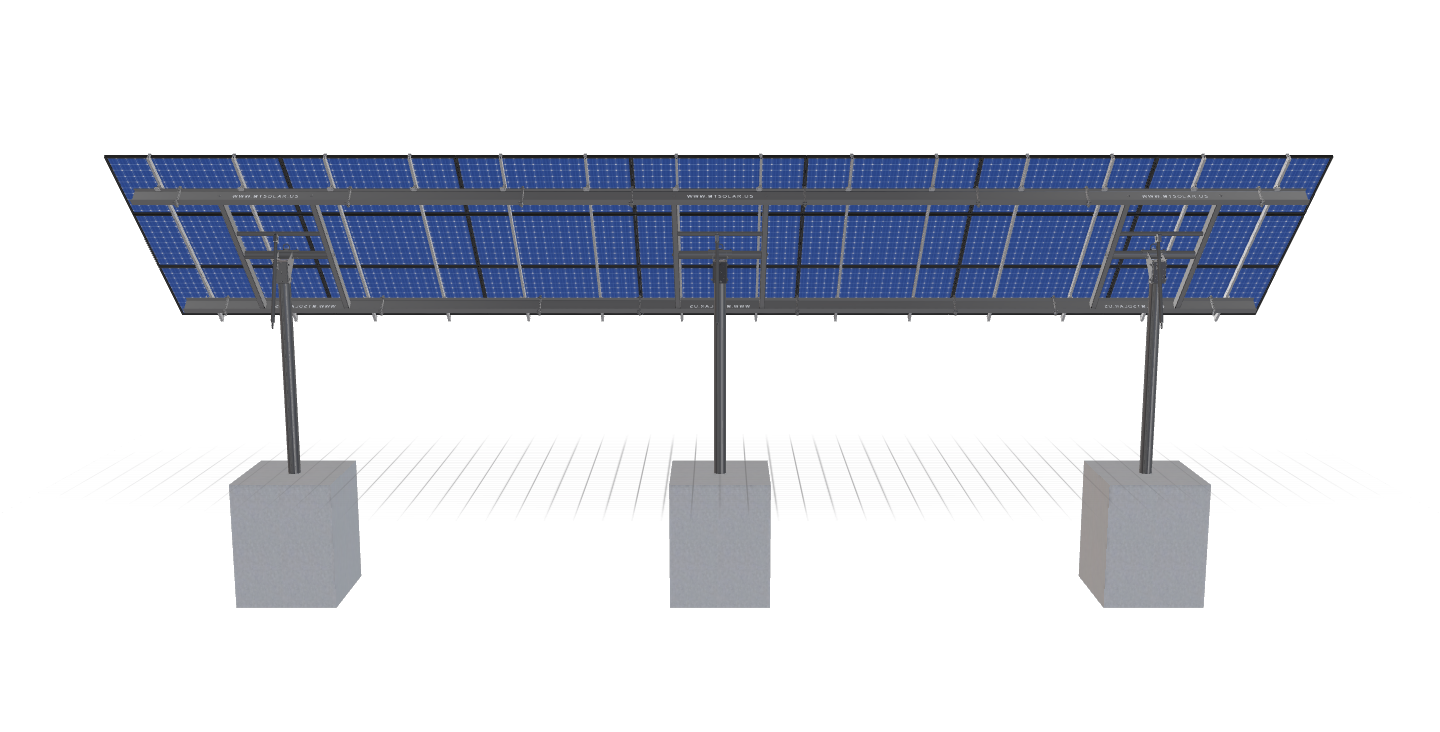

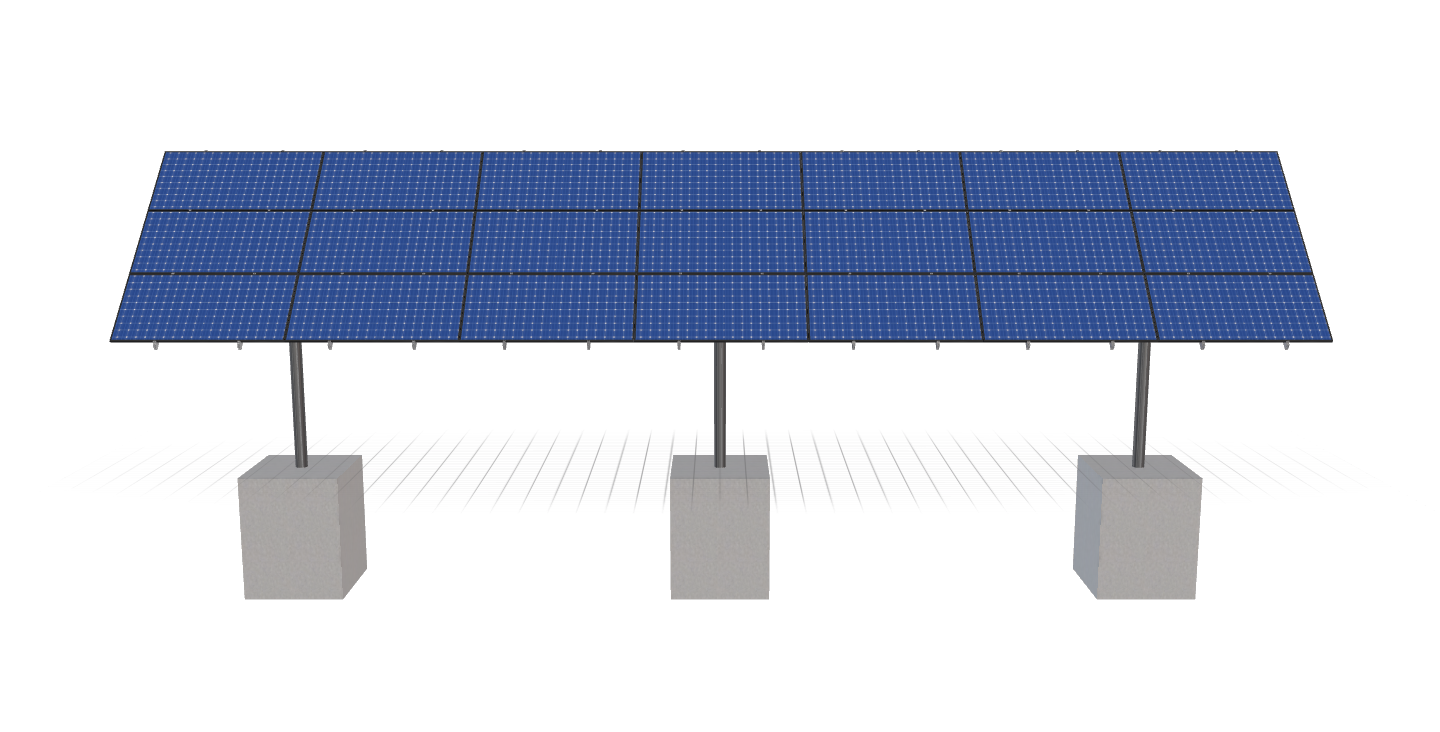

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.64 inches and an array layout of 7 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MTSOLAR_7842B2F77K3F-RevG
$11,227.30
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.64 inches and an array layout of 7 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2021.44 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-SD-24-L-3HX7W-K8DB |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.06 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 597.20 |
| ARRAY WIDTH | 52.92 |
| ARRAY HEIGHT | 11.29 |
| RAIL LENGTH | 135.42 |
| MODULE LENGTH | 89.72 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 14.07 |
| PROJECTED PANEL HEIGHT | 8.03 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MTSOLAR, 7842B2F77K3F-REVG |
| SITE ADDRESS | 100, E, MAIN, ST, MANDAN, ND, 58554, USA |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 11227.30 |
| TOTAL WEIGHT | 2021.44 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/61b2f913-fb14-44ce-830d-52ad486f20f8.pdf |
|
| ID | 1138.00 |
| 3D Solar link |
