This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 40 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

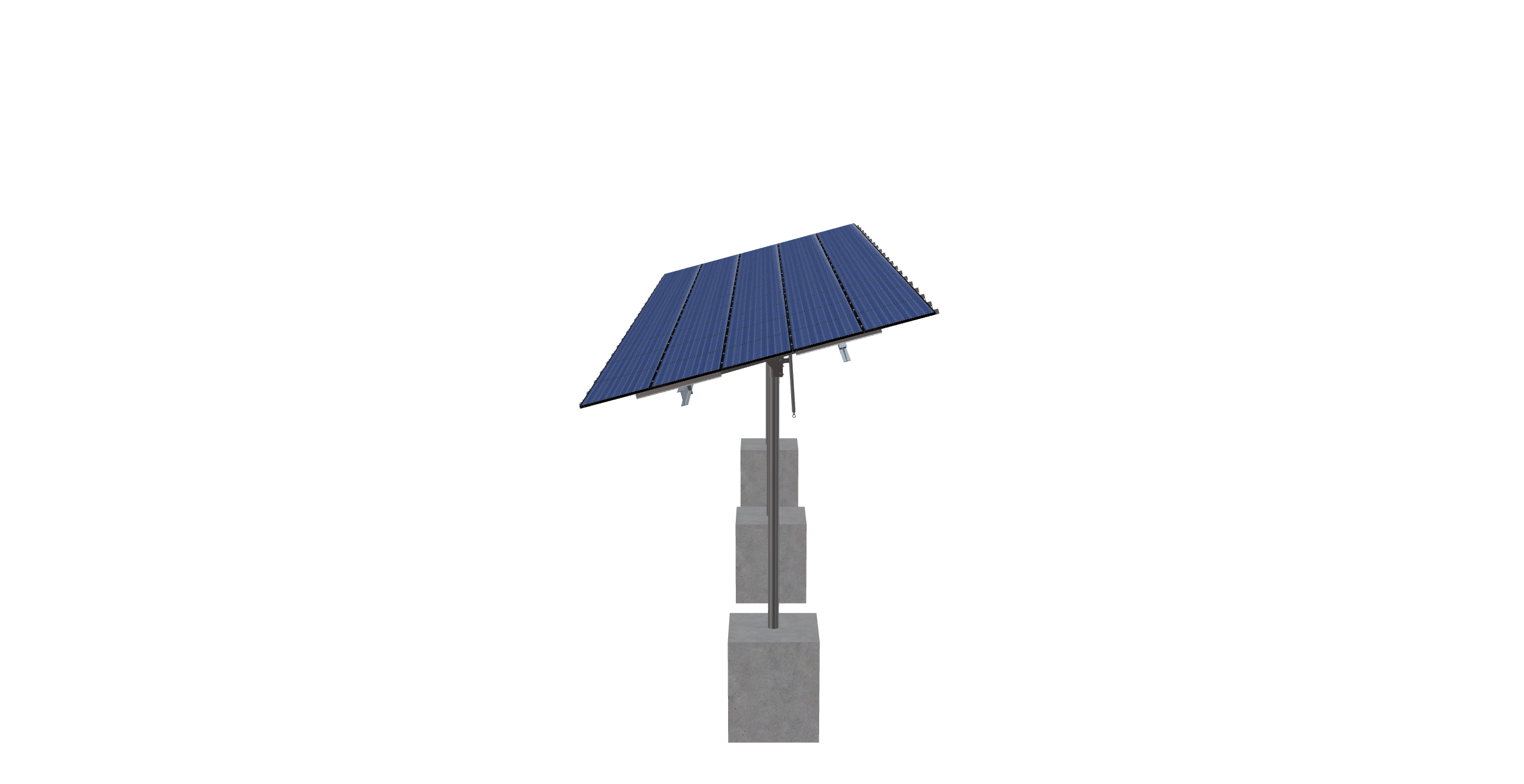

See 3D Model Here
MTSOLAR_F8227J00HKF9
$14,996.40
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 40 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 2988.4 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-22.5-6TOP-SD-45-L-5HX10W-H2D3 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 14.18 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 5.25 |
TILT ANGLE | 15.00 |
CANTILEVER | 720.00 |
GROUND CLEARANCE | 12.00 |
NO POLES | 3.00 |
MODULE AREA | 1026.56 |
ARRAY WIDTH | 60.83 |
ARRAY HEIGHT | 16.88 |
RAIL LENGTH | 202.50 |
MODULE LENGTH | 72.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 60.00 |
GROUND TO TOP | 16.34 |
PROJECTED PANEL HEIGHT | 4.31 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | MTSOLAR, F8227J00HKF9 |
SITE ADDRESS | 8500, NE, SISKIYOU, ST, PORTLAND, OR, 97220, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 10.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 14996.40 |
TOTAL WEIGHT | 2988.40 |
TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/ab58ba3d-49be-48a8-bab0-71f552bc15ce.pdf |
|
ID | 4829.00 |
3D Solar link |
