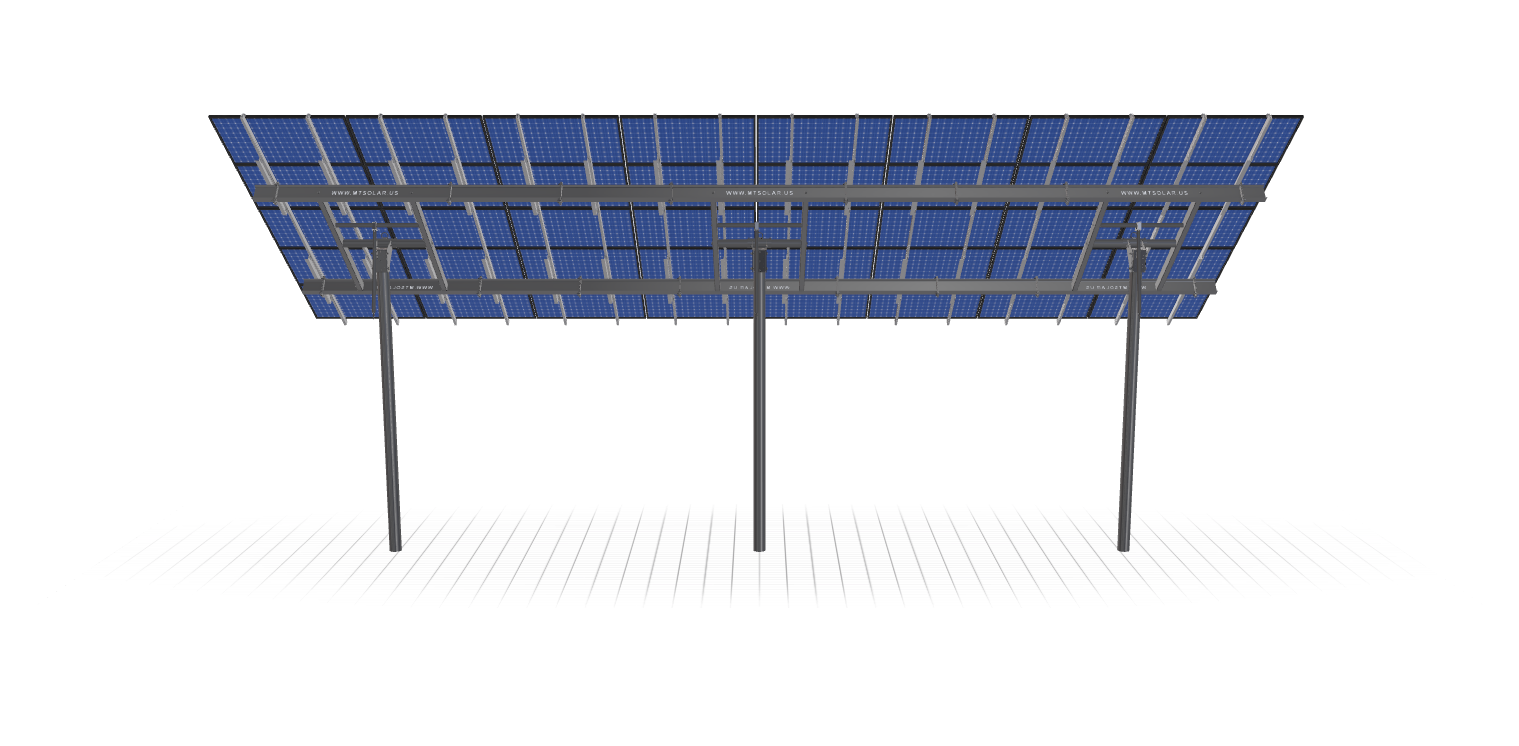

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.3 inches by 39.4 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Solar Car Port Example RevA
$15,331.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.3 inches by 39.4 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2887.29 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-HD-12-L-5HX8W-0BHG |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 14.12 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 9.75 |
| TILT ANGLE | 38.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 745.91 |
| ARRAY WIDTH | 44.87 |
| ARRAY HEIGHT | 16.63 |
| RAIL LENGTH | 199.50 |
| MODULE LENGTH | 66.30 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 19.17 |
| PROJECTED PANEL HEIGHT | 10.11 |
| PROJECT ID | SOLAR, CAR, PORT, EXAMPLE, REVA |
| SITE ADDRESS | WC5F+97, CURLEW, WA, USA |
| MODULE WIDTH | 39.40 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 45.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 14601.16 |
| TOTAL WEIGHT | 2887.29 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/a961b266-f1e1-4e9d-b33f-36823eeca319.pdf |
|
| ID | 1188.00 |
| 3D Solar link |
