This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 42 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

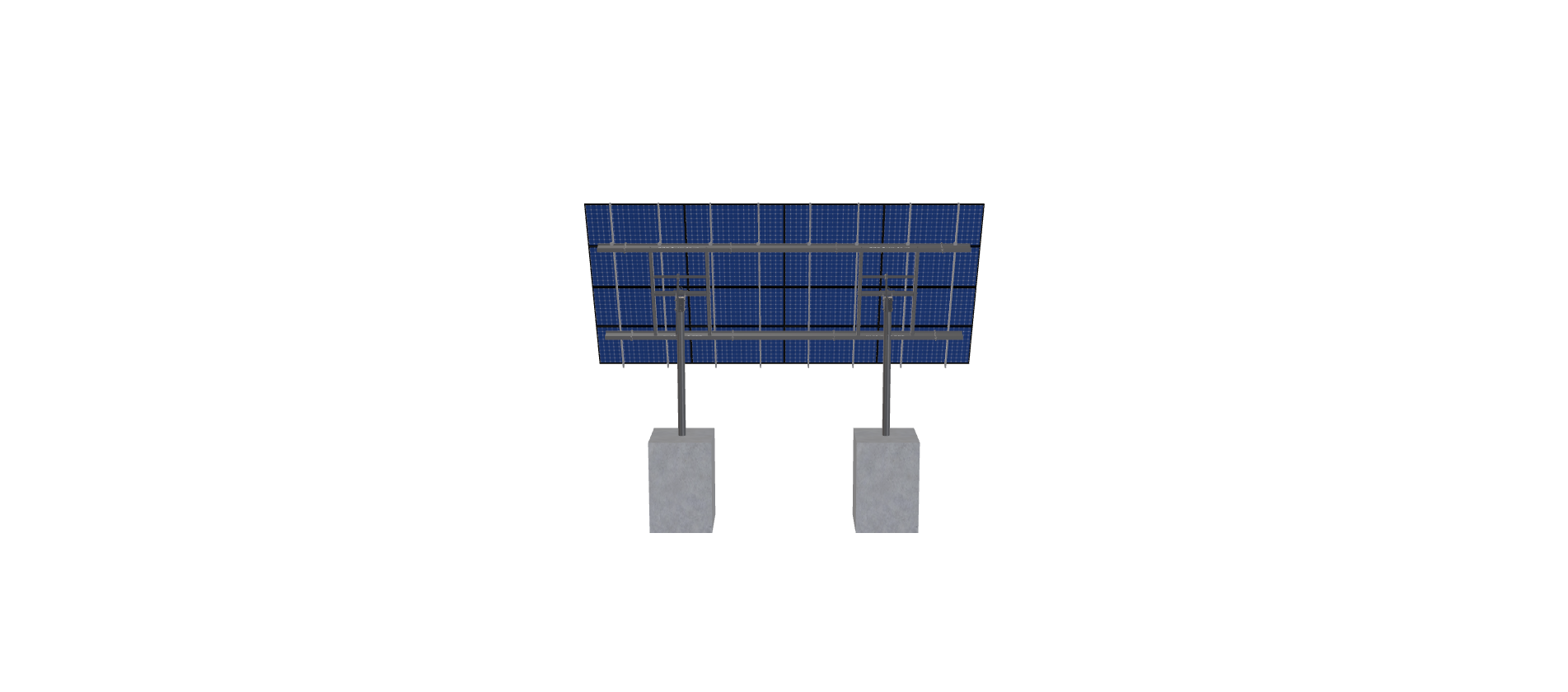

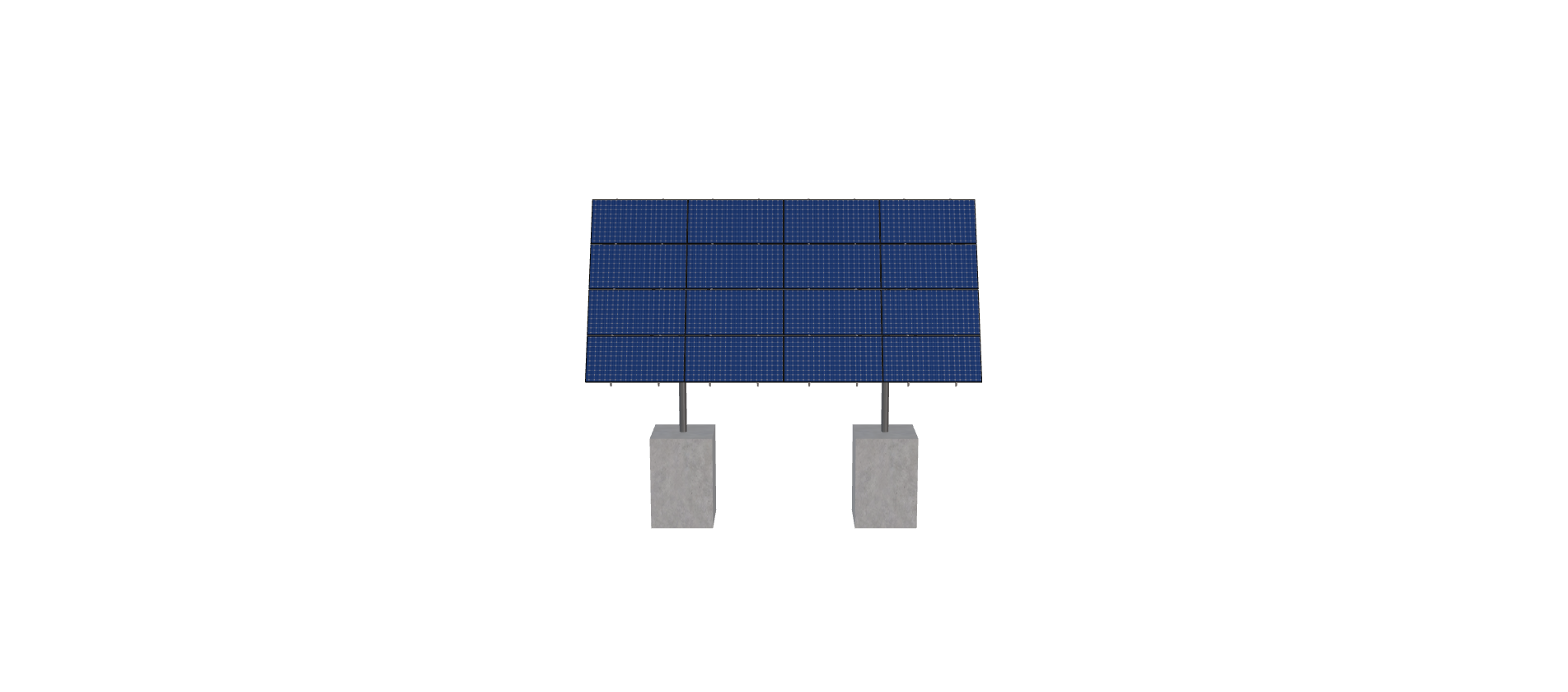

See 3D Model Here
Jim Evans
$7,174.83
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 42 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

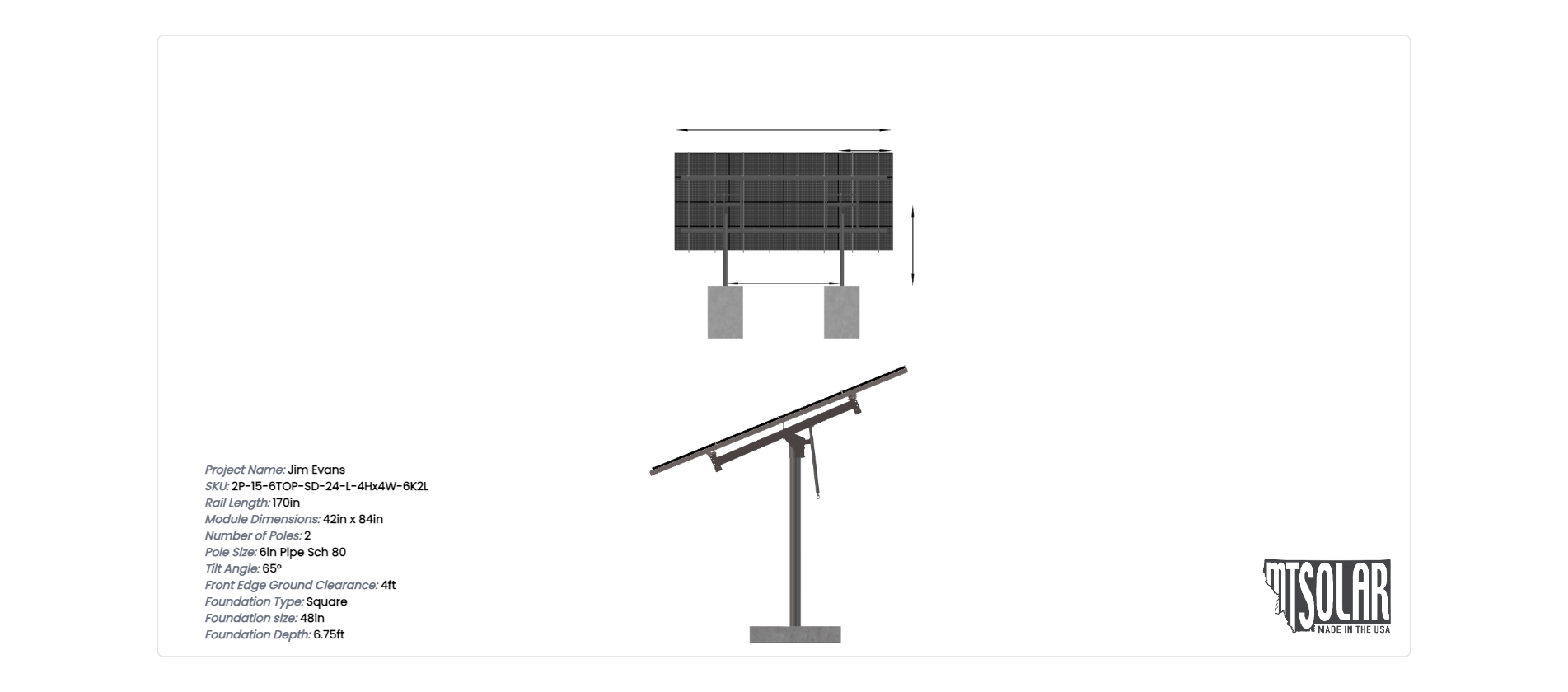

See 3D Model Here
Additional information
| Weight | 1191.38 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-24-L-4HX4W-6K2L |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 10.42 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 318.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 401.39 |
| ARRAY WIDTH | 28.33 |
| ARRAY HEIGHT | 14.17 |
| RAIL LENGTH | 170.00 |
| MODULE LENGTH | 84.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 26.50 |
| GROUND TO TOP | 16.76 |
| PROJECTED PANEL HEIGHT | 12.69 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | JIM, EVANS |
| SITE ADDRESS | 1999, CYPRUS, CT, NORTH, POLE, AK, 99705, USA |
| MODULE WIDTH | 42.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 6833.17 |
| TOTAL WEIGHT | 1191.38 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/9774122d-a0bf-4da0-b541-d40c263adff2.pdf |
|
| ID | 2434.00 |
| 3D Solar link |
