This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 13 wide by 3 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

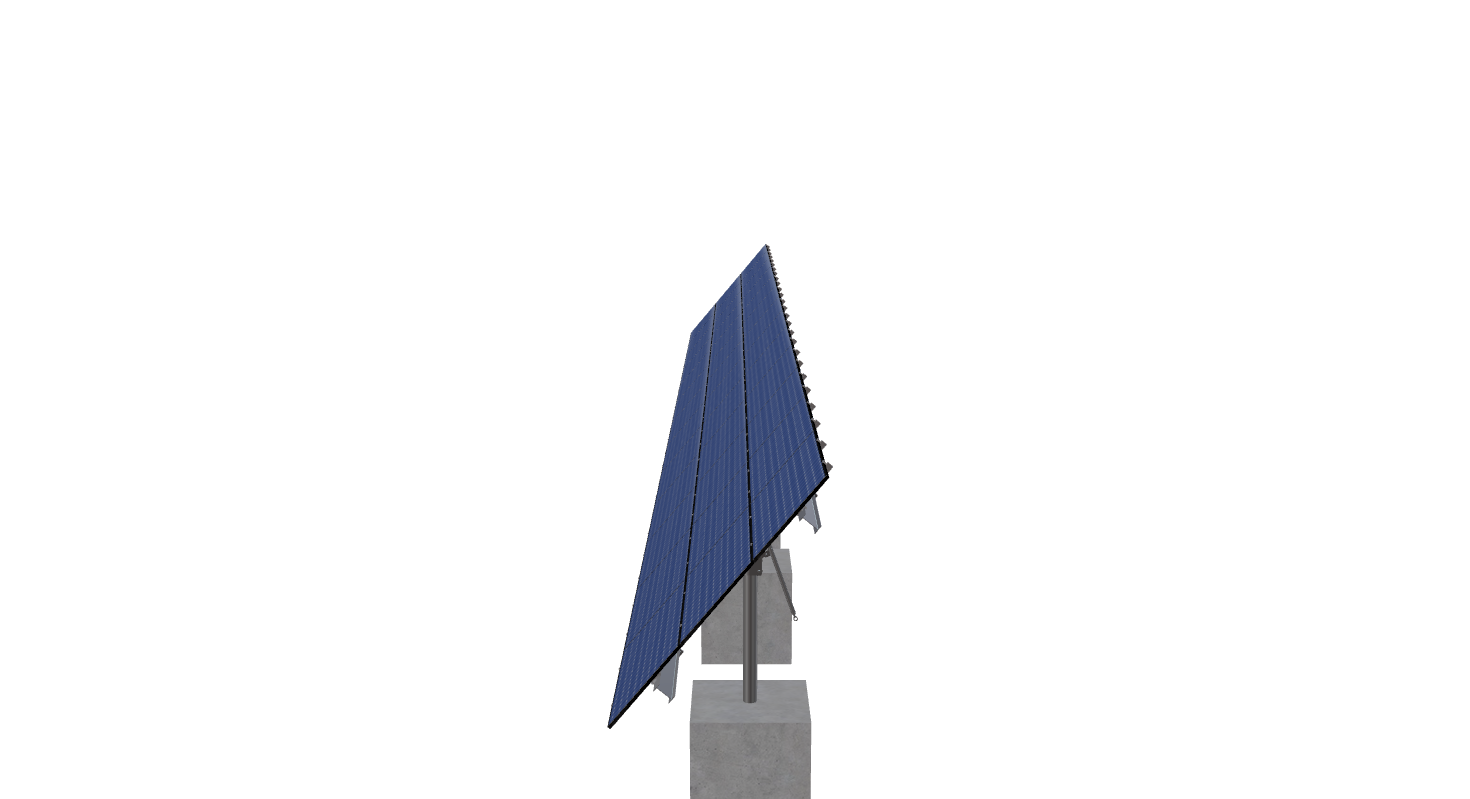

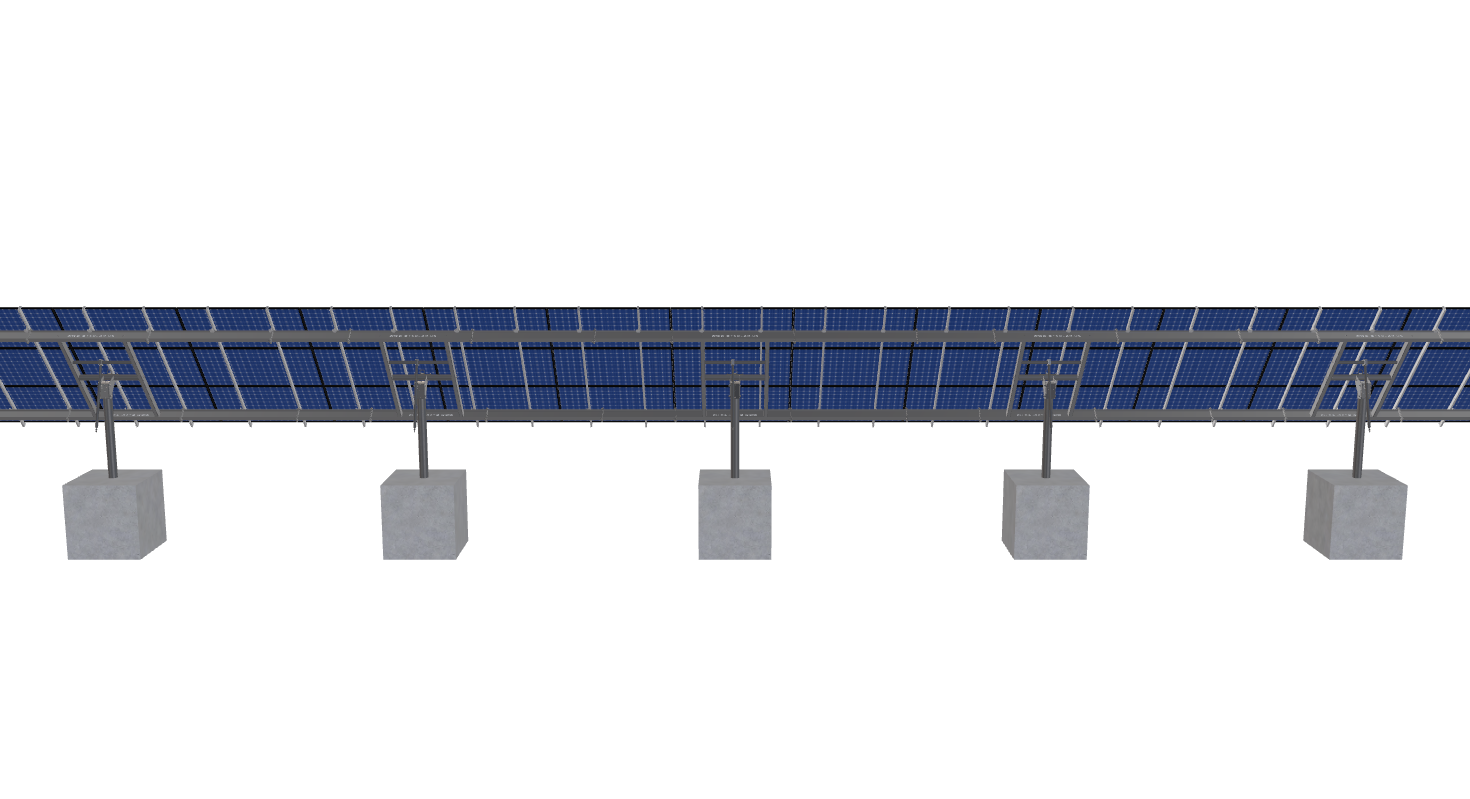

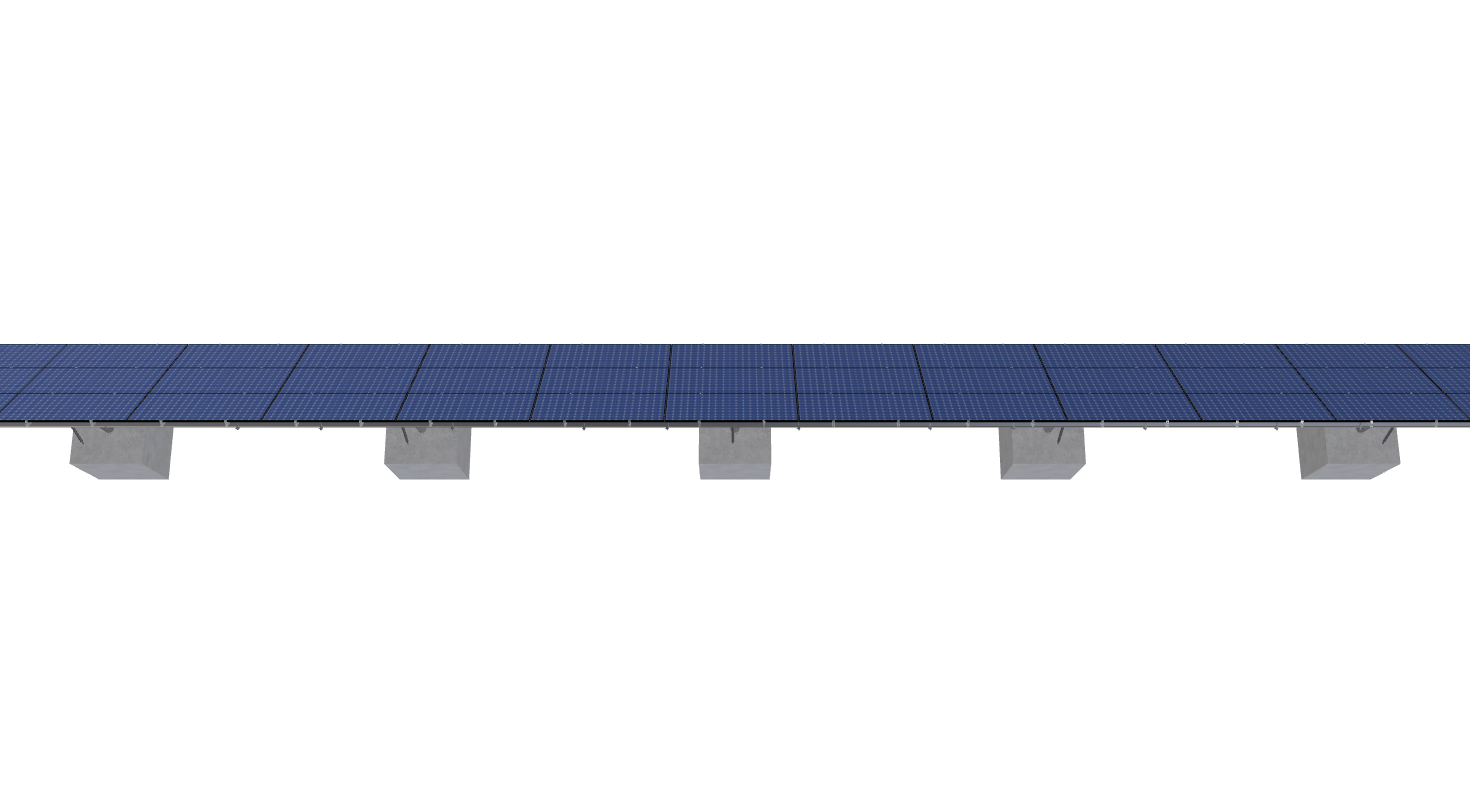

See 3D Model Here
KEN WAAG
$20,889.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 13 wide by 3 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3622.96 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-SD-57-L-3HX13W-5C8H |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 6.32 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 1152.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1108.97 |
| ARRAY WIDTH | 98.25 |
| ARRAY HEIGHT | 11.29 |
| RAIL LENGTH | 135.45 |
| MODULE LENGTH | 89.69 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 96.00 |
| GROUND TO TOP | 10.60 |
| PROJECTED PANEL HEIGHT | 8.55 |
| PROJECT ID | KEN, WAAG |
| SITE ADDRESS | 321, MONTE, CRISTO, MINE, RD, BRECKENRIDGE, CO, 80424, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 19894.61 |
| TOTAL WEIGHT | 3622.96 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/2bd3d804-b892-45a6-b3d0-4f1aa874c42a.pdf |
|
| ID | 4597.00 |
| 3D Solar link |
