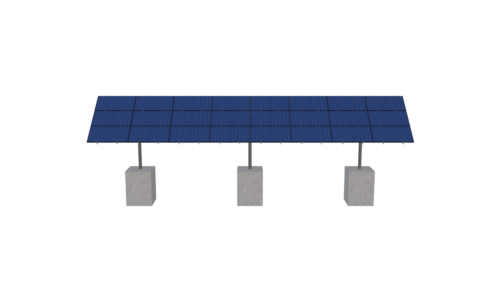

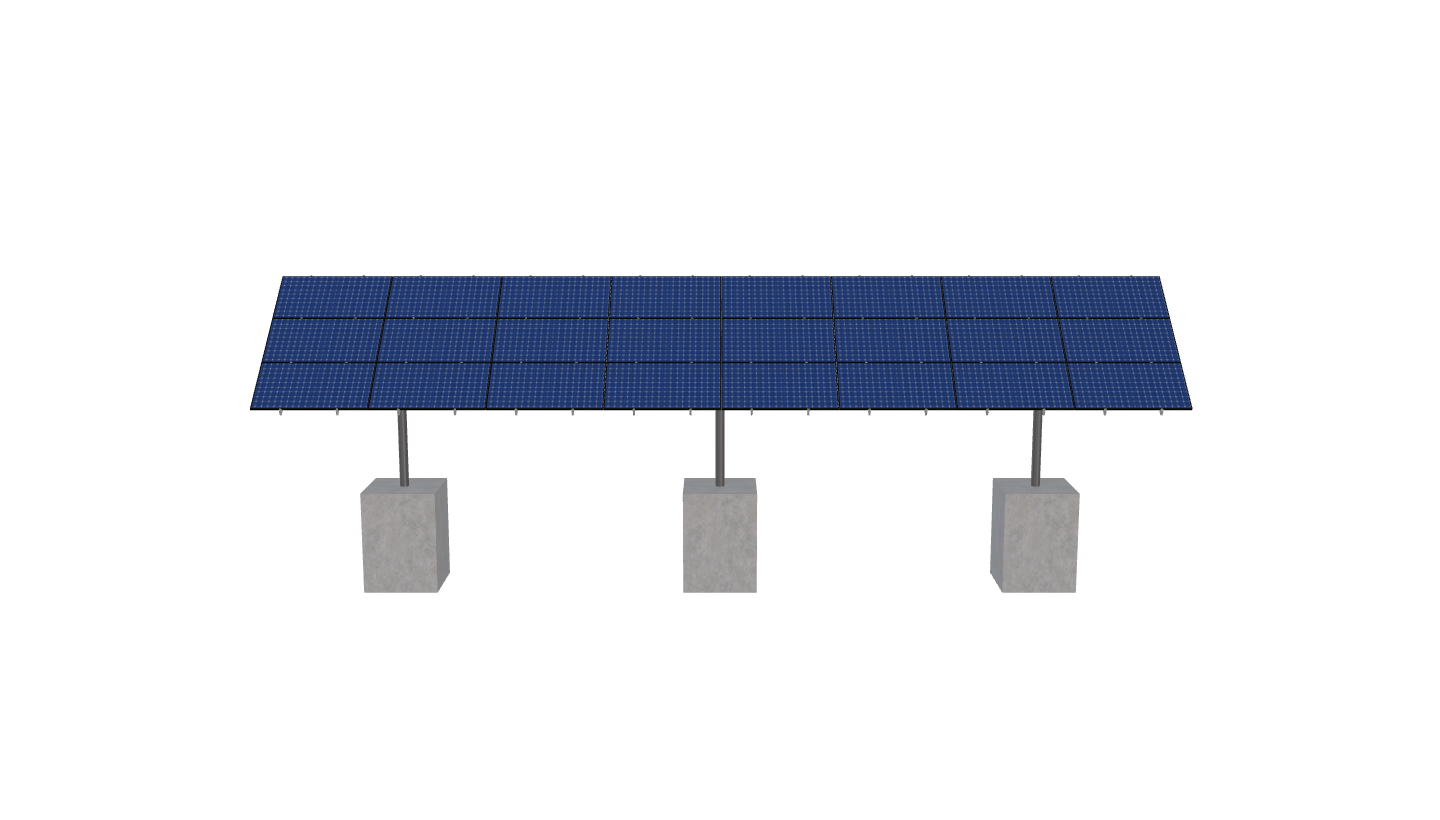

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.6 inches by 44.6 inches and an array layout of 8 wide by 3 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
00074 Mackoy
$15,455.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.6 inches by 44.6 inches and an array layout of 8 wide by 3 high.
This mount fits on 3 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2924.21 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-10TOP-XD-45-L-3HX8W-STRUTS-HI9G |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.62 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 628.39 |
| ARRAY WIDTH | 55.73 |
| ARRAY HEIGHT | 11.28 |
| RAIL LENGTH | 135.30 |
| MODULE LENGTH | 82.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 12.21 |
| PROJECTED PANEL HEIGHT | 7.17 |
| PROJECT ID | 00074, MACKOY |
| SITE ADDRESS | P553+7X, HAMPDEN, ME, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 15455.28 |
| TOTAL WEIGHT | 2924.21 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/af705662-2450-4baa-8740-3eba1ee098a7.pdf |
|
| ID | 3711.00 |
| 3D Solar link |
