This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 40.9 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

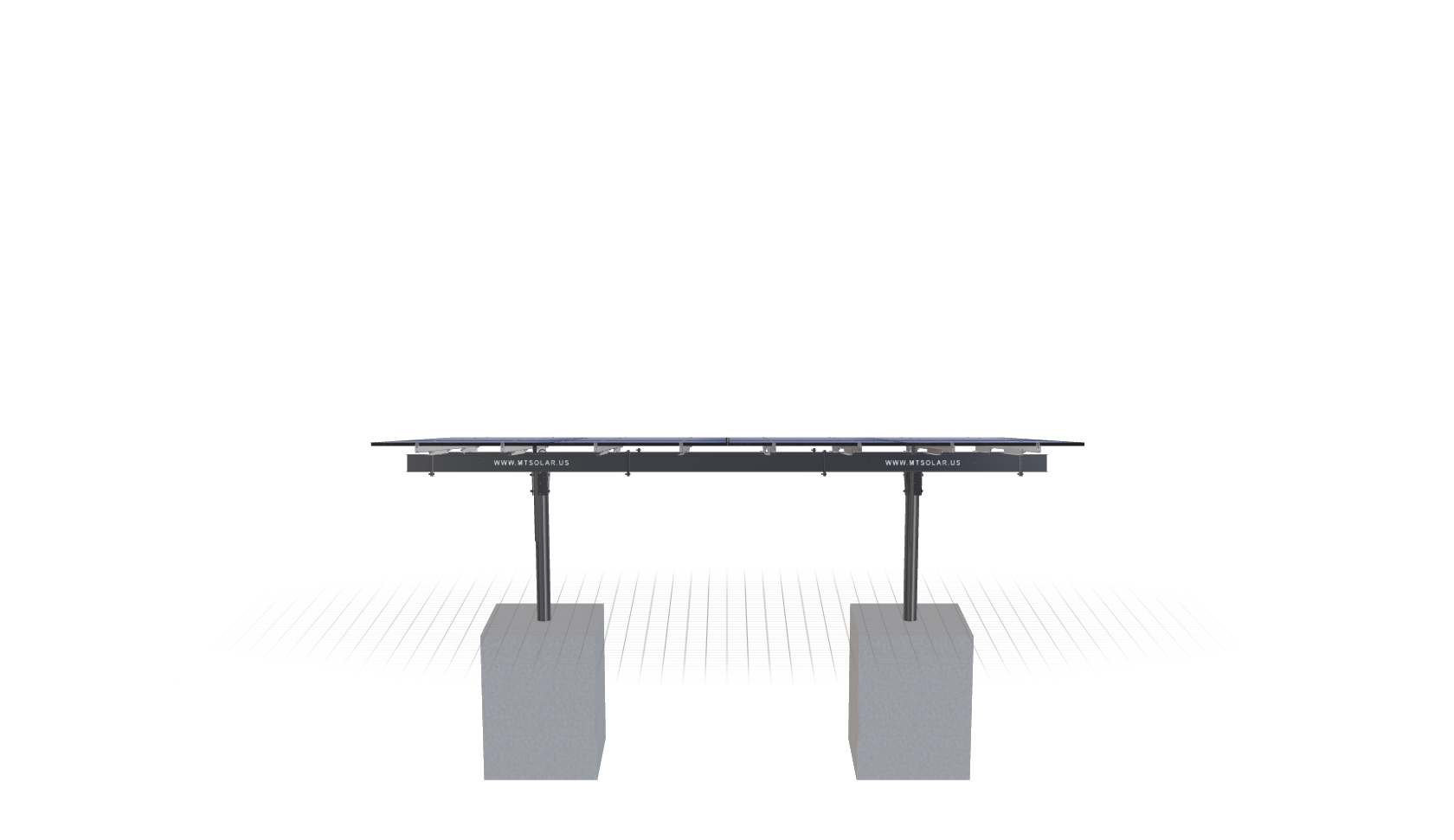

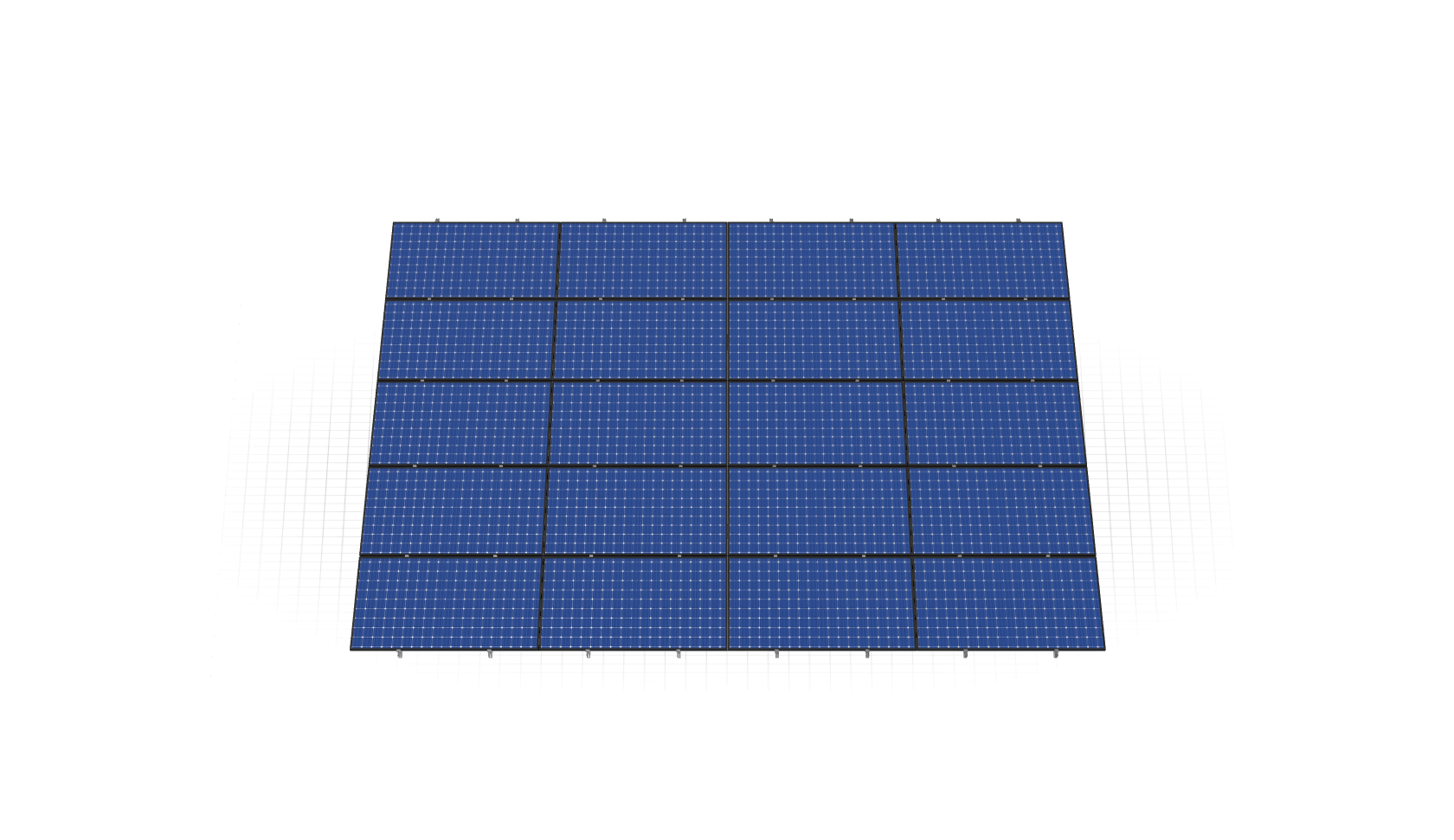

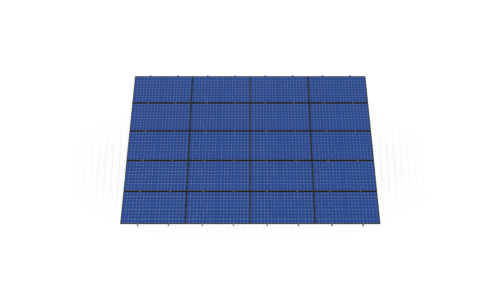

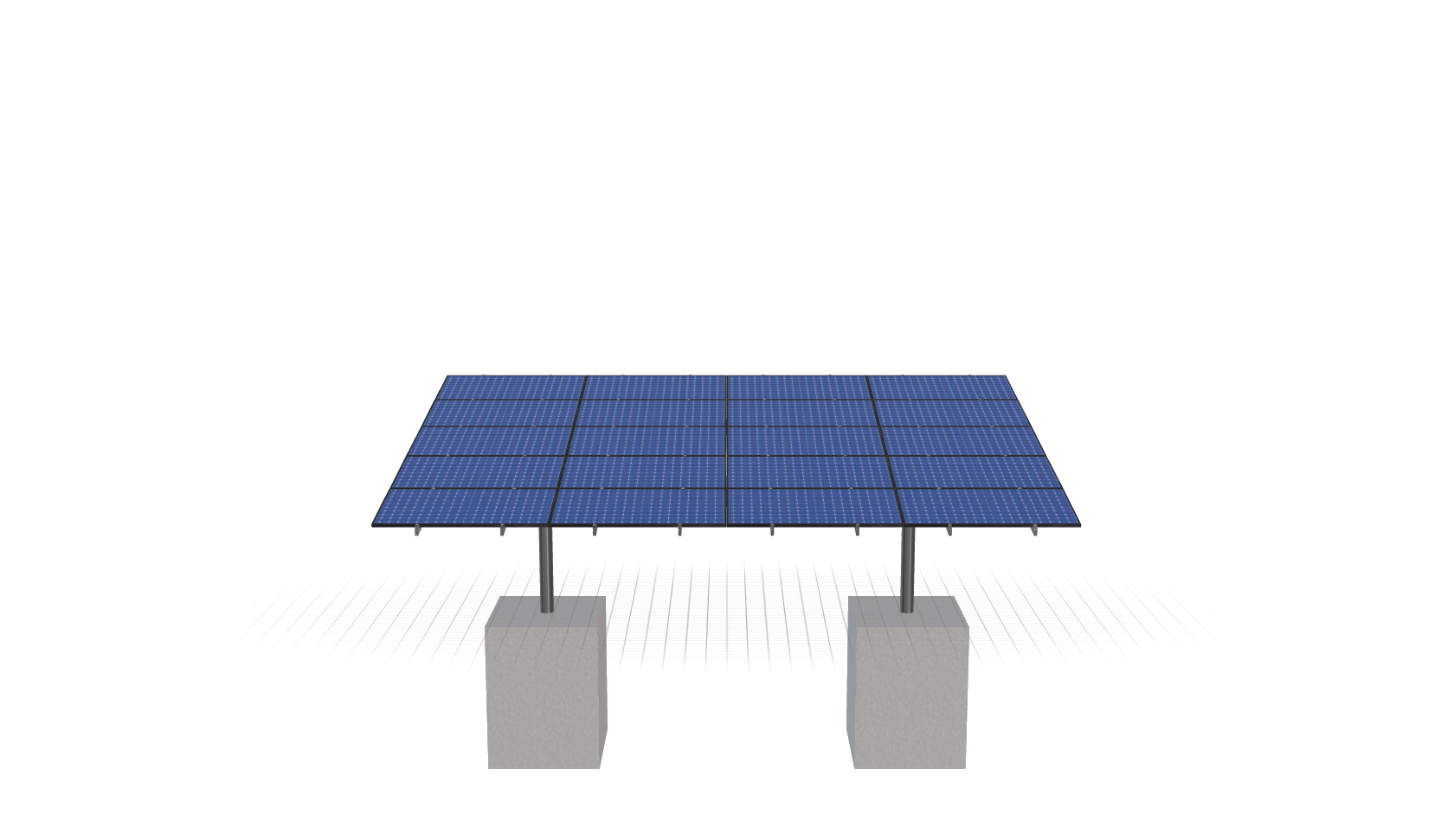

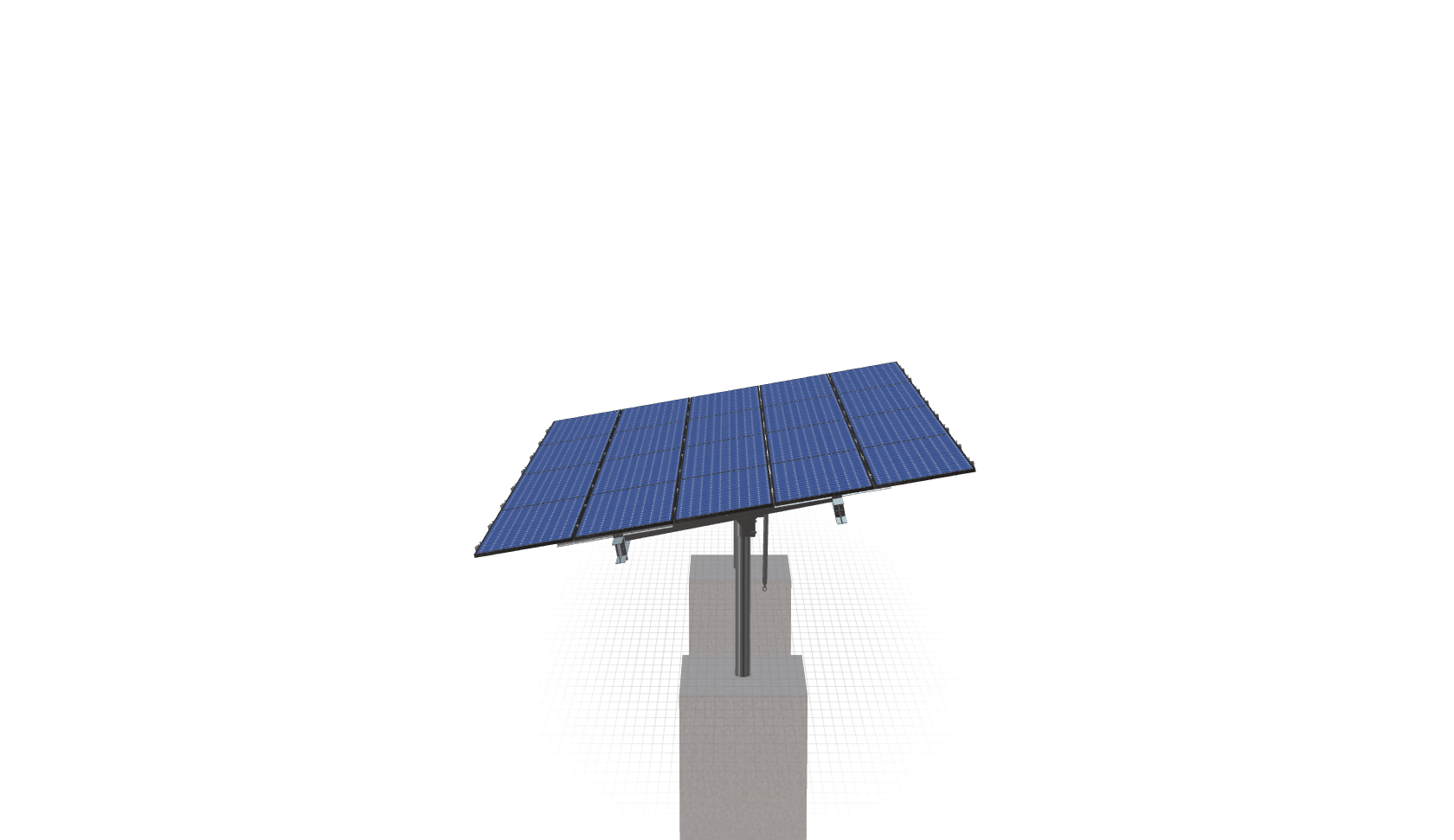

See 3D Model Here
10692CountyRoad769SolarC
$9,770.38
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 40.9 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1808.86 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-XD-12-L-5HX4W-A524 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 6.50 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 441.02 |
| ARRAY WIDTH | 25.57 |
| ARRAY HEIGHT | 17.25 |
| RAIL LENGTH | 207.00 |
| MODULE LENGTH | 75.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 7.98 |
| PROJECTED PANEL HEIGHT | 2.96 |
| WIND SPEED OVERRIDE | 160.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 10692COUNTYROAD769SOLARC |
| SITE ADDRESS | 10692, COUNTY, RD, 769, ARCADIA, FL, 34269, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 9305.12 |
| TOTAL WEIGHT | 1808.86 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/1e169f4a-93d9-41fb-9314-12d60767eb01.pdf |
|
| ID | 1428.00 |
| 3D Solar link |
