This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

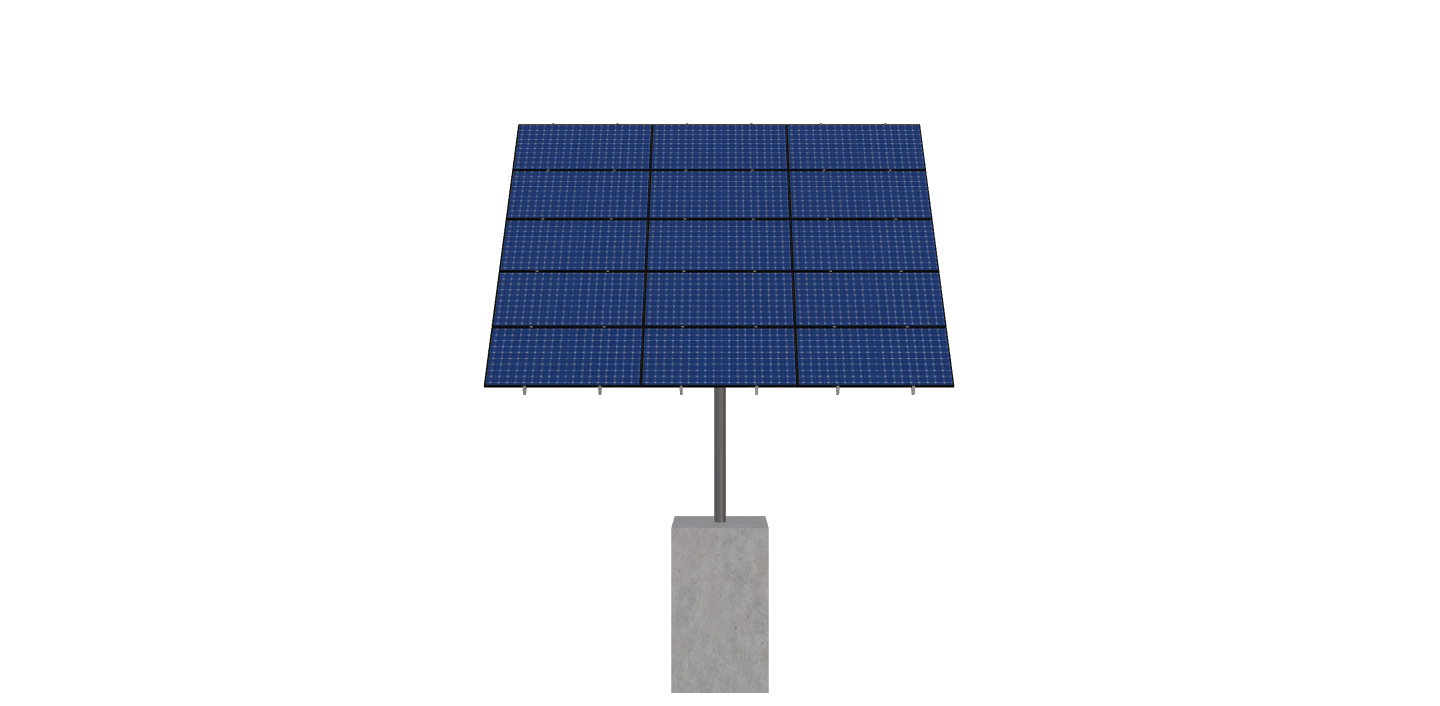

See 3D Model Here
1107 COUNTY RD COMO EXD 52
$6,273.74
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1208.8700000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-XD-72-L-5HX3W-3IK8 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.79 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 52.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 359.57 |
| ARRAY WIDTH | 20.86 |
| ARRAY HEIGHT | 17.24 |
| RAIL LENGTH | 206.85 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 19.50 |
| PROJECTED PANEL HEIGHT | 13.42 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 83.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 1107, COUNTY, RD, COMO, EXD, 52 |
| SITE ADDRESS | 1107, CO, RD, 17, COMO, CO, 80432, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 5974.99 |
| TOTAL WEIGHT | 1208.87 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/802aef90-95a5-441b-8880-eb338cad7ba1.pdf |
|
| ID | 1773.00 |
| CAD URL | |
| 3D Solar link |
