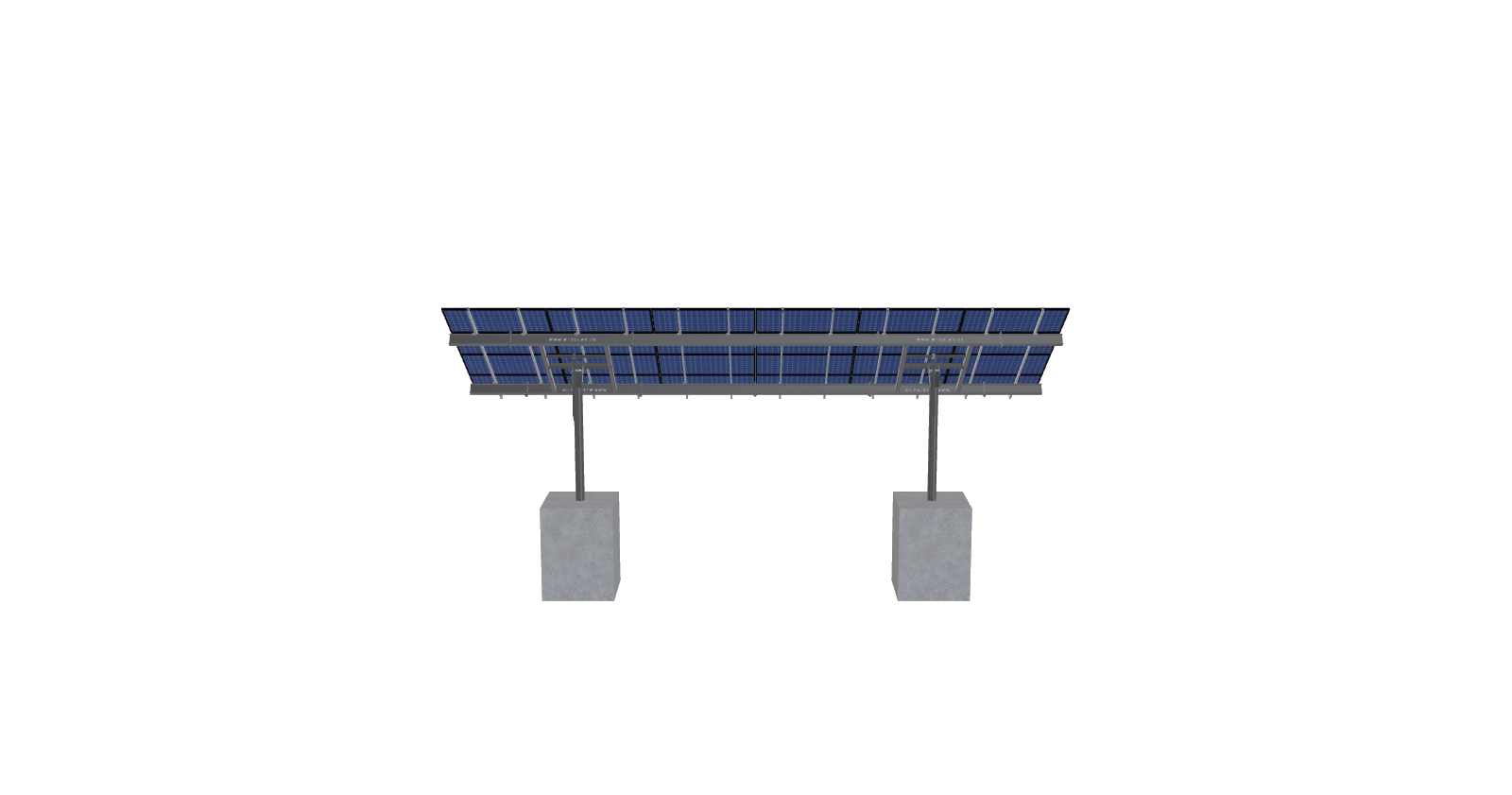

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 39.3 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
11958 CU A1
$10,065.77
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 39.3 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1767.5 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-8TOP-HD-45-L-4HX6W-8KFD |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 8.61 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 33.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 502.81 |
| ARRAY WIDTH | 37.90 |
| ARRAY HEIGHT | 13.27 |
| RAIL LENGTH | 159.20 |
| MODULE LENGTH | 74.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 12.18 |
| PROJECTED PANEL HEIGHT | 7.13 |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 36.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 11958, CU, A1 |
| SITE ADDRESS | 8800, POISON, SPIDER, RD, CASPER, WY, 82604, USA |
| MODULE WIDTH | 39.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 9586.45 |
| TOTAL WEIGHT | 1767.50 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/165a54e3-1f64-4c66-91a6-4b7eb2e7fcf5.pdf |
|
| ID | 2742.00 |
| 3D Solar link |
