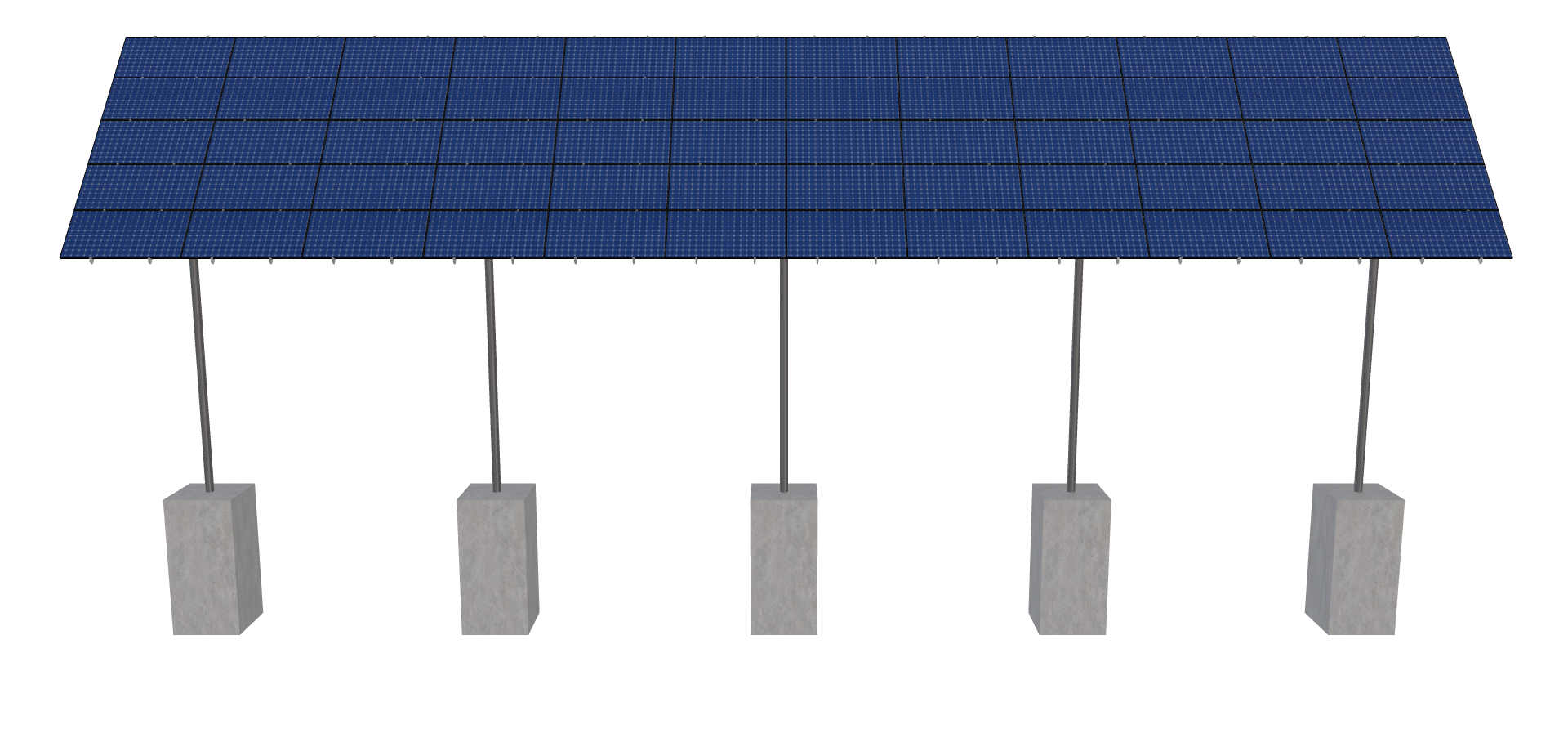

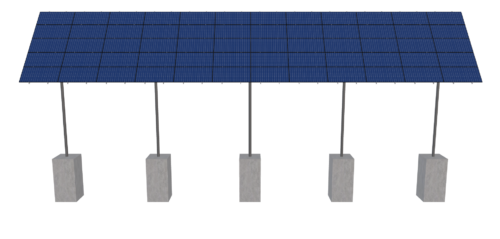

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.73 inches by 44.65 inches and an array layout of 12 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
12241_E_3749_N-5-pole-shorter
$25,566.67
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.73 inches by 44.65 inches and an array layout of 12 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5130.99 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-10TOP-HD-24-L-5HX12W-E4LK |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 23.21 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 9.50 |

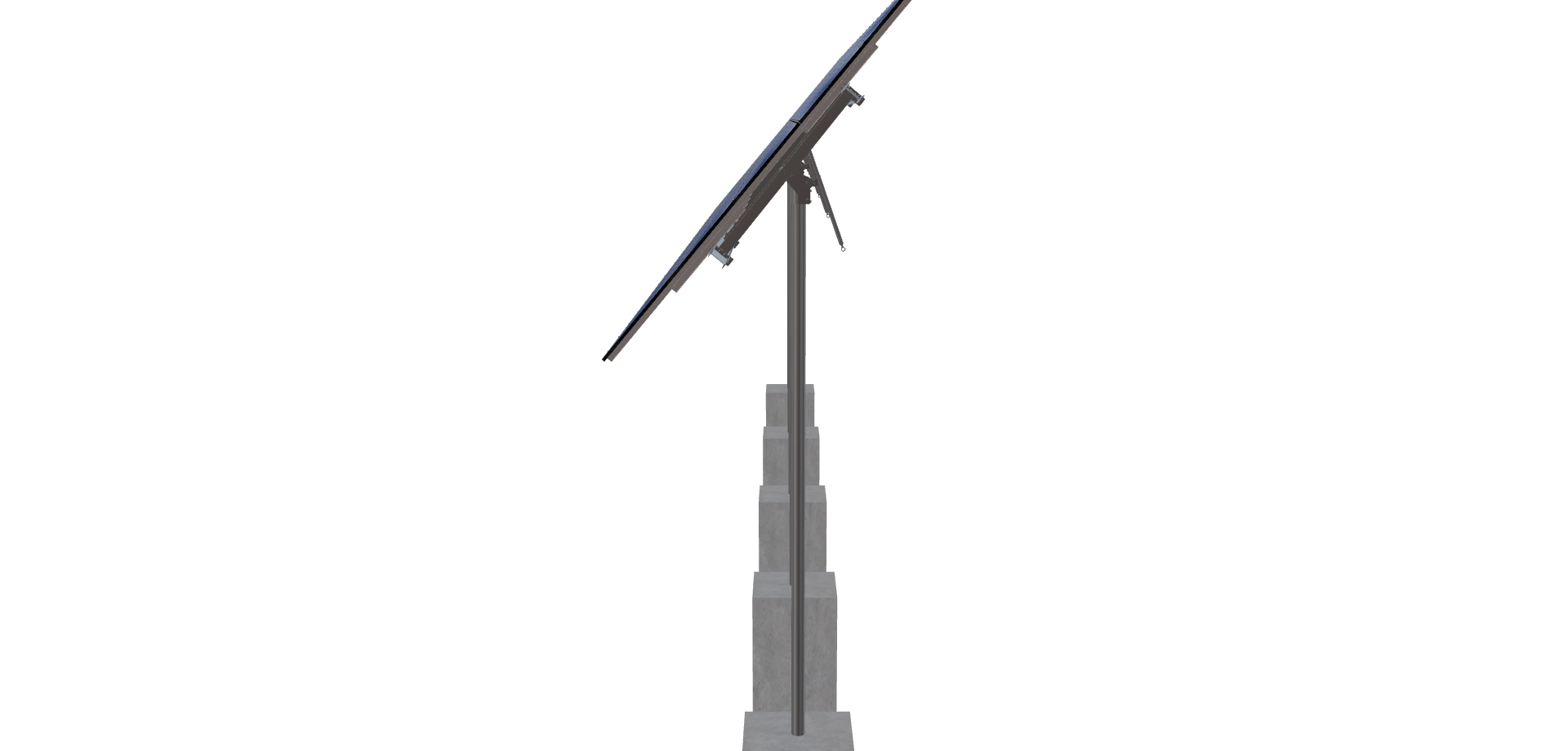

| TILT ANGLE | 50.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 16.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1706.86 |
| ARRAY WIDTH | 90.73 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 89.73 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 30.33 |
| PROJECTED PANEL HEIGHT | 14.25 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | 12241, E, 3749, N-5-POLE-SHORTER |
| SITE ADDRESS | NEWDALE, ID, 83436, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 25566.67 |
| TOTAL WEIGHT | 5130.99 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/db0961c4-bd68-4651-bb6f-cc3ba918320d.pdf |
|
| ID | 7864.00 |
| 3D Solar link |
