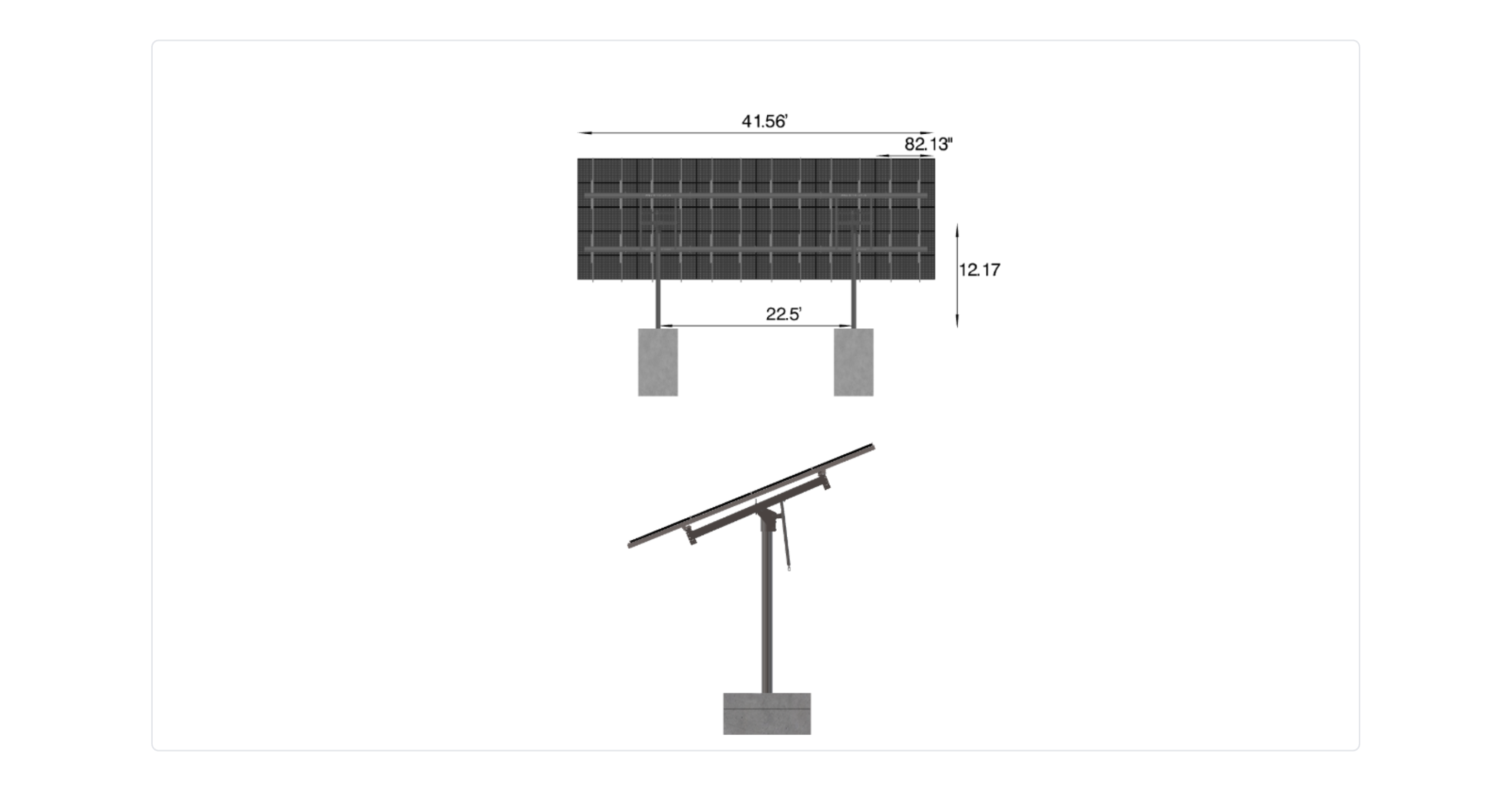

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

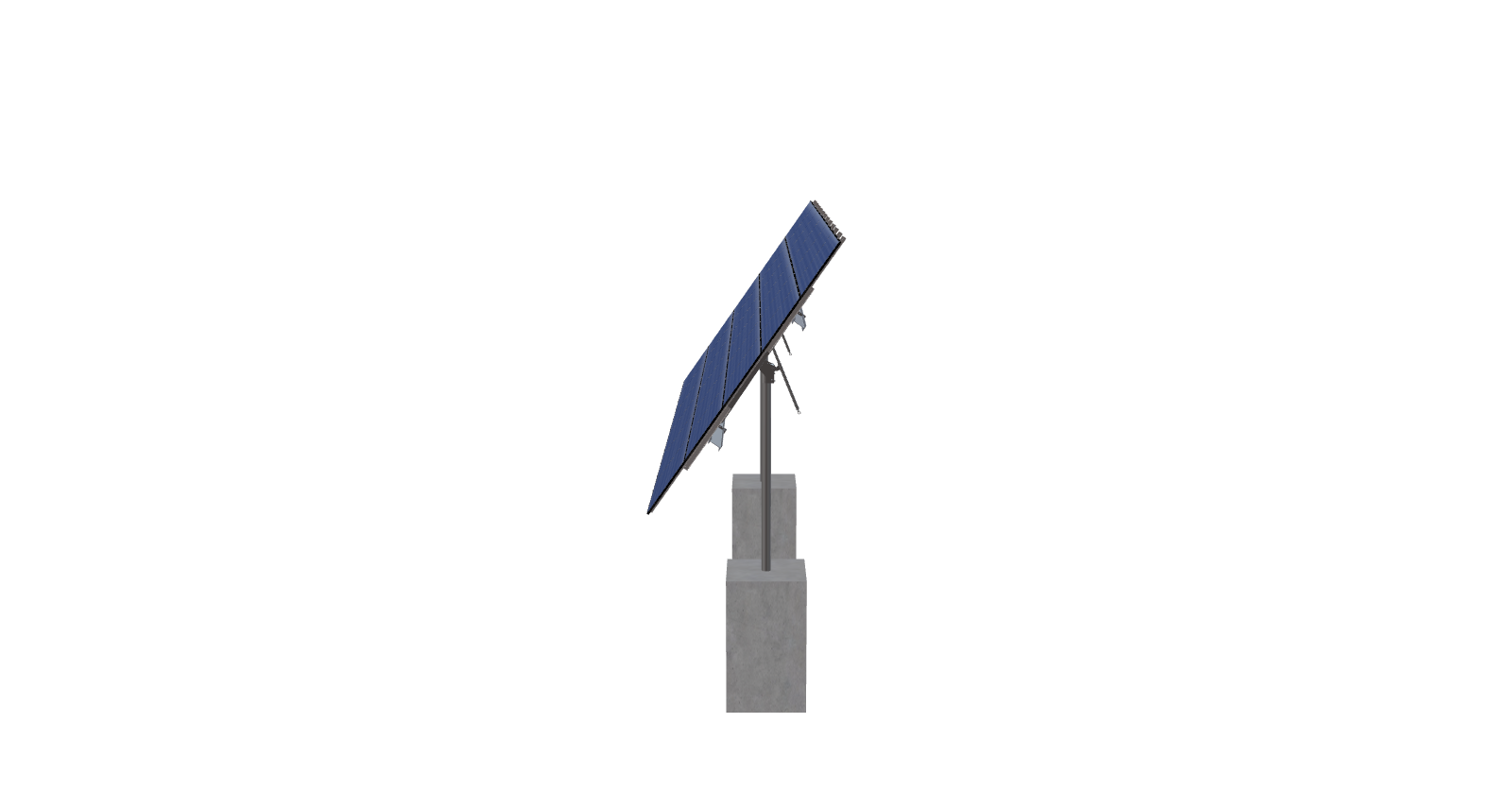

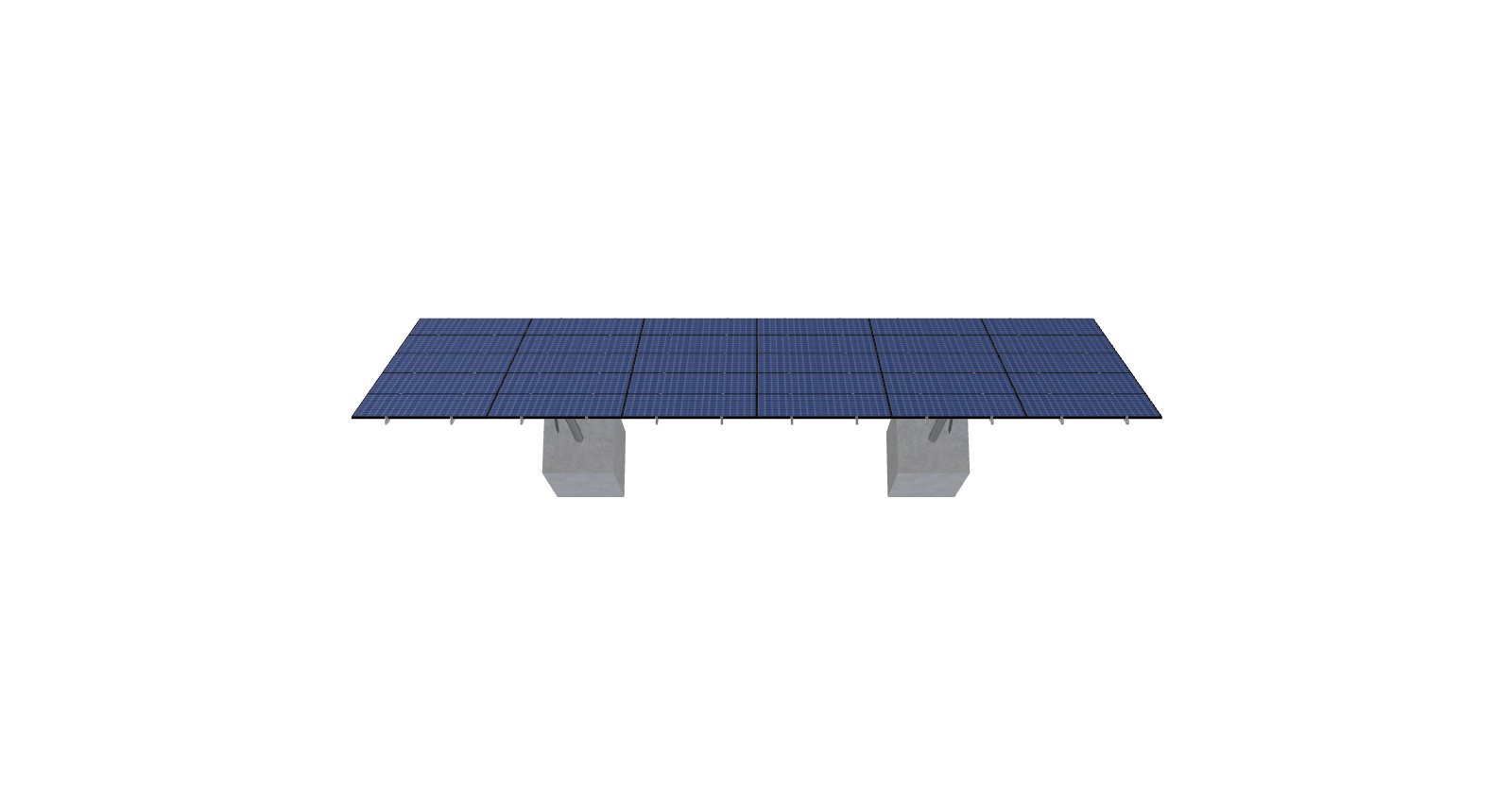

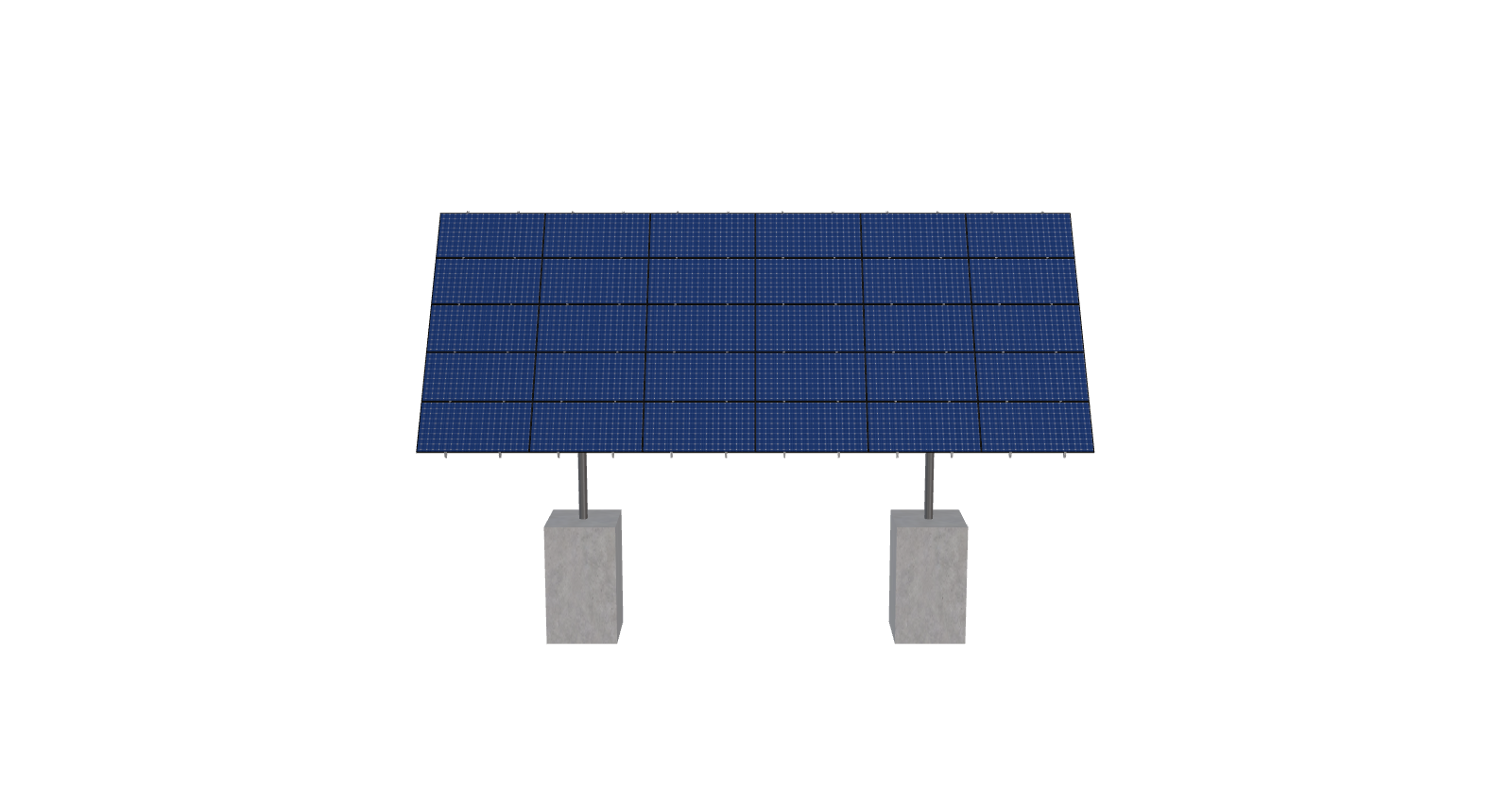

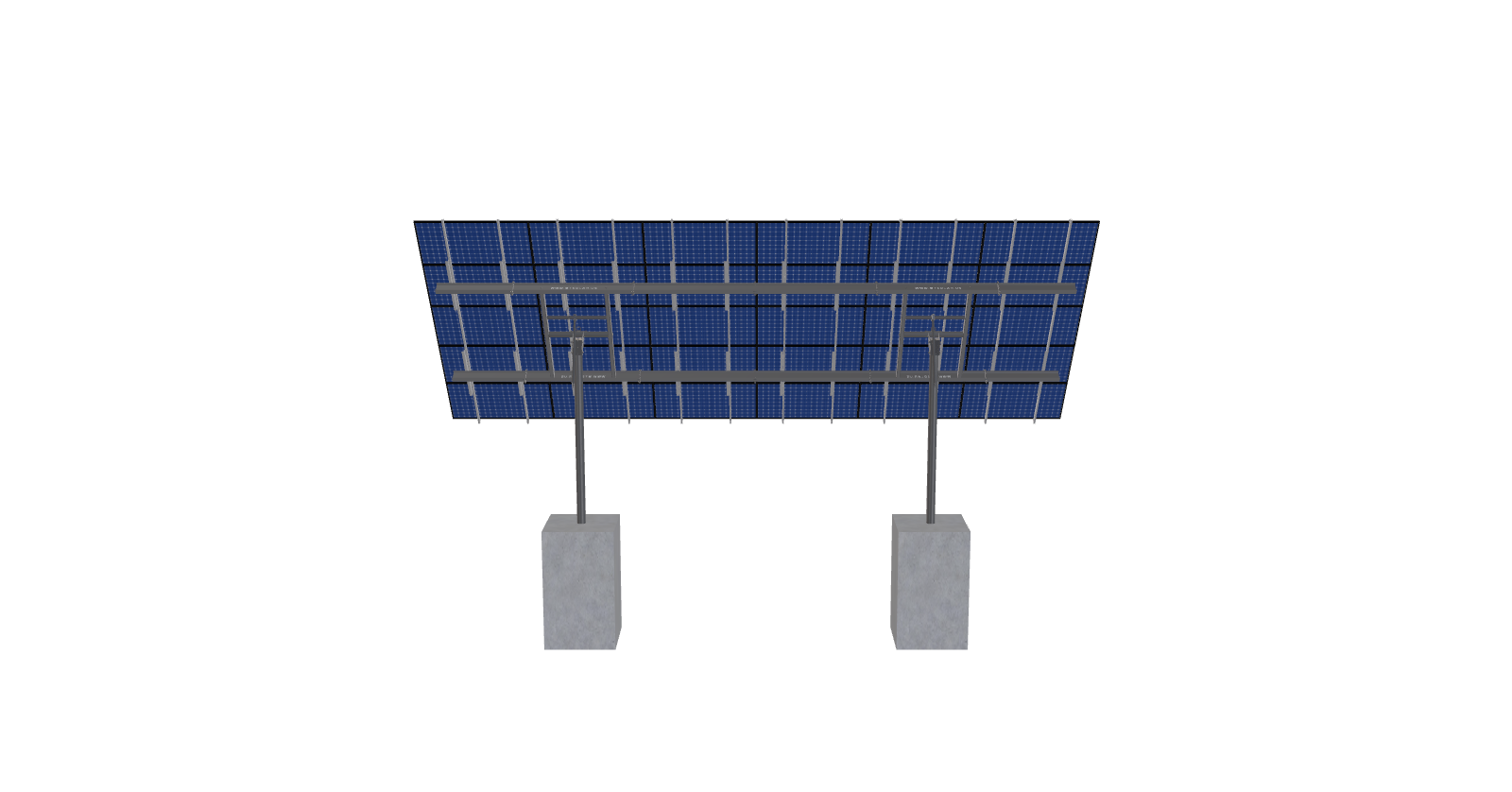

See 3D Model Here
12309-REV V2
$12,141.52
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2463.3399999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-10TOP-XD-57-L-5HX6W-STRUTS-2IHC |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.17 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 727.39 |
| ARRAY WIDTH | 41.56 |
| ARRAY HEIGHT | 17.50 |
| RAIL LENGTH | 210.00 |
| MODULE LENGTH | 82.13 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 19.25 |
| PROJECTED PANEL HEIGHT | 14.16 |
| PROJECT ID | 12309-REV, V2 |
| SITE ADDRESS | BRISTOL, HEAD, DR, COLORADO, 81130, USA |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 163.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 12141.52 |
| TOTAL WEIGHT | 2463.34 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/c77d03f1-2b8f-4e66-baa5-6103320e574d.pdf |
|
| ID | 6225.00 |
| 3D Solar link |
