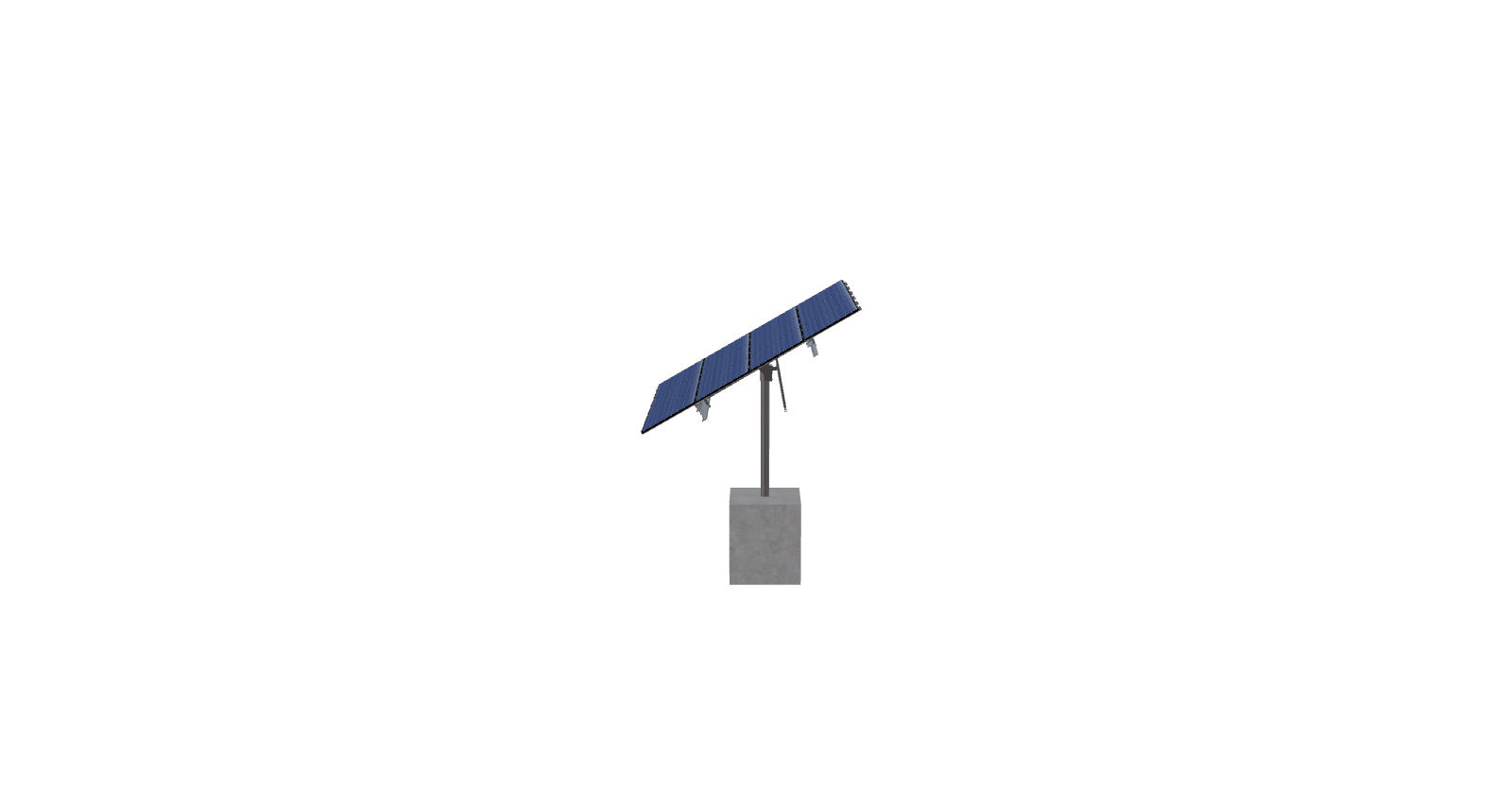

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-XD-57-L-4Hx3W-B186 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 926.21 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-XD-57-L-4HX3W-B186

DUTY SIZE

XD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

8.76

WING SPAN

57.00

MAX FOUNDATION DEPTH

5.25

TILT ANGLE

30.00

CANTILEVER

204.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

258.57

ARRAY WIDTH

17.20

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

12.47

PROJECTED PANEL HEIGHT

7.43

PROJECT ID

14-9, -0701240CU1

SITE ADDRESS

5676, KOKANEE, MEADOWS, WY, RD, WELLPINIT, WA, 99040, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

WIND SPEED OVERRIDE

95.00

SNOW LOAD OVERRIDE

65.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

5047.25

TOTAL WEIGHT

926.21

TOTAL PALLETS

1.00
