This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80.3 inches by 39.4 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
14220w array-19ft-RevA-JB
$16,372.49
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80.3 inches by 39.4 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

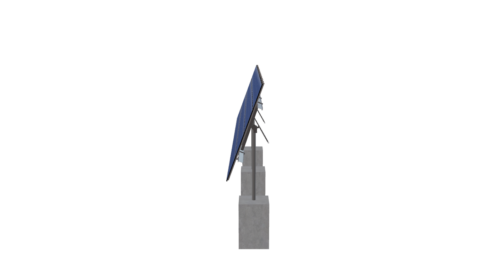

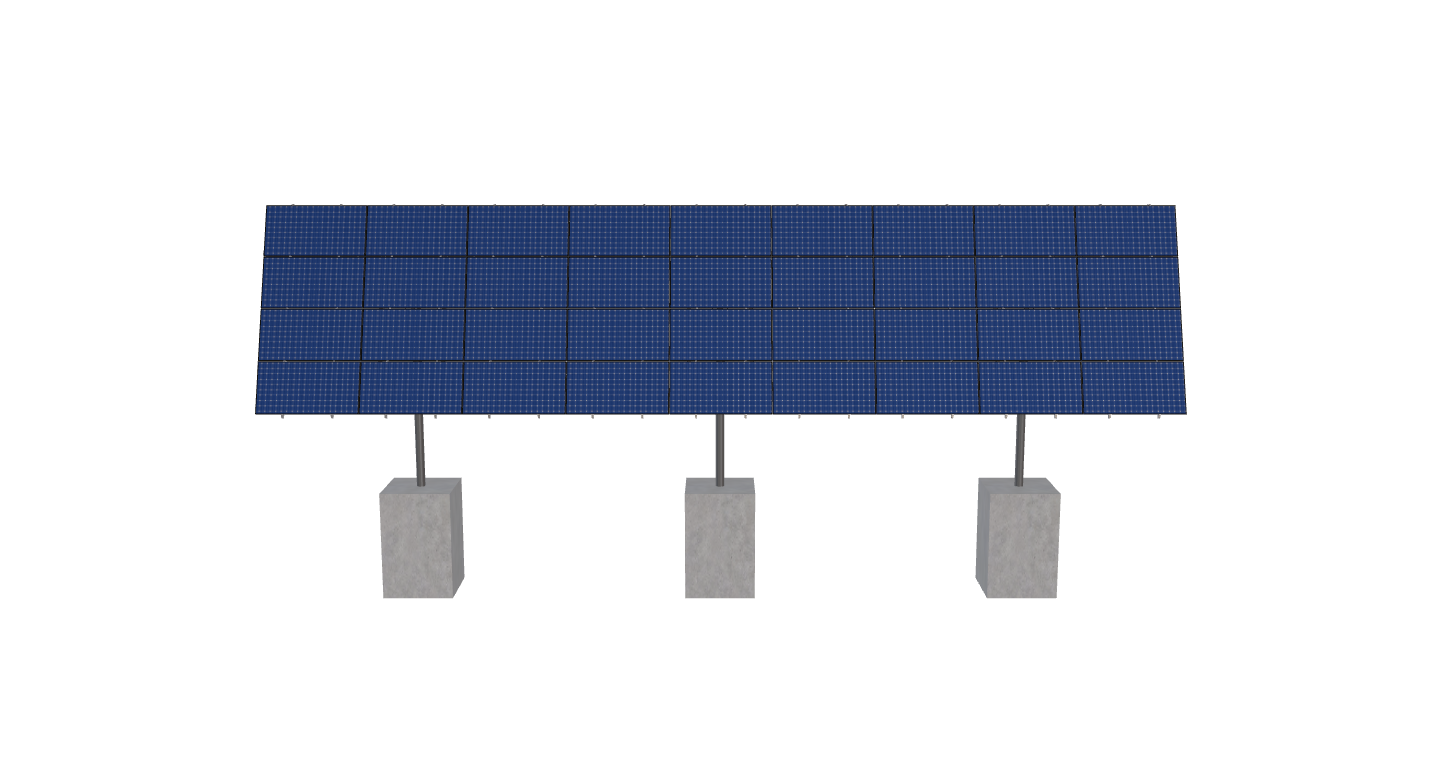

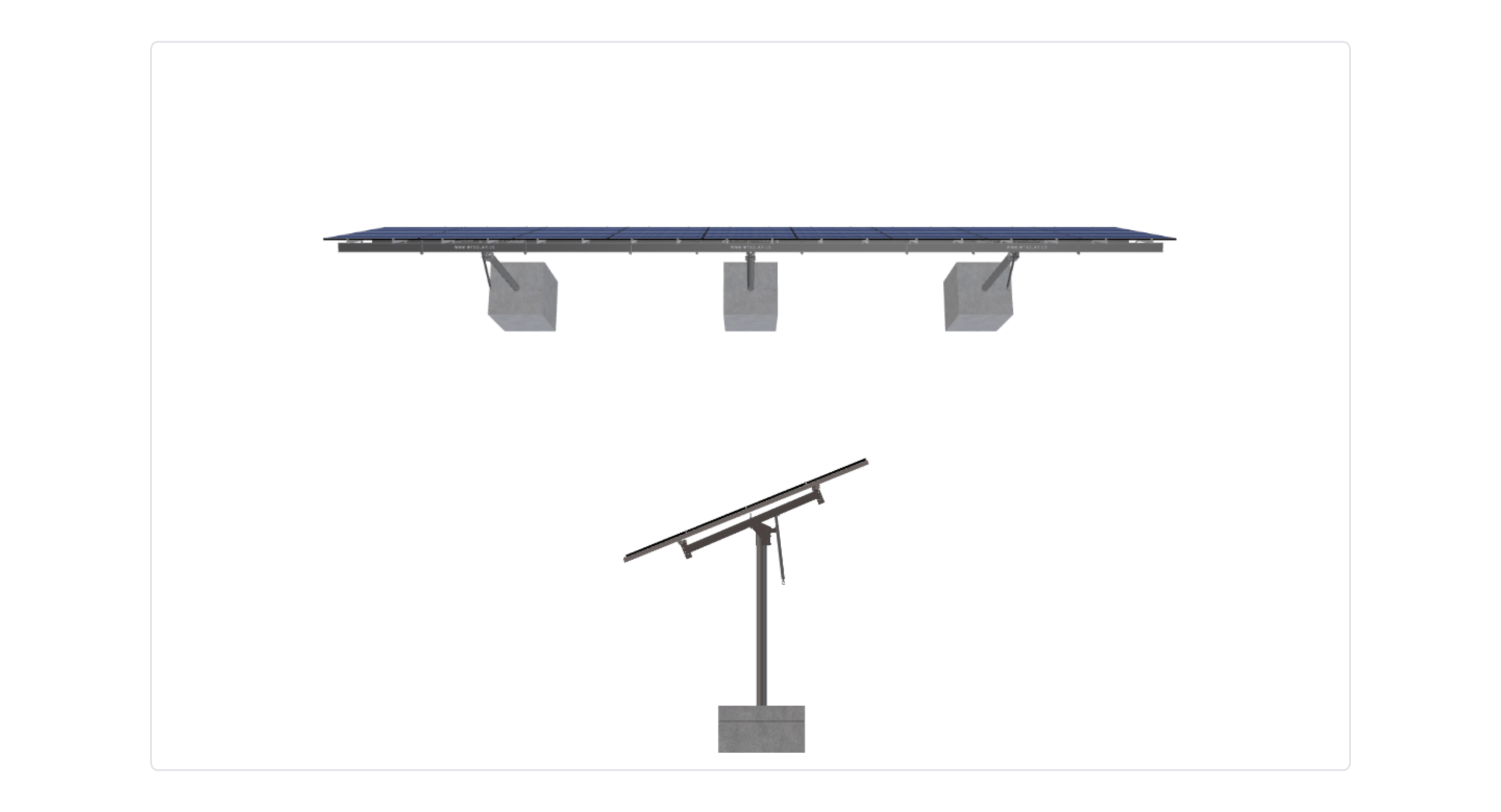

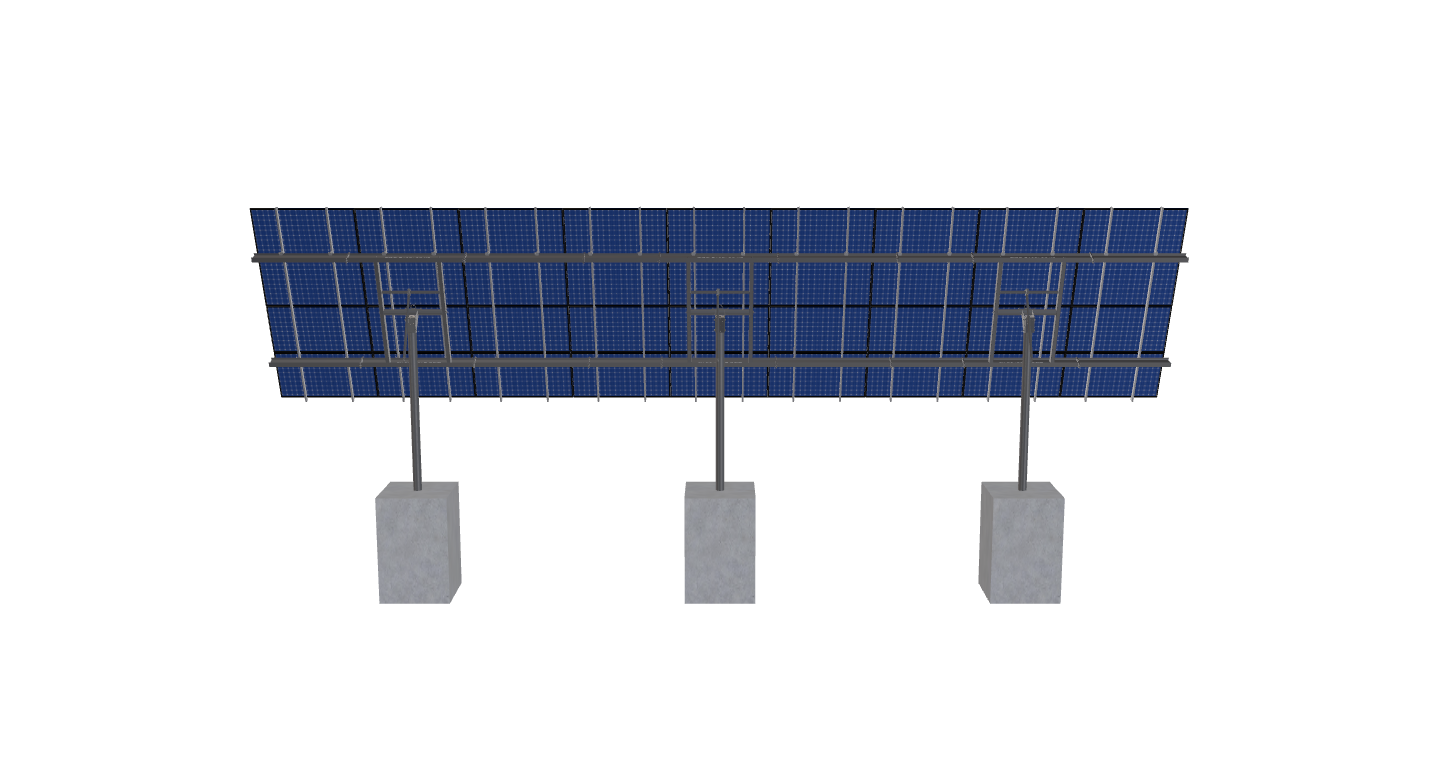

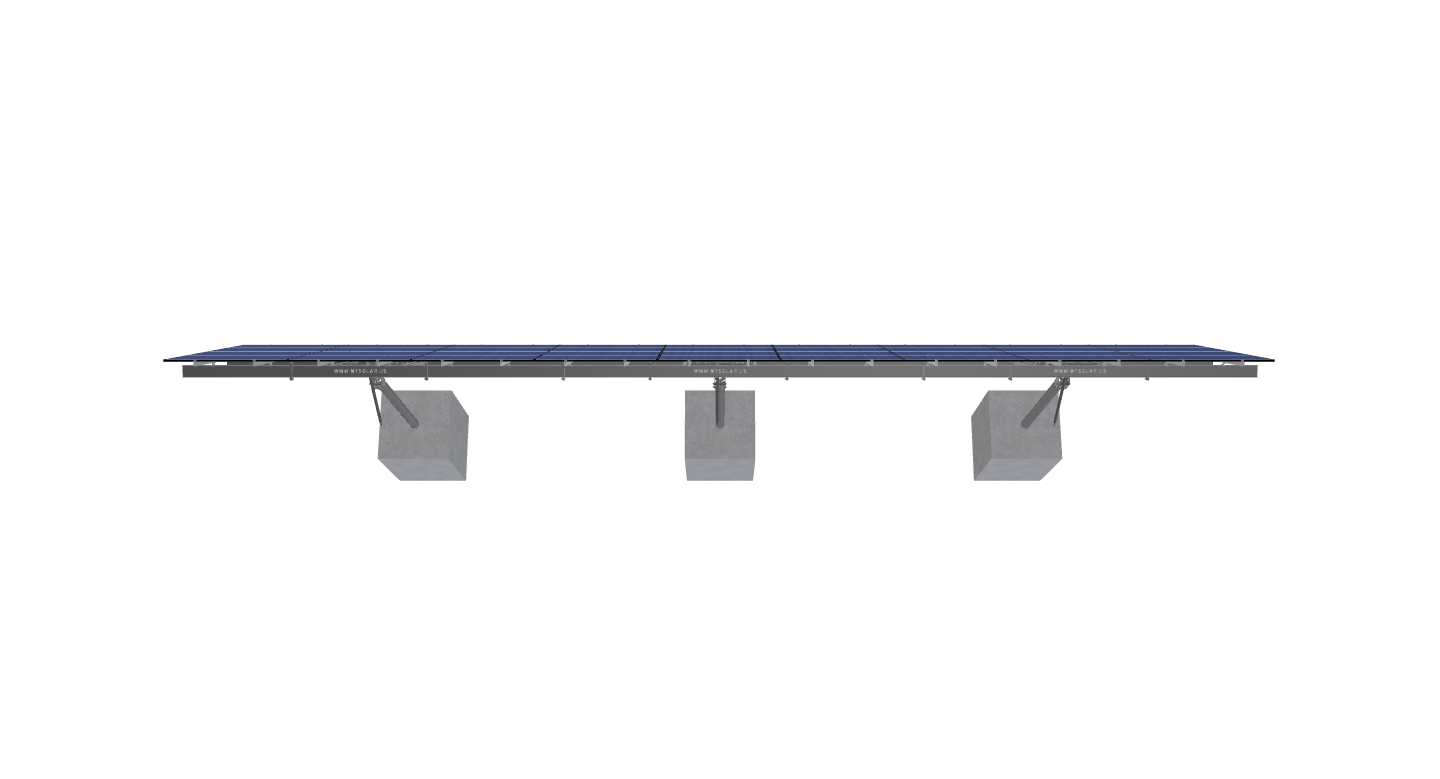

See 3D Model Here
Additional information
| Weight | 3082.83 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-XD-72-L-4HX9W-STRUTS-6338 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.61 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 70.00 |
| CANTILEVER | 708.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 833.45 |
| ARRAY WIDTH | 59.25 |
| ARRAY HEIGHT | 14.07 |
| RAIL LENGTH | 168.80 |
| MODULE LENGTH | 78.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 59.00 |
| GROUND TO TOP | 18.14 |
| PROJECTED PANEL HEIGHT | 13.06 |
| WIND SPEED OVERRIDE | 103.00 |
| SNOW LOAD OVERRIDE | 113.00 |
| DIRECT SNOW LOAD | TRUE |
| ADD ANGLE BRACE | TRUE |
| PROJECT ID | 14220W, ARRAY-19FT-REVA-JB |
| SITE ADDRESS | 79, MOHAWK, TRAIL, FLORIDA, MA, 01247, USA |
| MODULE WIDTH | 41.70 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16372.49 |
| TOTAL WEIGHT | 3082.83 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/c7c74824-470e-4311-9d2d-af791fd24ca9.pdf |
|
| ID | 4565.00 |
| 3D Solar link |
