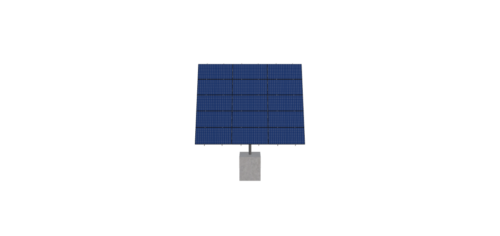

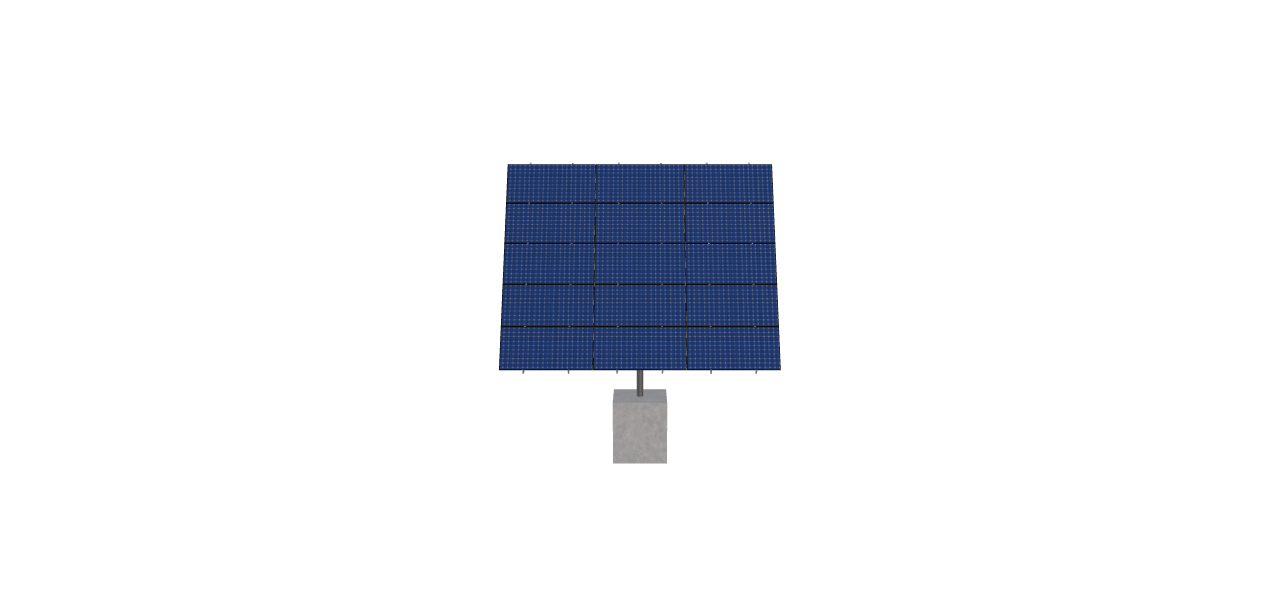

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
15 Panel Array
$4,885.77
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

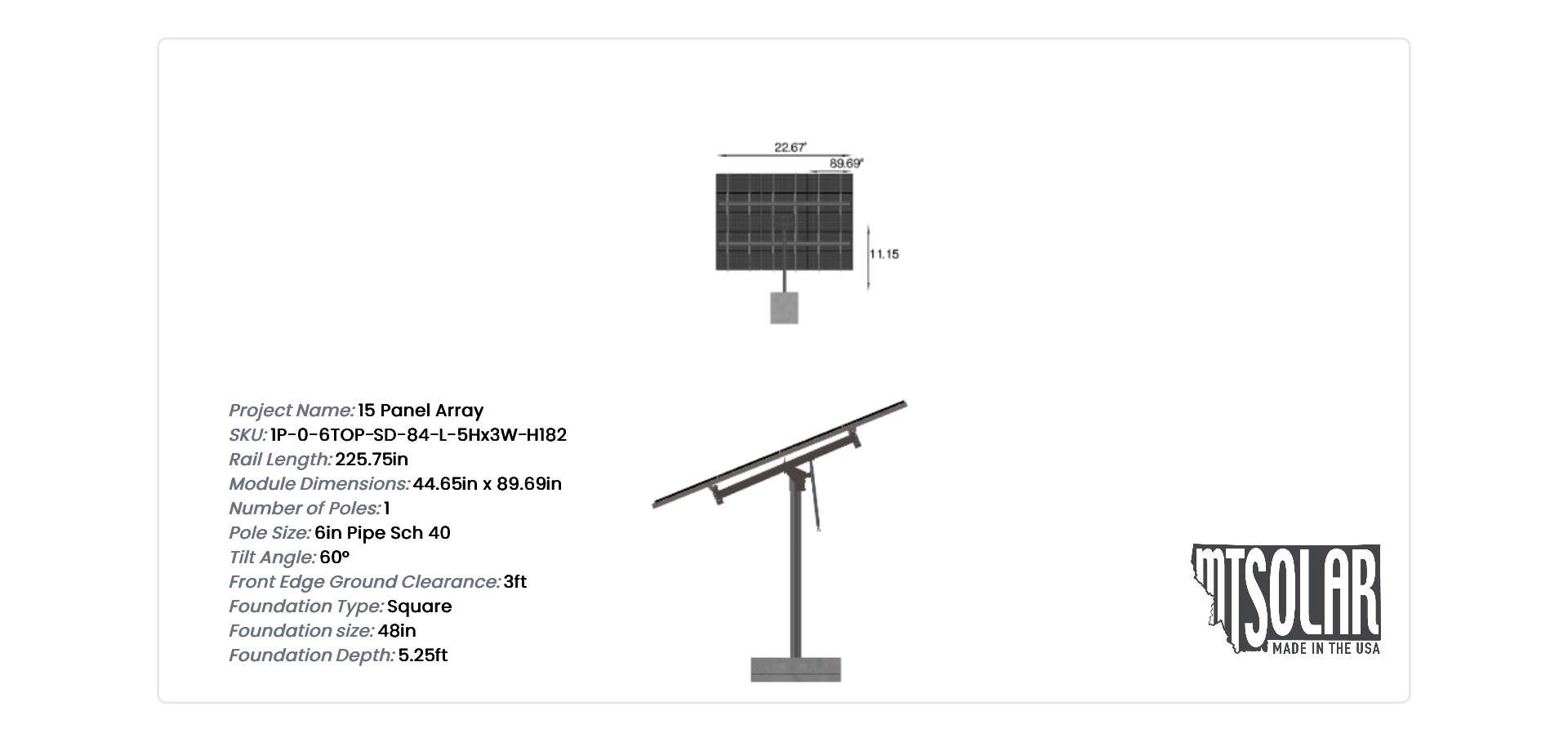

Additional information
| Weight | 976.8199999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-84-L-5HX3W-H182 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.15 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 426.53 |
| ARRAY WIDTH | 22.67 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 89.69 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 19.20 |
| PROJECTED PANEL HEIGHT | 16.11 |
| PROJECT ID | 15, PANEL, ARRAY |
| SITE ADDRESS | 201, HESSIAN, HILL, RD, CORNISH, ME, 04020, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 50.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 4885.77 |
| TOTAL WEIGHT | 976.82 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/77f74a73-7d21-4f53-b252-d3235d61edb9.pdf |
|
| ID | 5345.00 |
| 3D Solar link |
