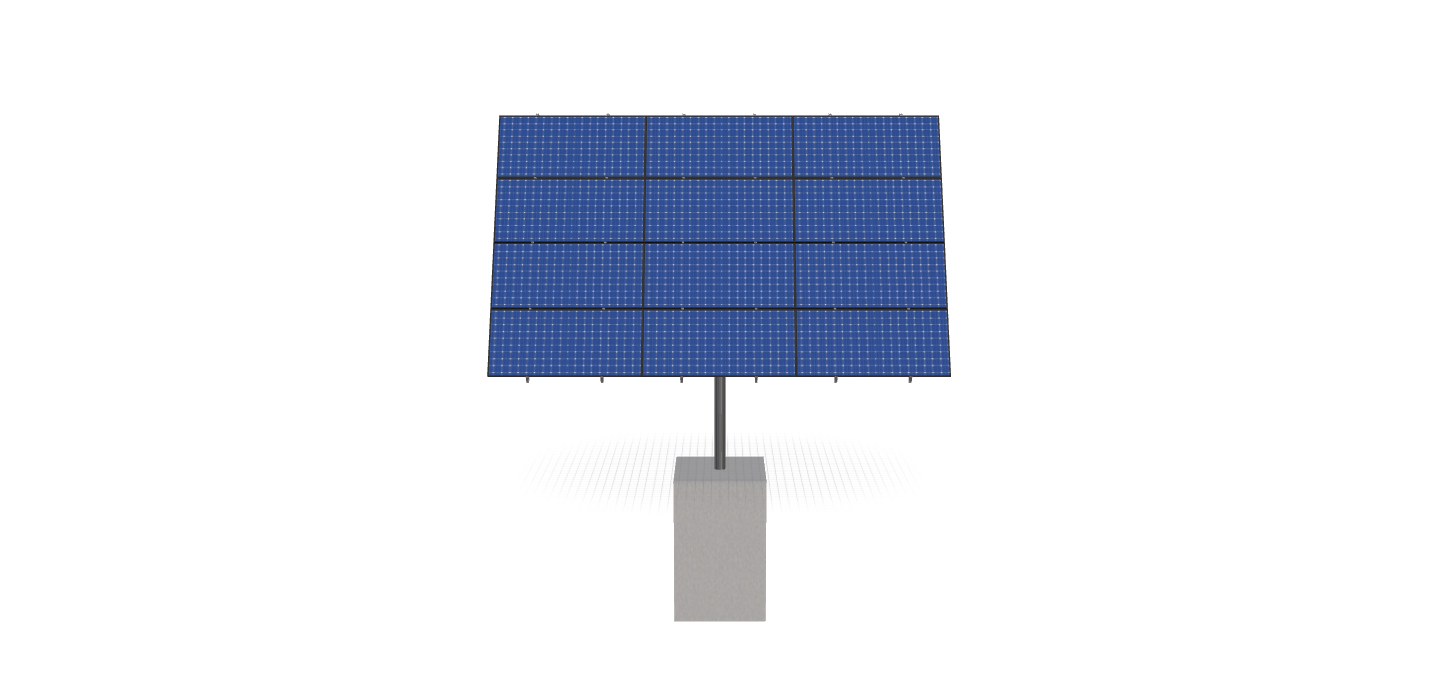

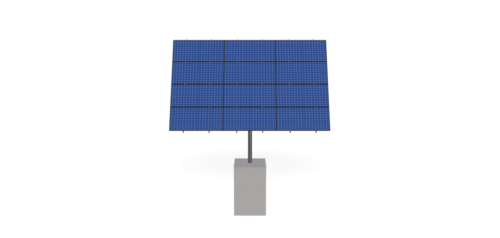

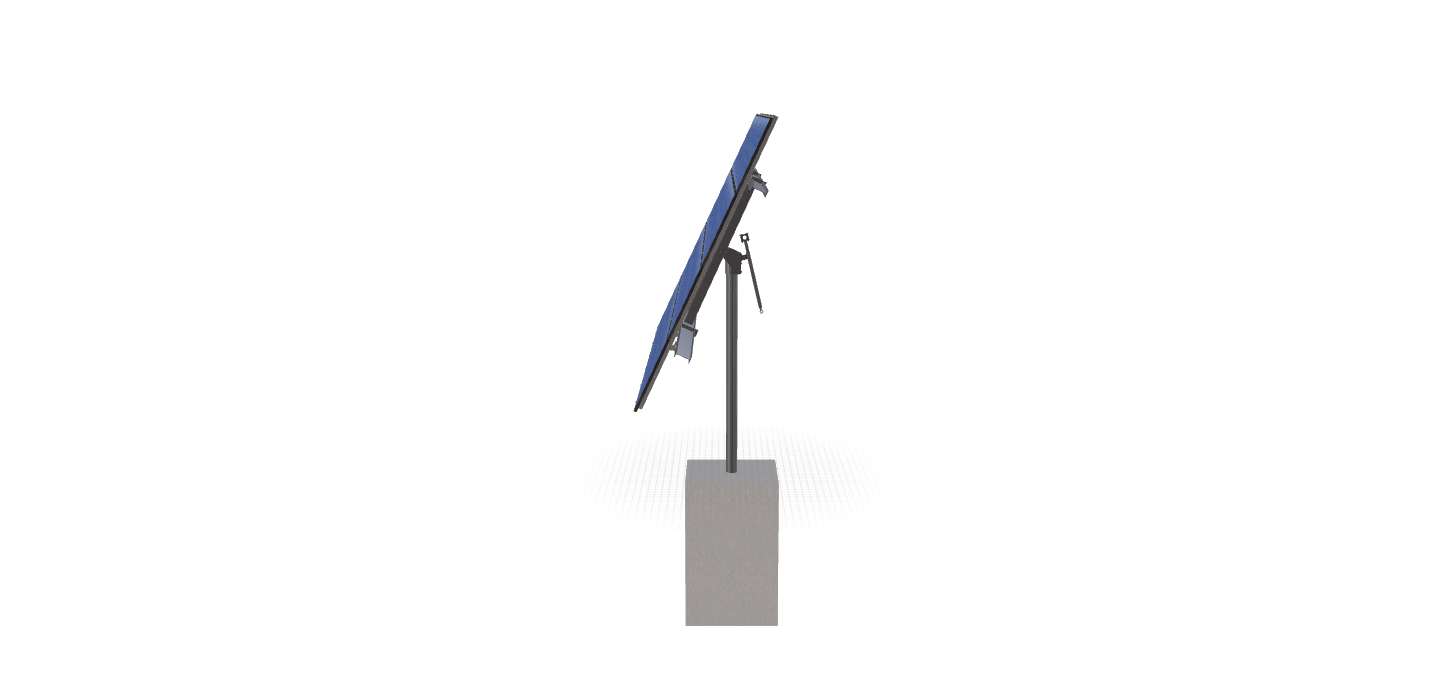

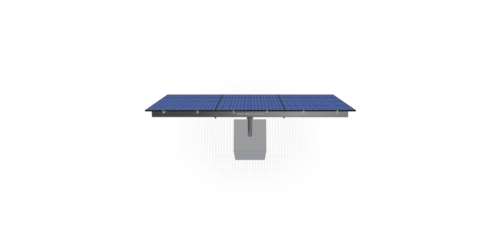

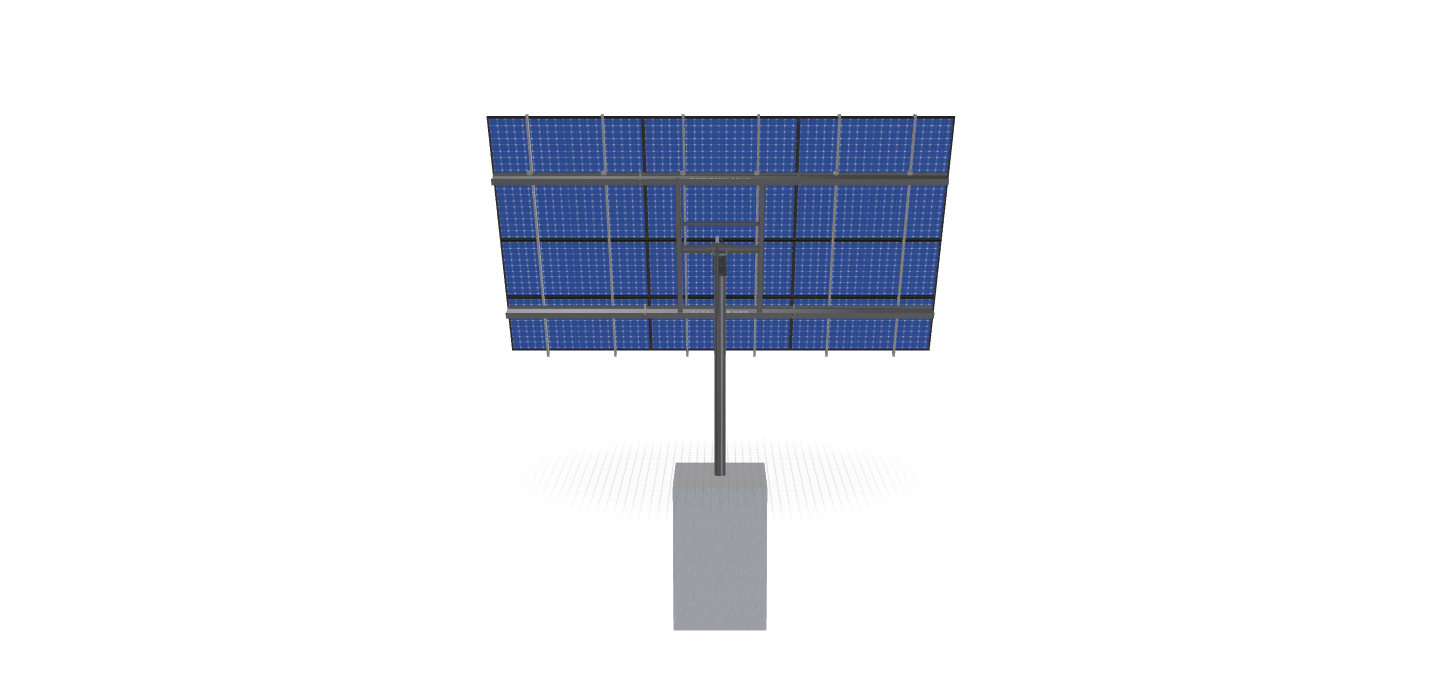

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.81 inches by 40.63 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
23NSCIGLI03
$4,410.70
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.81 inches by 40.63 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 799.16 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-84-L-4HX3W-I253 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.21 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 300.97 |
| ARRAY WIDTH | 21.95 |
| ARRAY HEIGHT | 13.71 |
| RAIL LENGTH | 164.52 |
| MODULE LENGTH | 86.81 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 17.35 |
| PROJECTED PANEL HEIGHT | 12.27 |
| PROJECT ID | 23NSCIGLI03 |
| SITE ADDRESS | 30208, E, MAXTON, RD, DRUMMOND, MI, 49726, USA |
| MODULE WIDTH | 40.63 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 4410.70 |
| TOTAL WEIGHT | 799.16 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/53ea6a17-46b2-48aa-9d0f-78050f6409dc.pdf |
|
| ID | 1176.00 |
| 3D Solar link |
