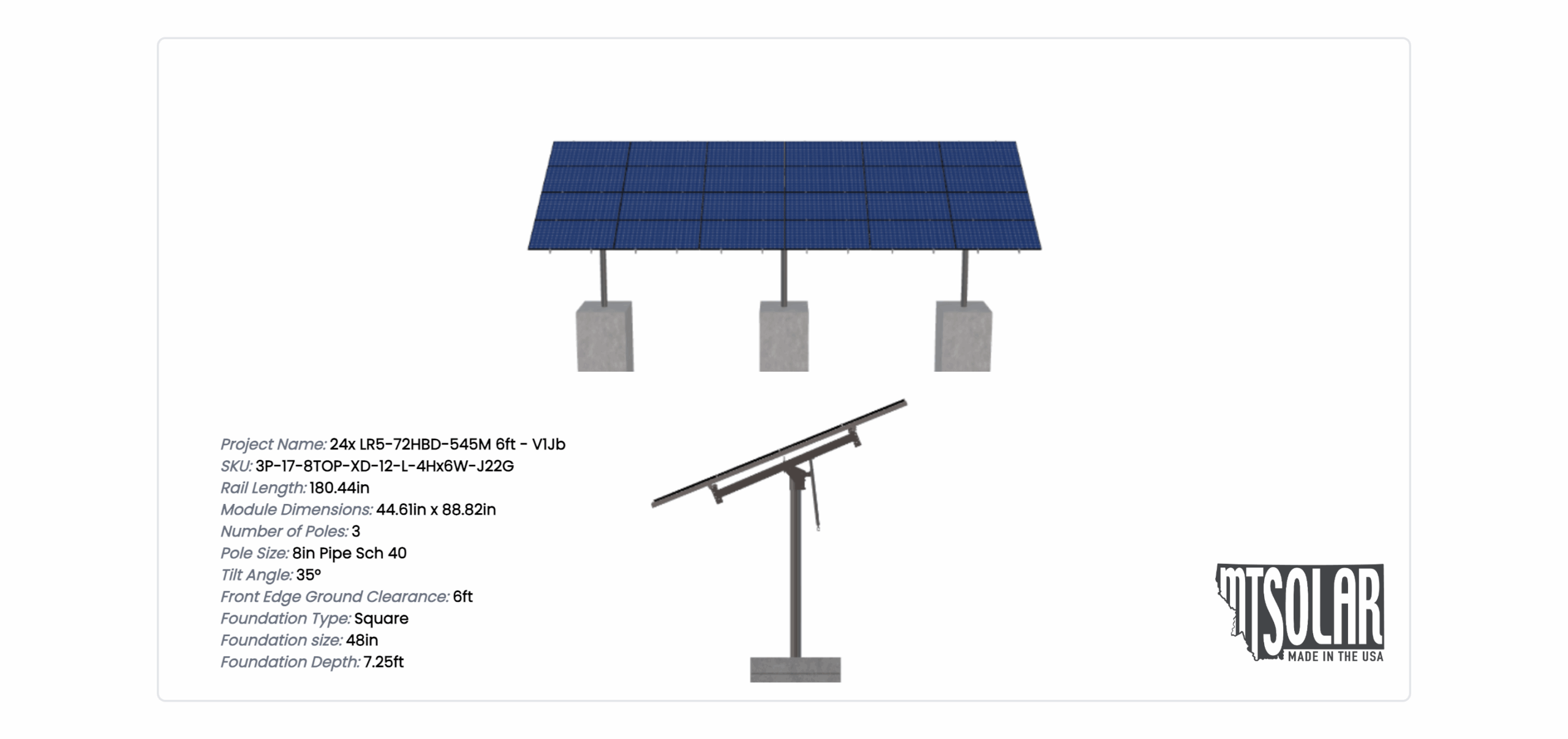

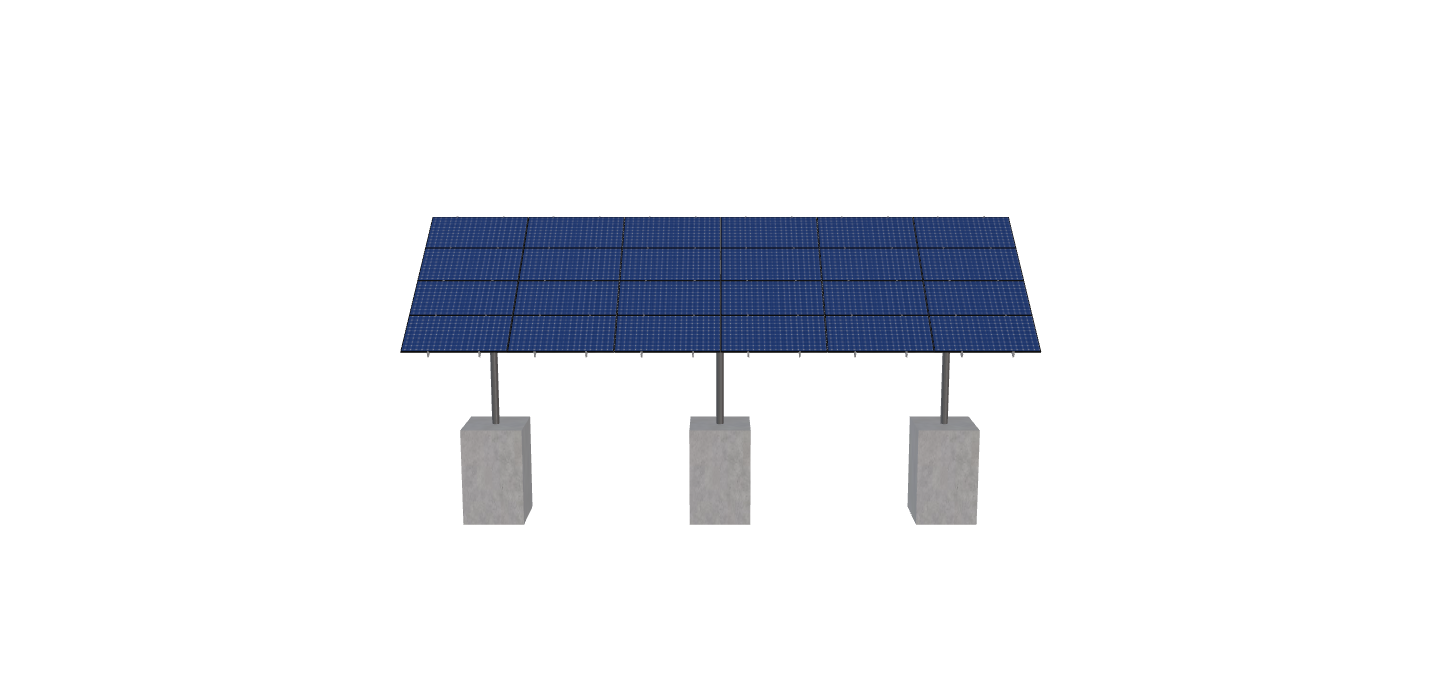

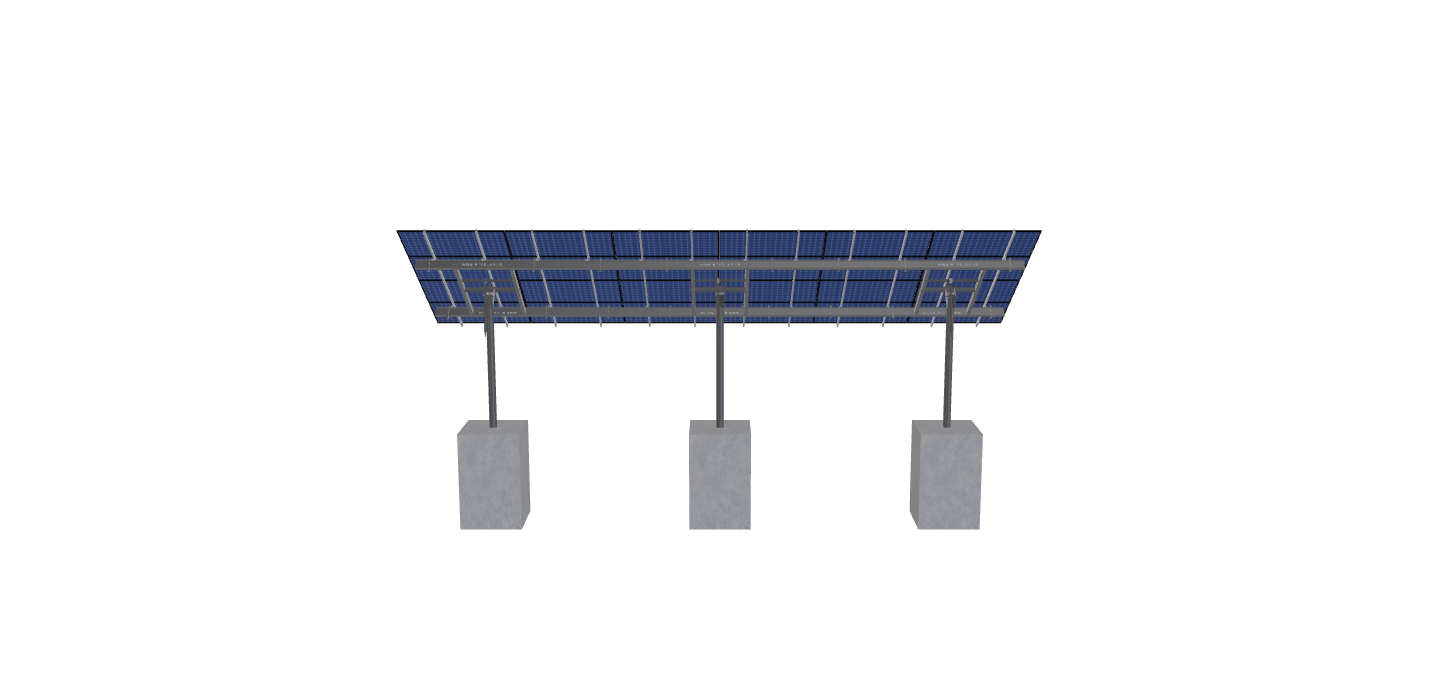

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.82 inches by 44.61 inches and an array layout of 6 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
24x LR5-72HBD-545M 6ft – V1Jb
$14,641.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.82 inches by 44.61 inches and an array layout of 6 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2636.13 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-8TOP-XD-12-L-4HX6W-J22G |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.31 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 675.30 |
| ARRAY WIDTH | 44.91 |
| ARRAY HEIGHT | 15.04 |
| RAIL LENGTH | 180.44 |
| MODULE LENGTH | 88.82 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 14.62 |
| PROJECTED PANEL HEIGHT | 8.62 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | 24X, LR5-72HBD-545M, 6FT, -, V1JB |
| SITE ADDRESS | 238, STARKS, KNOB, RD, SCHUYLERVILLE, NY, 12871, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.61 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14641.41 |
| TOTAL WEIGHT | 2636.13 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/d3c9f9eb-0cb0-474e-8bd0-9a0a9876e176.pdf |
|
| ID | 11513.00 |
| 3D Solar link |
