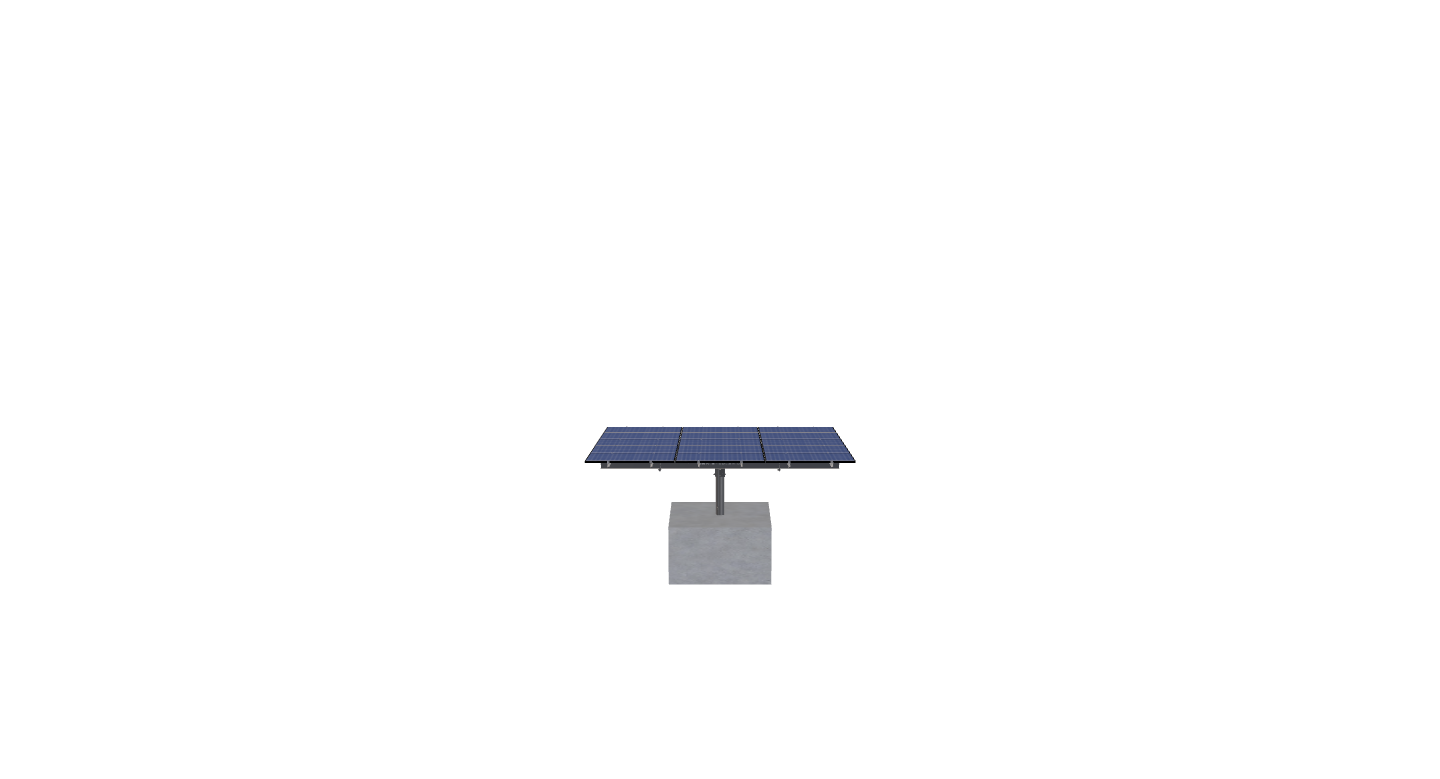

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64.1 inches by 44 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
2882-2 Noland-6ftsquare-RevC-Jb
$4,901.86
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64.1 inches by 44 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 972.03 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-HD-45-L-5HX3W-LF30 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 3.81 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 3.75 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 301.77 |
| ARRAY WIDTH | 16.27 |
| ARRAY HEIGHT | 18.54 |
| RAIL LENGTH | 222.50 |
| MODULE LENGTH | 64.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 4.61 |
| PROJECTED PANEL HEIGHT | 1.60 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 25.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | 2882-2, NOLAND-6FTSQUARE-REVC-JB |
| SITE ADDRESS | 85804, S, WILLAMETTE, ST, EUGENE, OR, 97405, USA |
| MODULE WIDTH | 44.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 72.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4901.86 |
| TOTAL WEIGHT | 972.03 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/3006c67b-337d-43fb-a444-13385fc16ec0.pdf |
|
| ID | 5494.00 |
| 3D Solar link |
