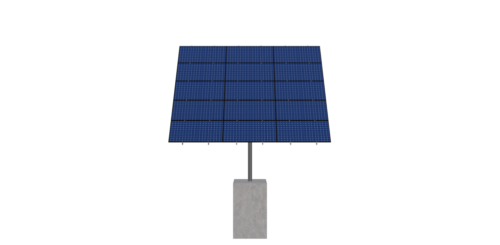

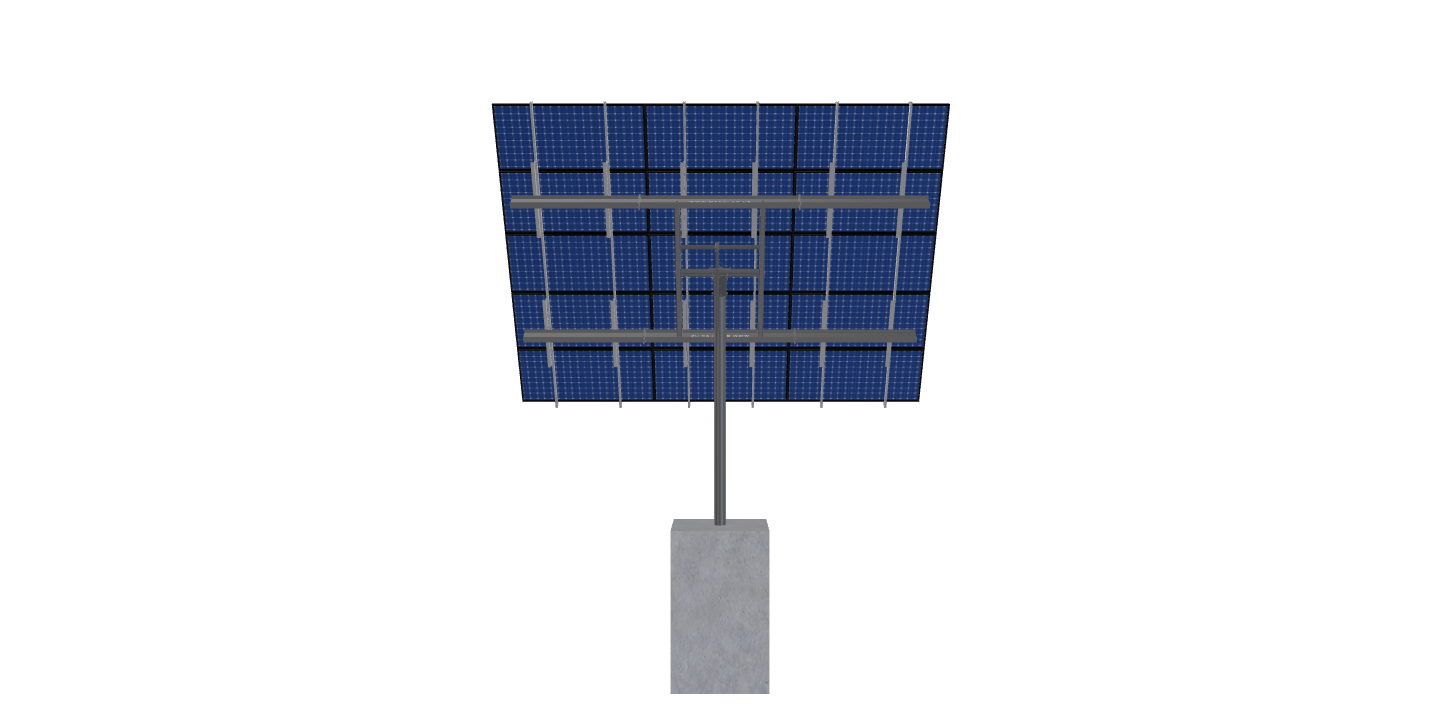

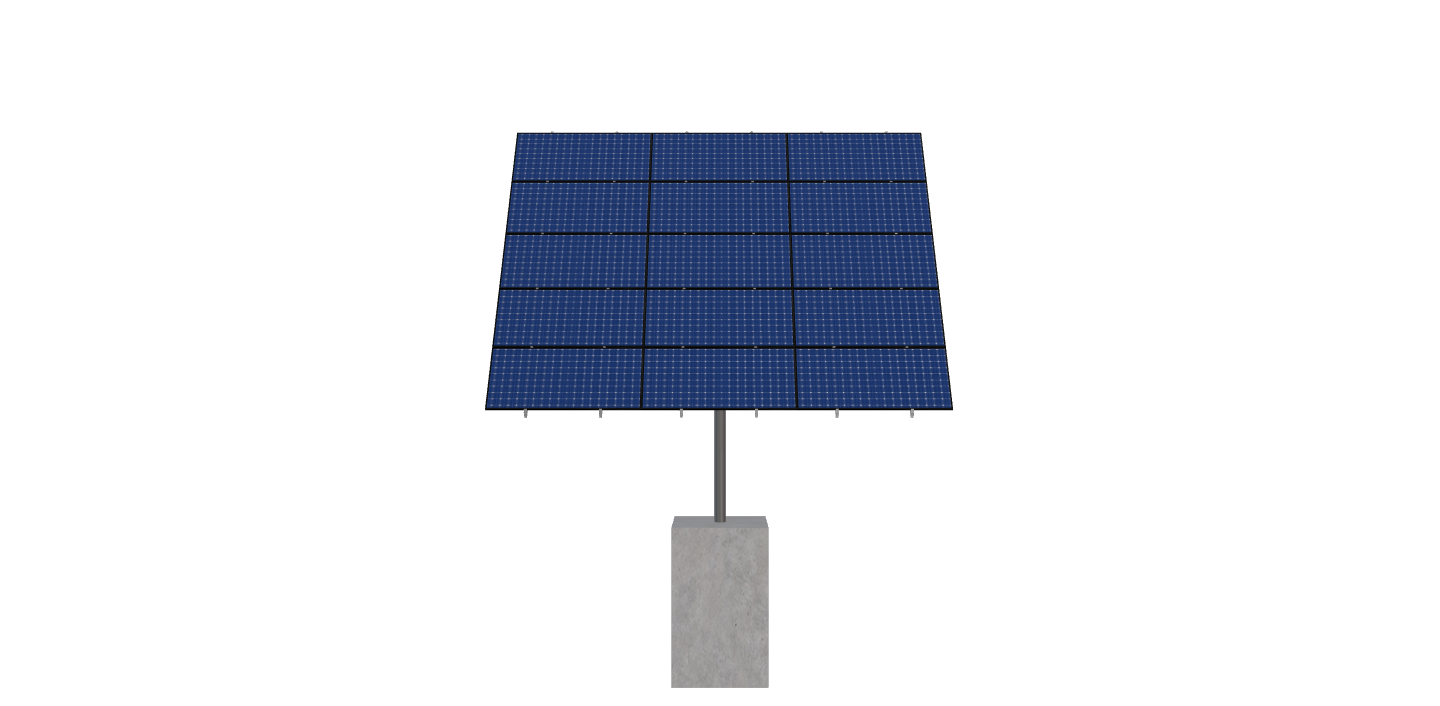

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
314 homestead CU Ver3
$6,273.74
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1208.8700000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-XD-72-L-5HX3W-KIH7 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.06 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 359.57 |
| ARRAY WIDTH | 20.86 |
| ARRAY HEIGHT | 17.24 |
| RAIL LENGTH | 206.85 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 19.03 |
| PROJECTED PANEL HEIGHT | 13.95 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 83.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 314, HOMESTEAD, CU, VER3 |
| SITE ADDRESS | 1107, COUNTY, RD, 17, YUMA, CO, 80759, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 5974.99 |
| TOTAL WEIGHT | 1208.87 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/ac7a2c15-cf6e-4ab7-b906-2bfca4b6121f.pdf |
|
| ID | 1735.00 |
| CAD URL | |
| 3D Solar link |
