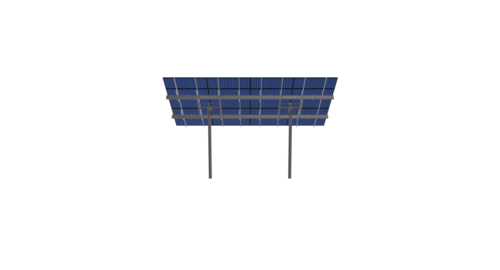

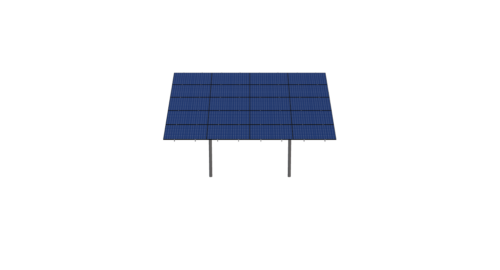

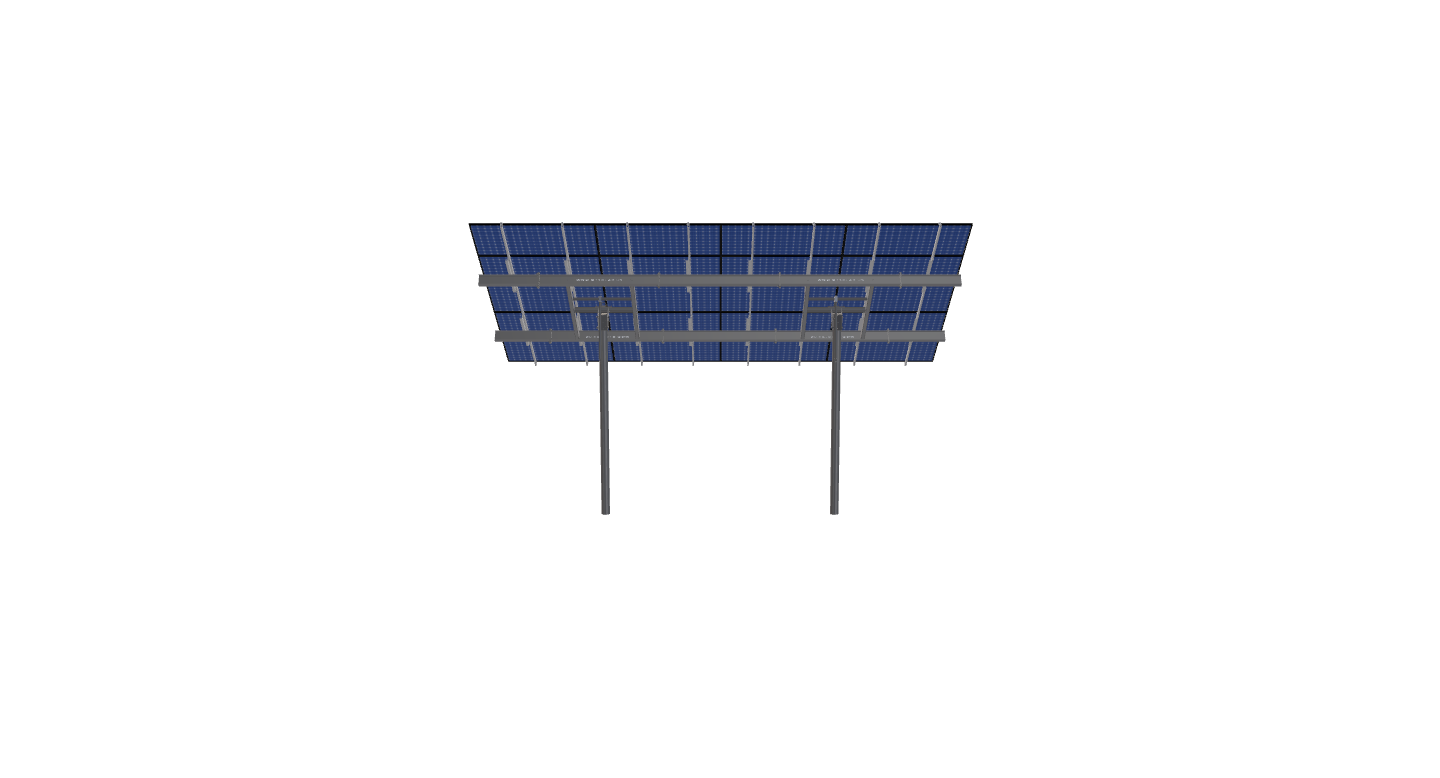

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.7 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

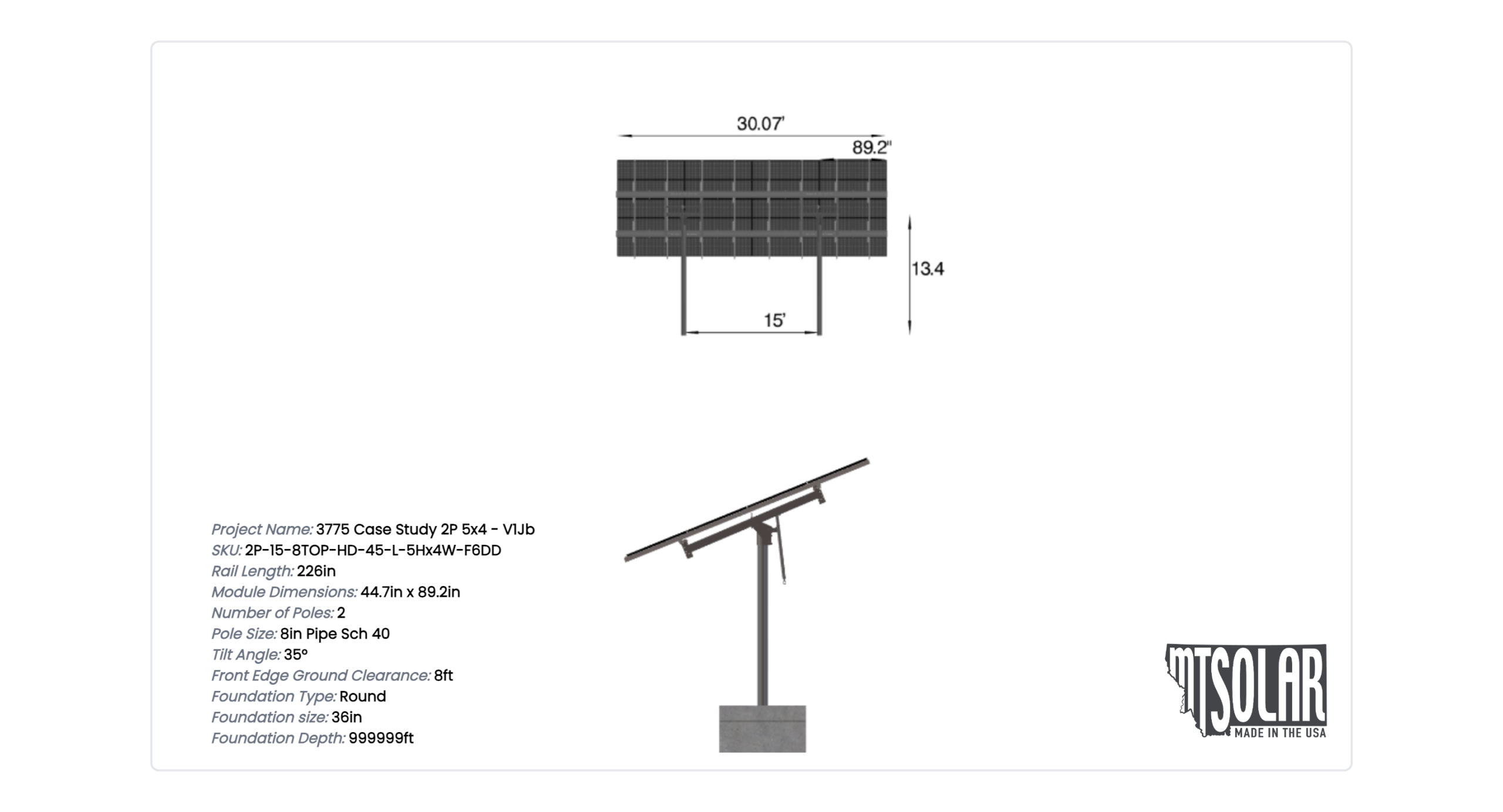

See 3D Model Here
3775 Case Study 2P 5×4 – V1Jb
$8,938.50
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.7 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1772.8600000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-HD-45-L-5HX4W-F6DD |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 13.40 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 999999.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 566.26 |
| ARRAY WIDTH | 30.07 |
| ARRAY HEIGHT | 18.83 |
| RAIL LENGTH | 226.00 |
| MODULE LENGTH | 89.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 18.80 |
| PROJECTED PANEL HEIGHT | 10.80 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 42.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | BLACK, HILLS, SOLAR |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 6057022510.00 |
| PROJECT ID | 3775, CASE, STUDY, 2P, 5X4, -, V1JB |
| SITE ADDRESS | 5102, SHELBY, AVE, RAPID, CITY, SD, 57701, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8938.50 |
| TOTAL WEIGHT | 1772.86 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/80278cf7-1d4b-418d-8850-14551921973b.pdf |
|
| ID | 10302.00 |
| 3D Solar link |
