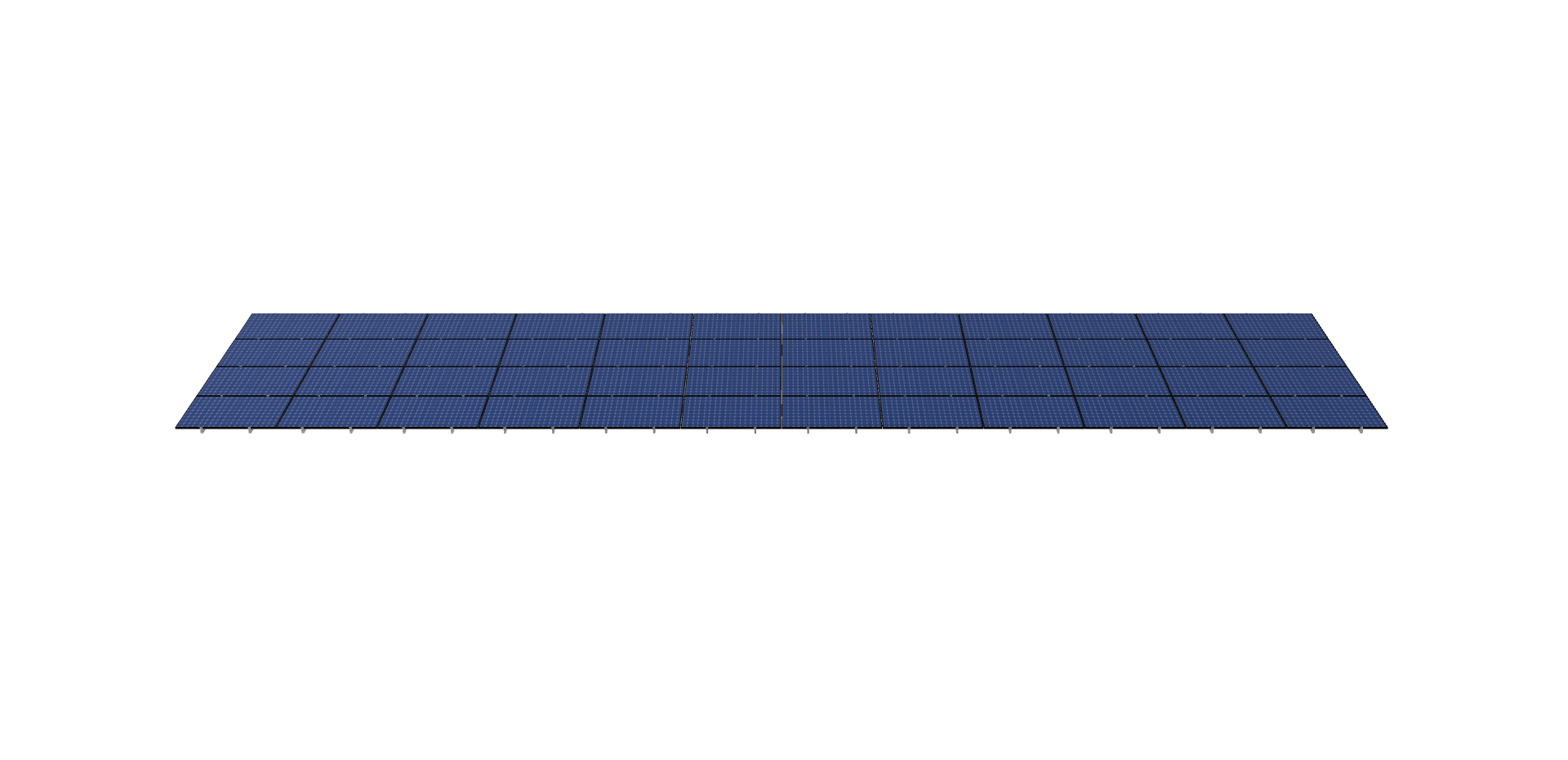

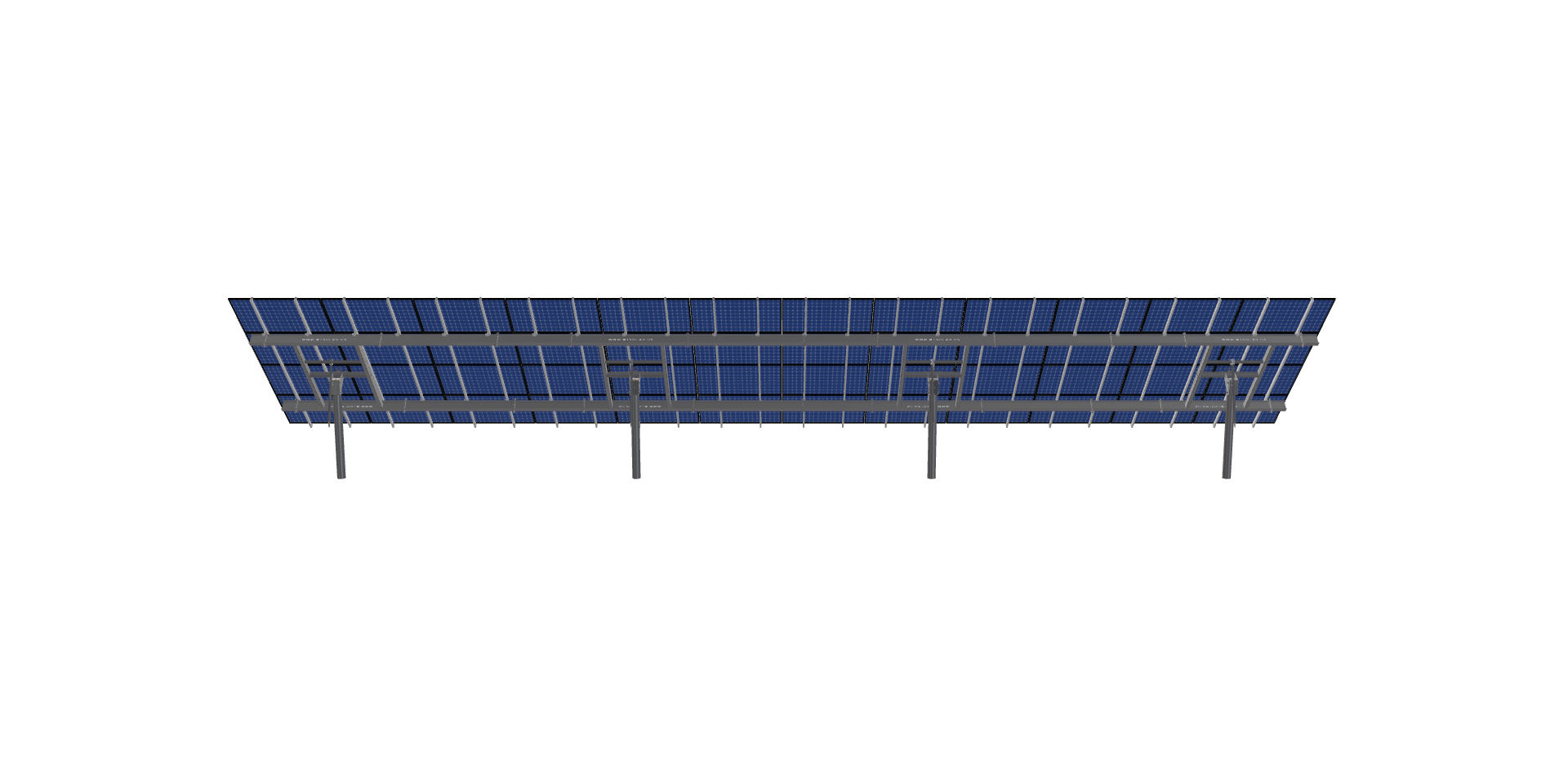

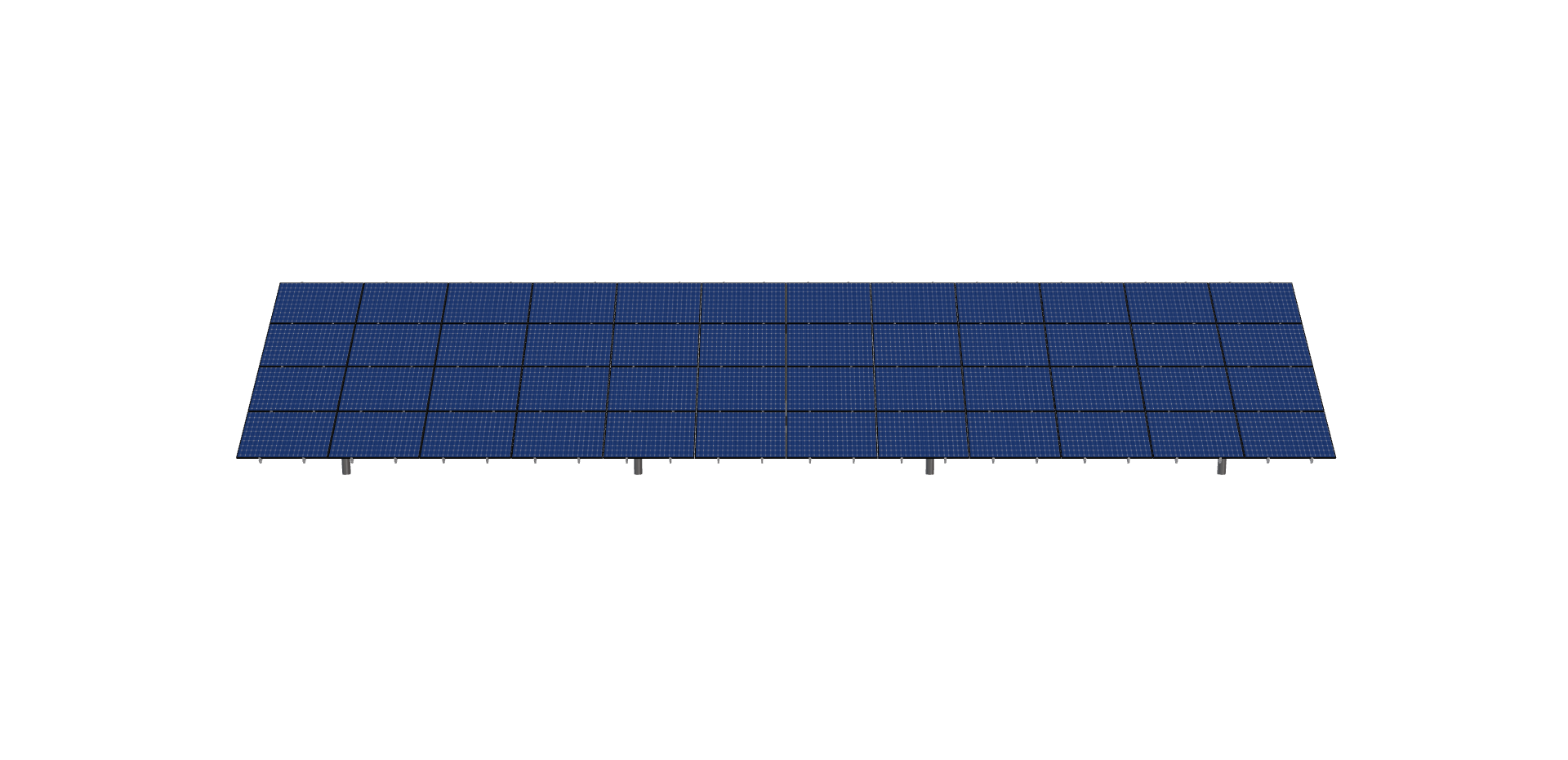

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.25 inches by 43.25 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
70KW Scottsbluff
$19,766.44
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.25 inches by 43.25 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3438.86 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-HD-12-L-4HX12W-2KJL |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 6.91 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 999999.00 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 825.00 |
| GROUND CLEARANCE | 1.75 |
| NO POLES | 4.00 |
| MODULE AREA | 1024.48 |
| ARRAY WIDTH | 70.25 |
| ARRAY HEIGHT | 14.58 |
| RAIL LENGTH | 175.00 |
| MODULE LENGTH | 69.25 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 68.75 |
| GROUND TO TOP | 12.00 |
| PROJECTED PANEL HEIGHT | 10.19 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | 70KW, SCOTTSBLUFF |
| SITE ADDRESS | 50668, NE-71, SCOTTSBLUFF, NE, 69361, USA |
| MODULE WIDTH | 43.25 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 18825.18 |
| TOTAL WEIGHT | 3438.86 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/88a0d7ce-0f5e-487a-8eed-8f54455fdc0e.pdf |
|
| ID | 7300.00 |
| 3D Solar link |
