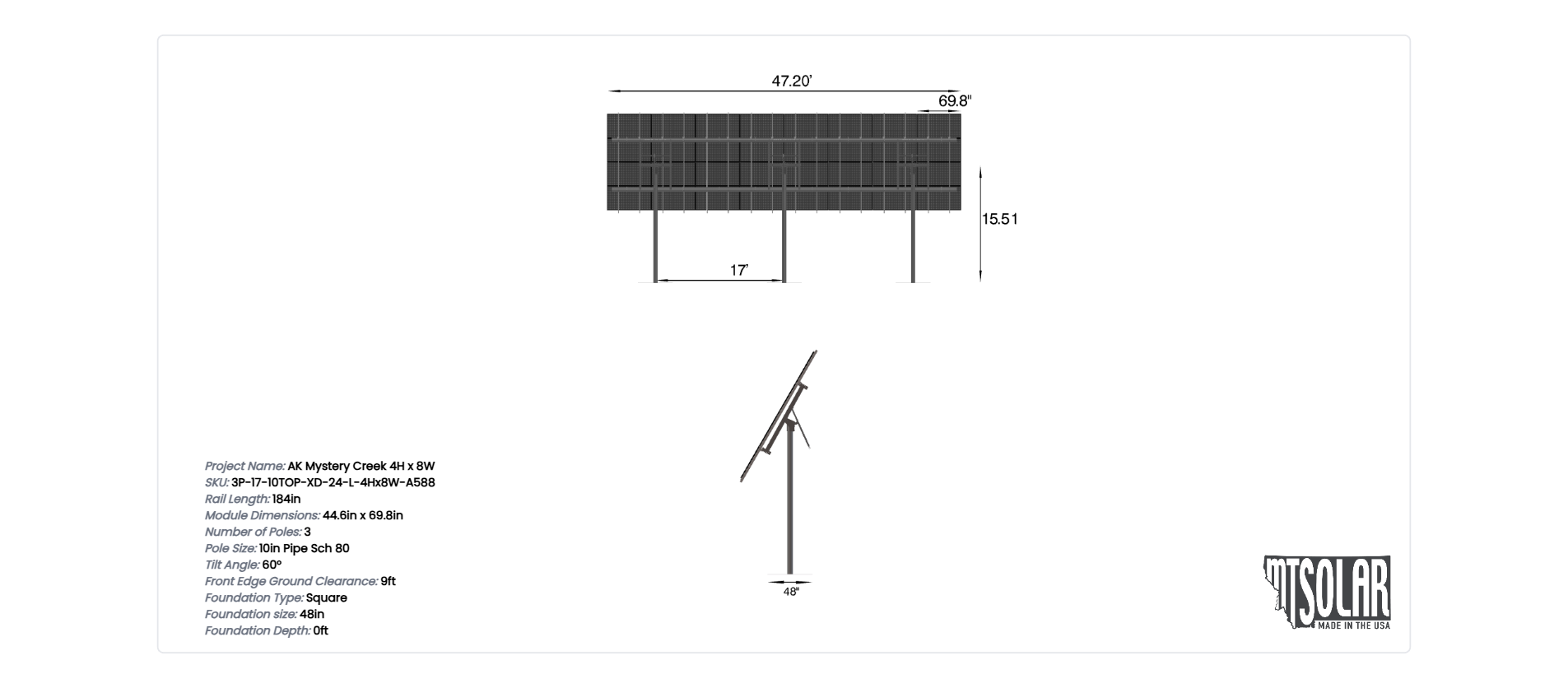

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.8 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

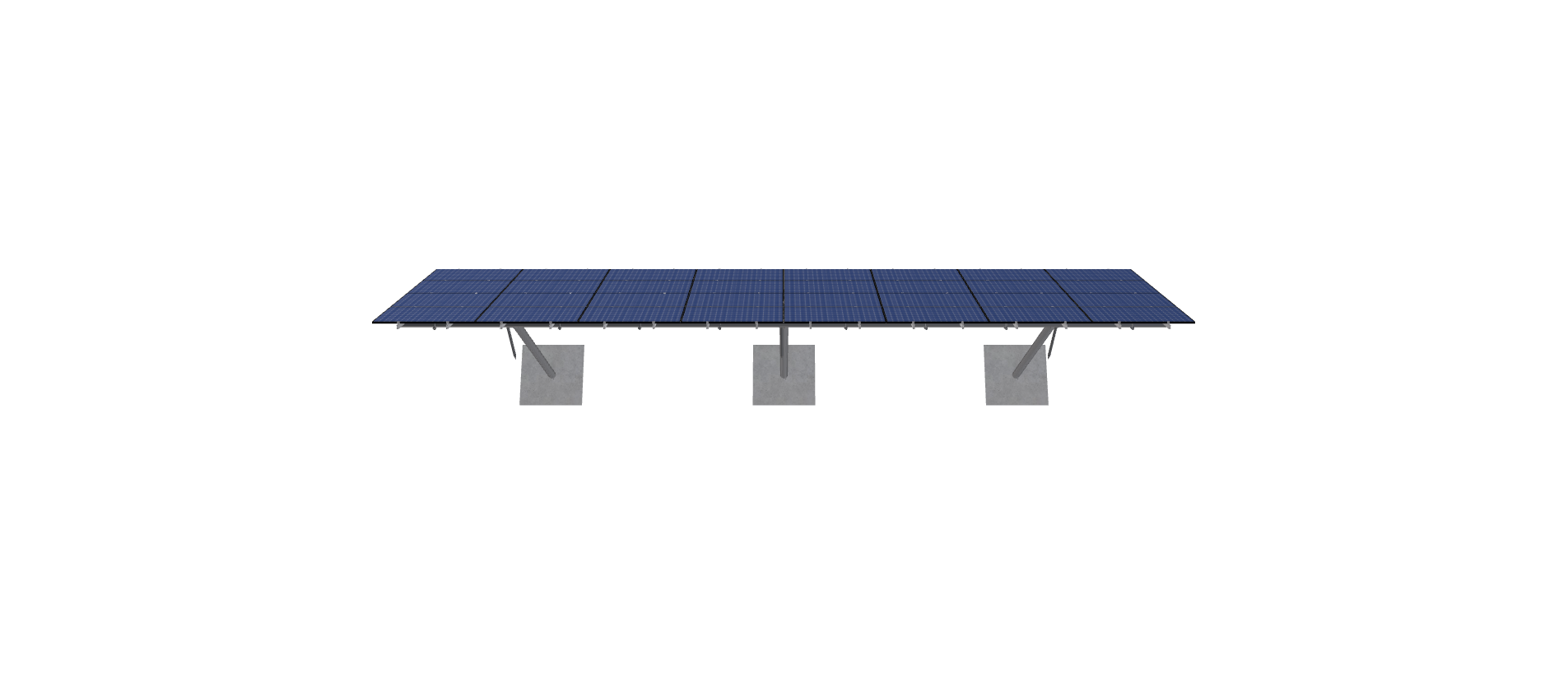

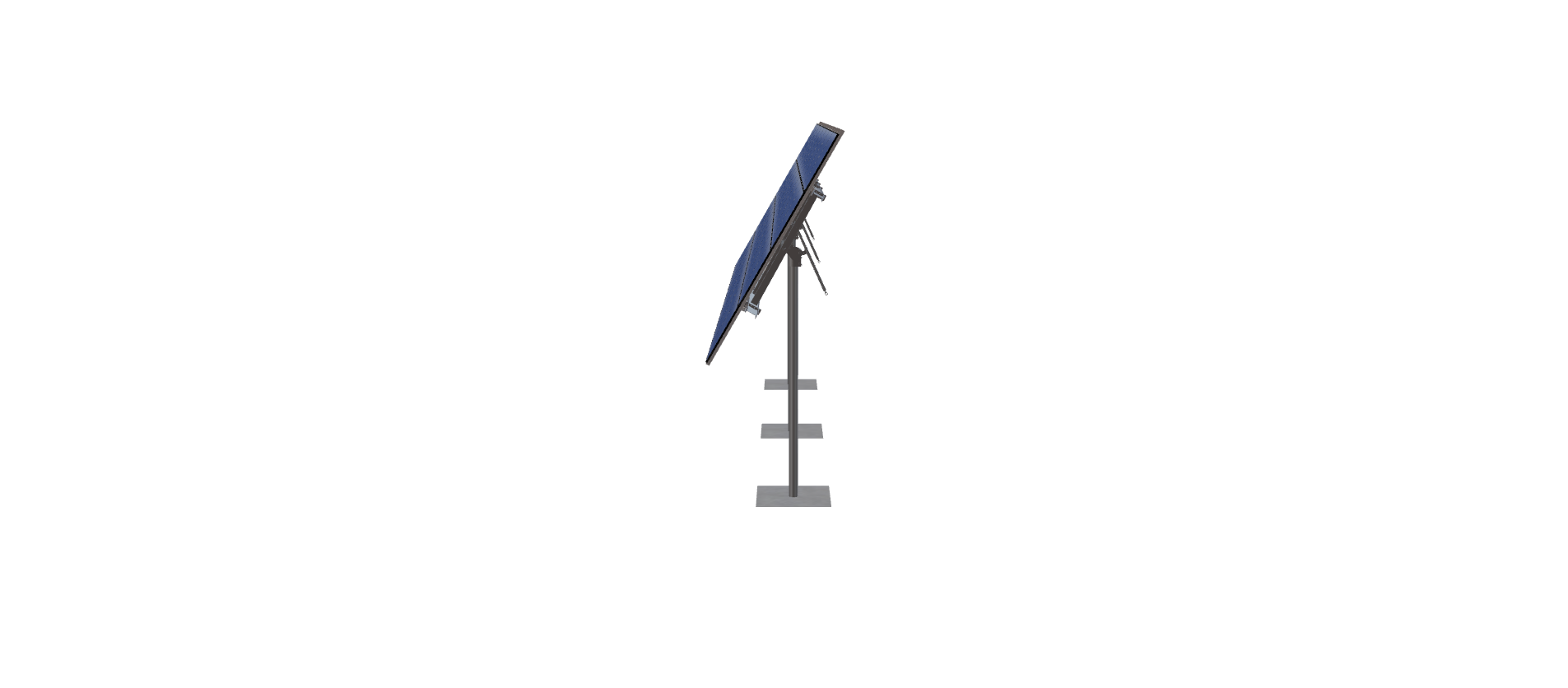

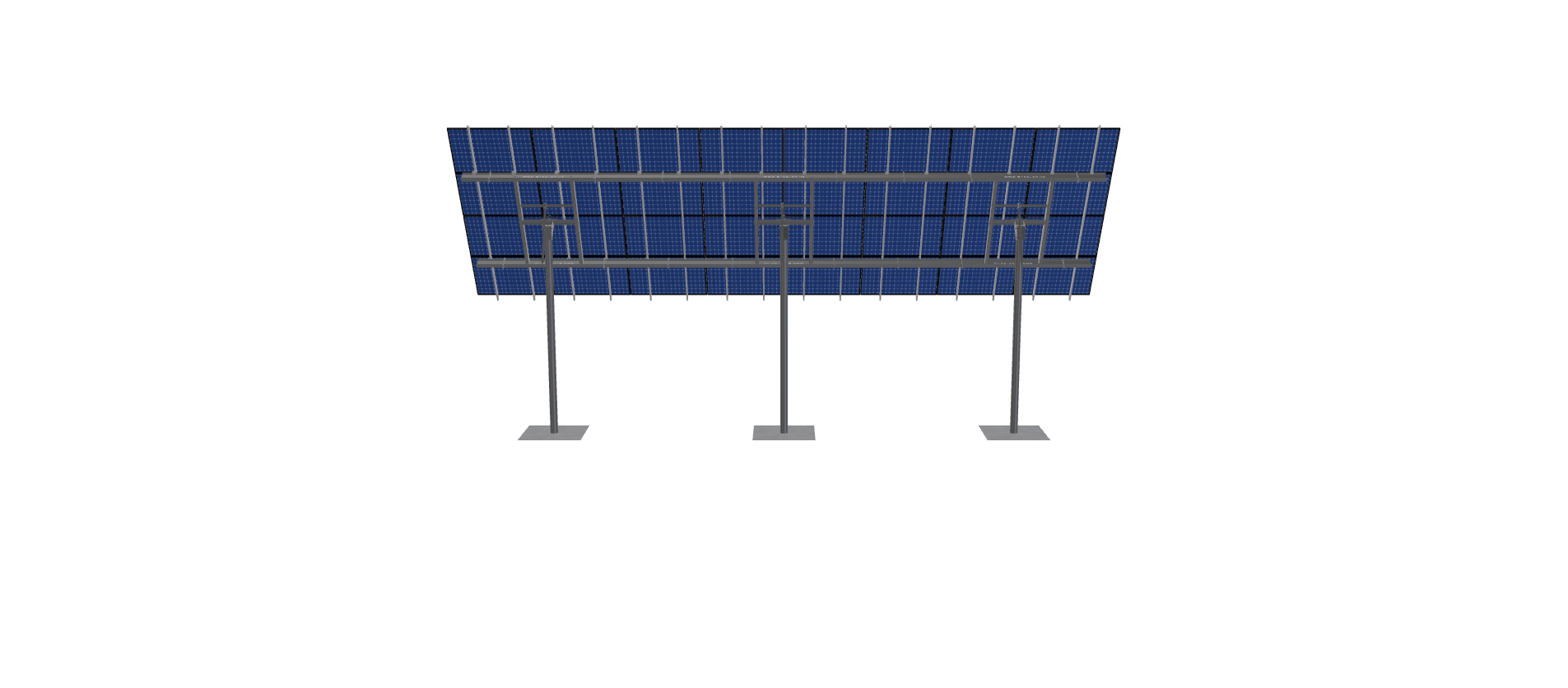

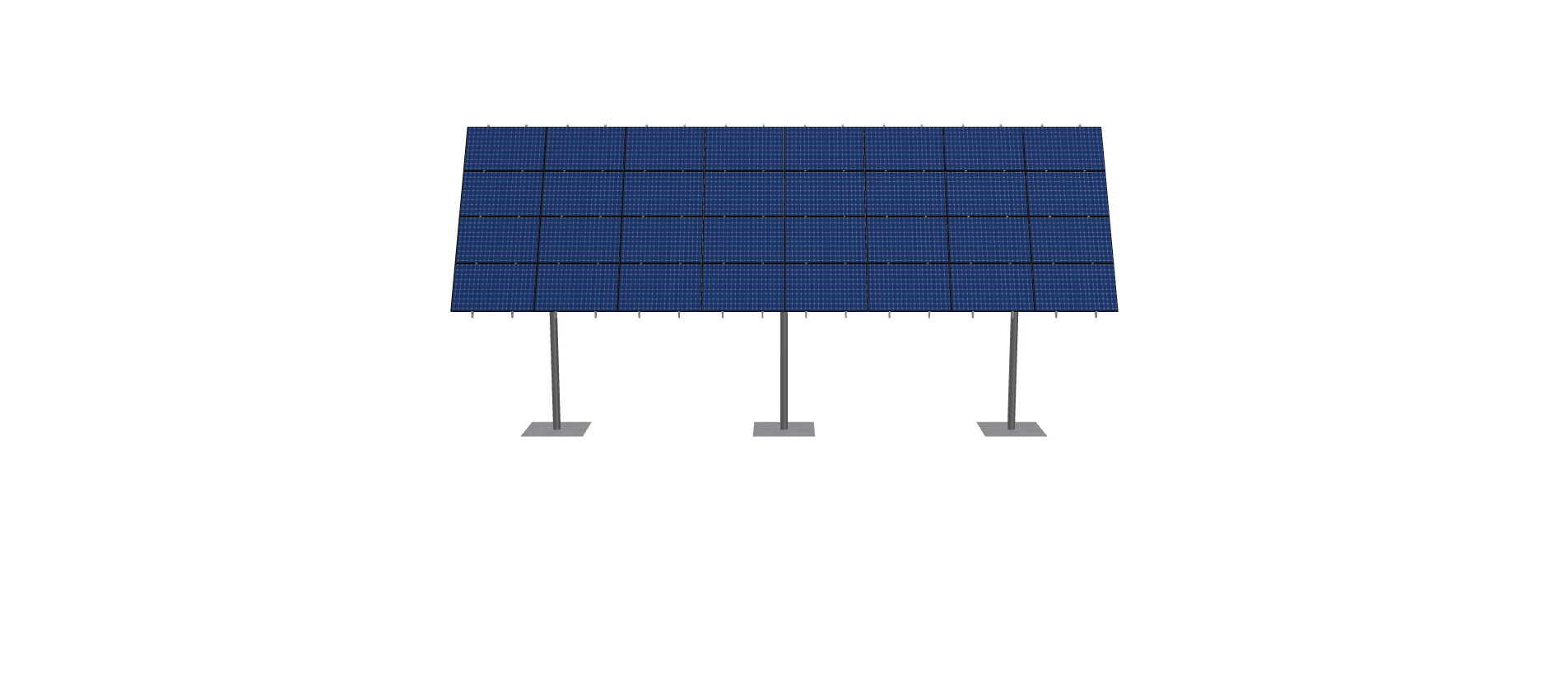

See 3D Model Here
AK Mystery Creek 4H x 8W
$16,176.97
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.8 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2815.89 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-10TOP-XD-24-L-4HX8W-A588 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 15.51 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 3.00 |
| MODULE AREA | 709.57 |
| ARRAY WIDTH | 47.20 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 184.00 |
| MODULE LENGTH | 69.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 22.02 |
| PROJECTED PANEL HEIGHT | 13.02 |
| DESIGNER NAME | FRED, LEUTENEGGER |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 7026829536.00 |
| PROJECT ID | AK, MYSTERY, CREEK, 4H, X, 8W |
| SITE ADDRESS | 93GFGQH4+C9 |
| MODULE INFO | TP7G54M(H), 415 |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 143.00 |
| SNOW LOAD OVERRIDE | 70.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 16176.97 |
| TOTAL WEIGHT | 2815.89 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/353b358a-5228-4f8b-b171-ce415ef73eb1.pdf |
|
| ID | 13977.00 |
| 3D Solar link |
