This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.08 inches by 41.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

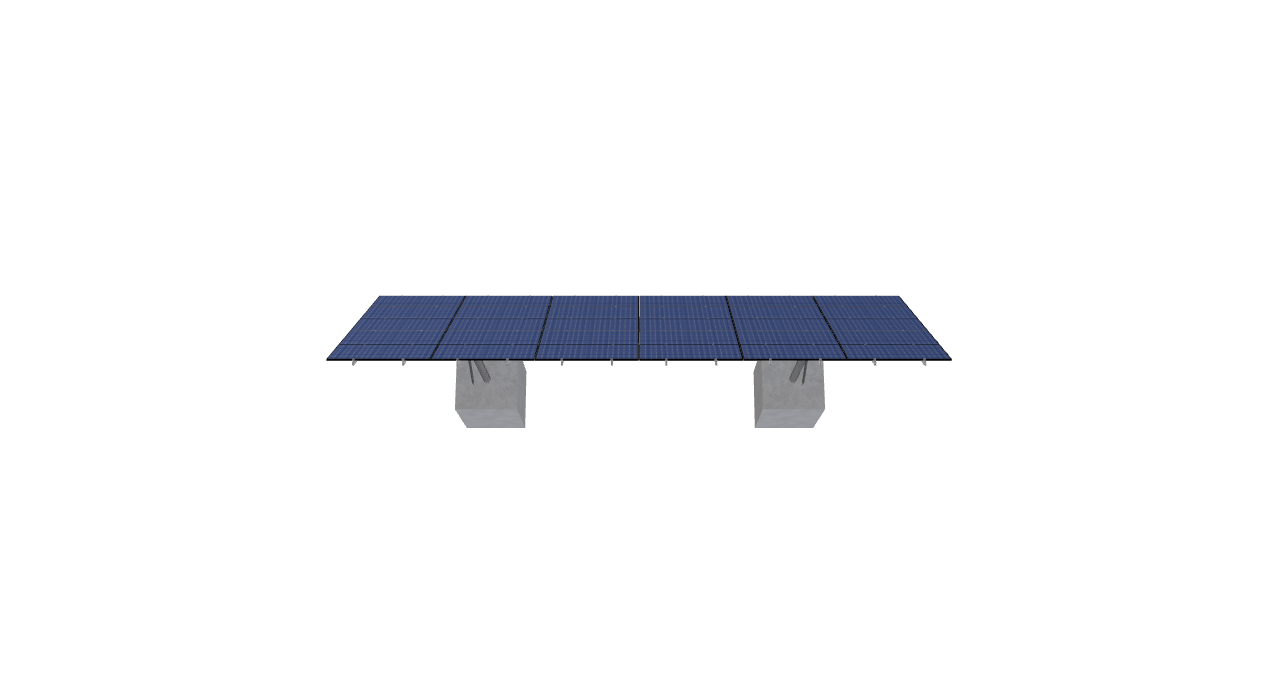

See 3D Model Here
ALR – Final
$11,958.65
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.08 inches by 41.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2415.3399999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-10TOP-XD-45-L-5HX6W-STRUTS-0BD8 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.58 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 2.00 |
| MODULE AREA | 665.70 |
| ARRAY WIDTH | 38.04 |
| ARRAY HEIGHT | 17.50 |
| RAIL LENGTH | 210.00 |
| MODULE LENGTH | 75.08 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 17.07 |
| PROJECTED PANEL HEIGHT | 14.98 |
| PROJECT ID | ALR, -, FINAL |
| SITE ADDRESS | 2416, CO, RD, 430, LA, VETA, CO, 81055, USA |
| MODULE WIDTH | 41.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 45.00 |
| DIRECT SNOW LOAD | TRUE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 11958.65 |
| TOTAL WEIGHT | 2415.34 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/0f6a211b-cee0-471d-91ef-5479dd64c1e3.pdf |
|
| ID | 5765.00 |
| 3D Solar link |
