Anahola Charter School v1

$21,991.54

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 13 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

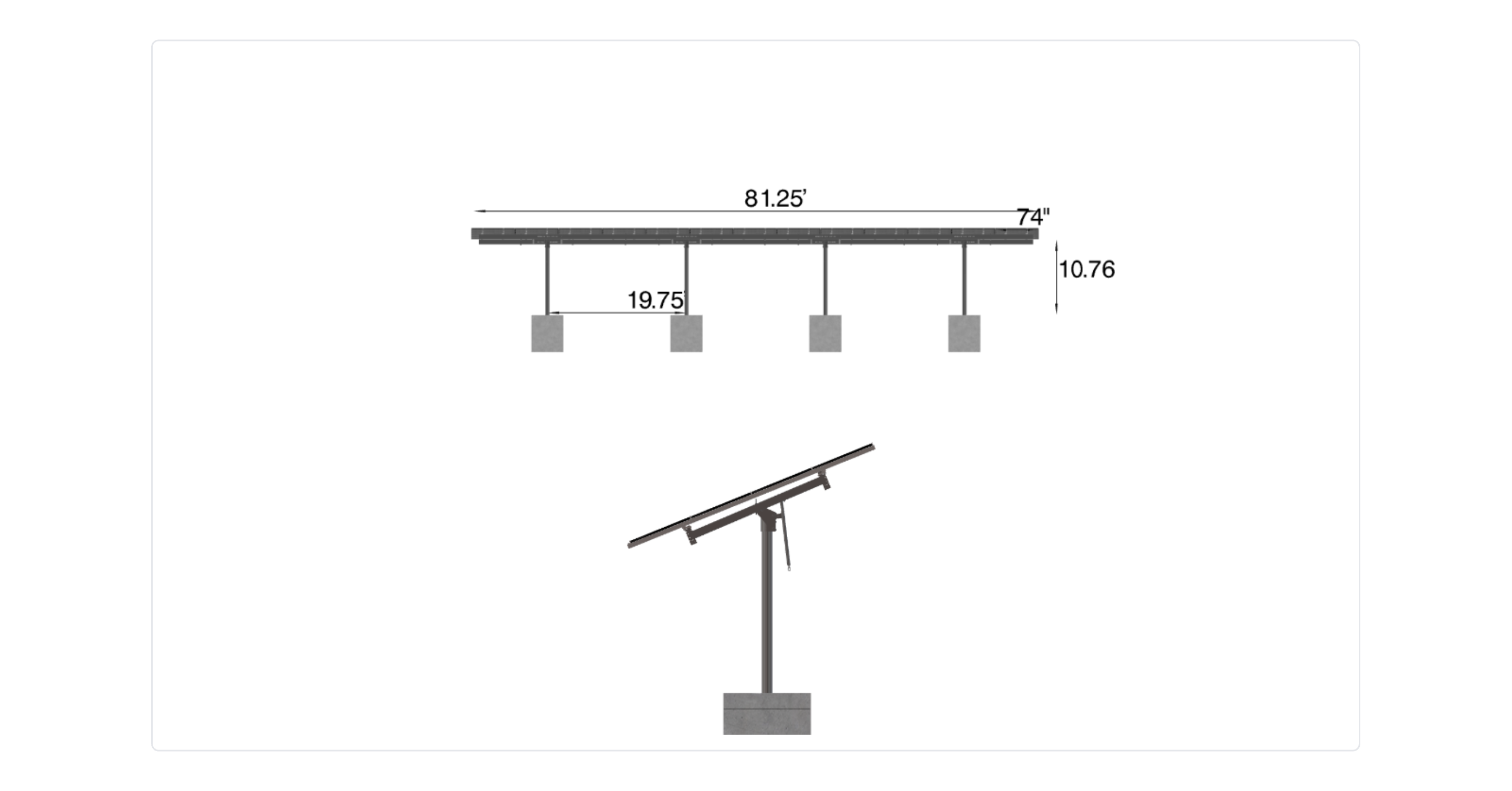

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $21,991.54
Total options:
Order total:
SKU: 4P-19.75-6TOP-HD-72-L-5Hx13W-D4II Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 13 wide by 5 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4450.860000000001 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-6TOP-HD-72-L-5HX13W-D4II

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

10.76

WING SPAN

72.00

MAX FOUNDATION DEPTH

5.25

TILT ANGLE

5.00

CANTILEVER

945.00

GROUND CLEARANCE

10.00

NO POLES

4.00

MODULE AREA

1408.33

ARRAY WIDTH

81.25

ARRAY HEIGHT

17.33

RAIL LENGTH

208.00

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

78.75

GROUND TO TOP

11.50

PROJECTED PANEL HEIGHT

1.49

PROJECT ID

ANAHOLA, CHARTER, SCHOOL, V1

SITE ADDRESS

ANAHOLA, HI, 96703, USA

MODULE WIDTH

41.10

NUMBER ROWS

5.00

NUMBER COLUMNS

13.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

21991.54

TOTAL WEIGHT

4450.86

TOTAL PALLETS

4.00
