This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.8 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

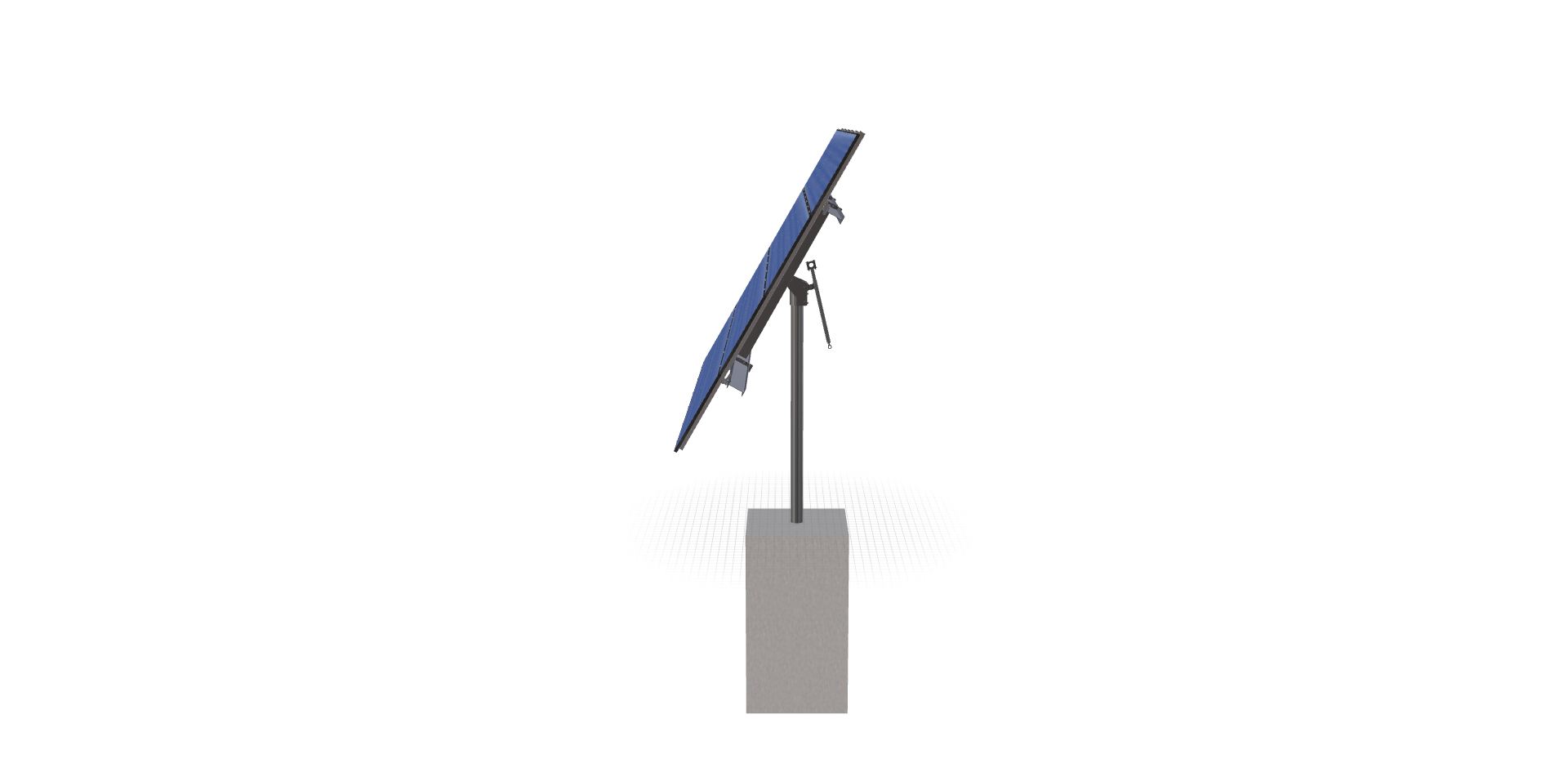

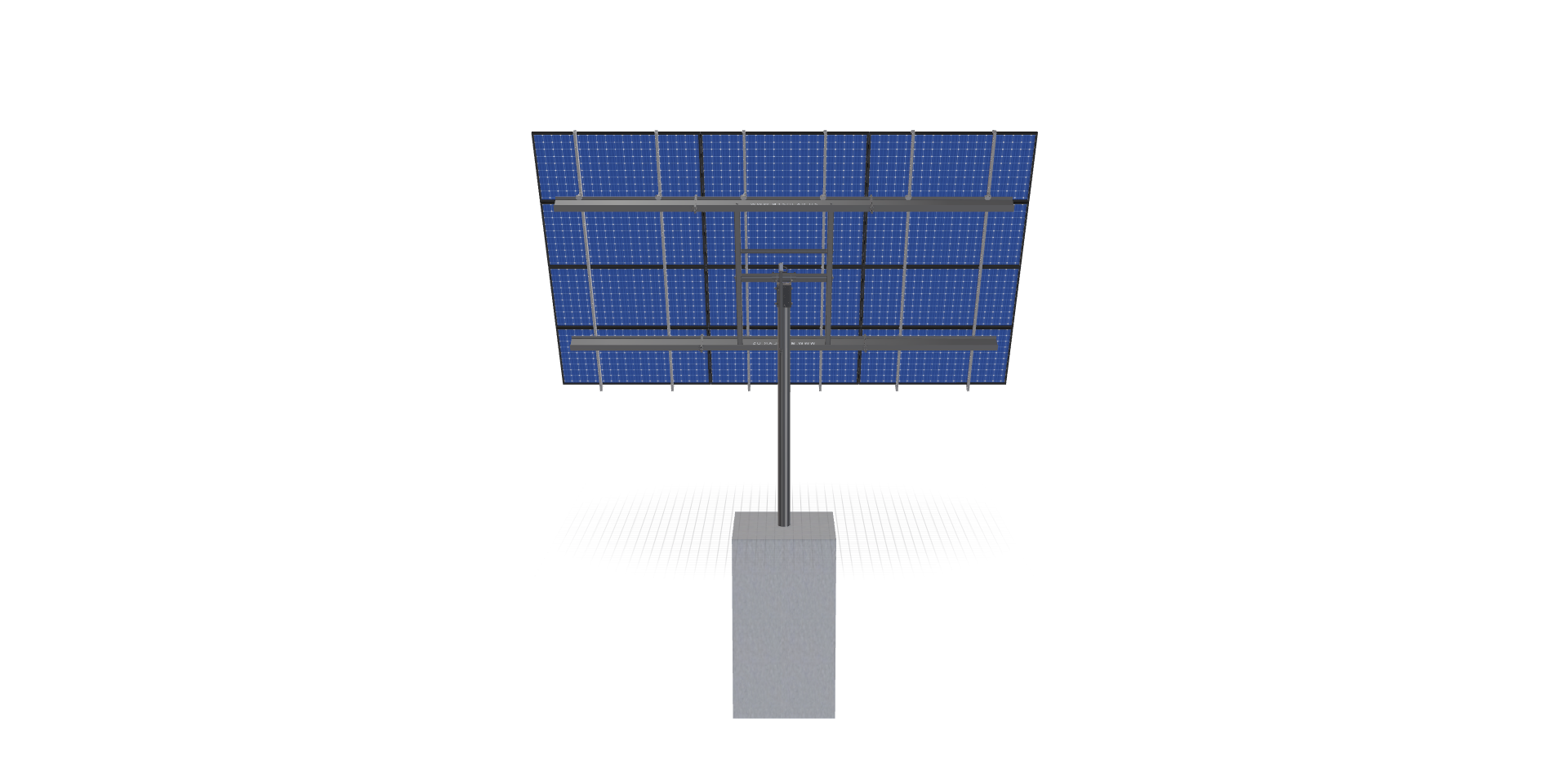

See 3D Model Here
Anthony Sandoval
$4,847.80
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.8 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 899.3299999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-HD-72-L-4HX3W-A01D |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.11 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.25 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 299.27 |
| ARRAY WIDTH | 21.23 |
| ARRAY HEIGHT | 14.10 |
| RAIL LENGTH | 169.20 |
| MODULE LENGTH | 83.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 17.14 |
| PROJECTED PANEL HEIGHT | 12.07 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | ANTHONY, SANDOVAL |
| SITE ADDRESS | 916, MIA, ST, FAIRBANKS, AK, 99712, USA |
| MODULE WIDTH | 41.80 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4847.80 |
| TOTAL WEIGHT | 899.33 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/204c2259-d419-4d4f-9a0b-6ebc4d8755f1.pdf |
|
| ID | 1029.00 |
| 3D Solar link |
