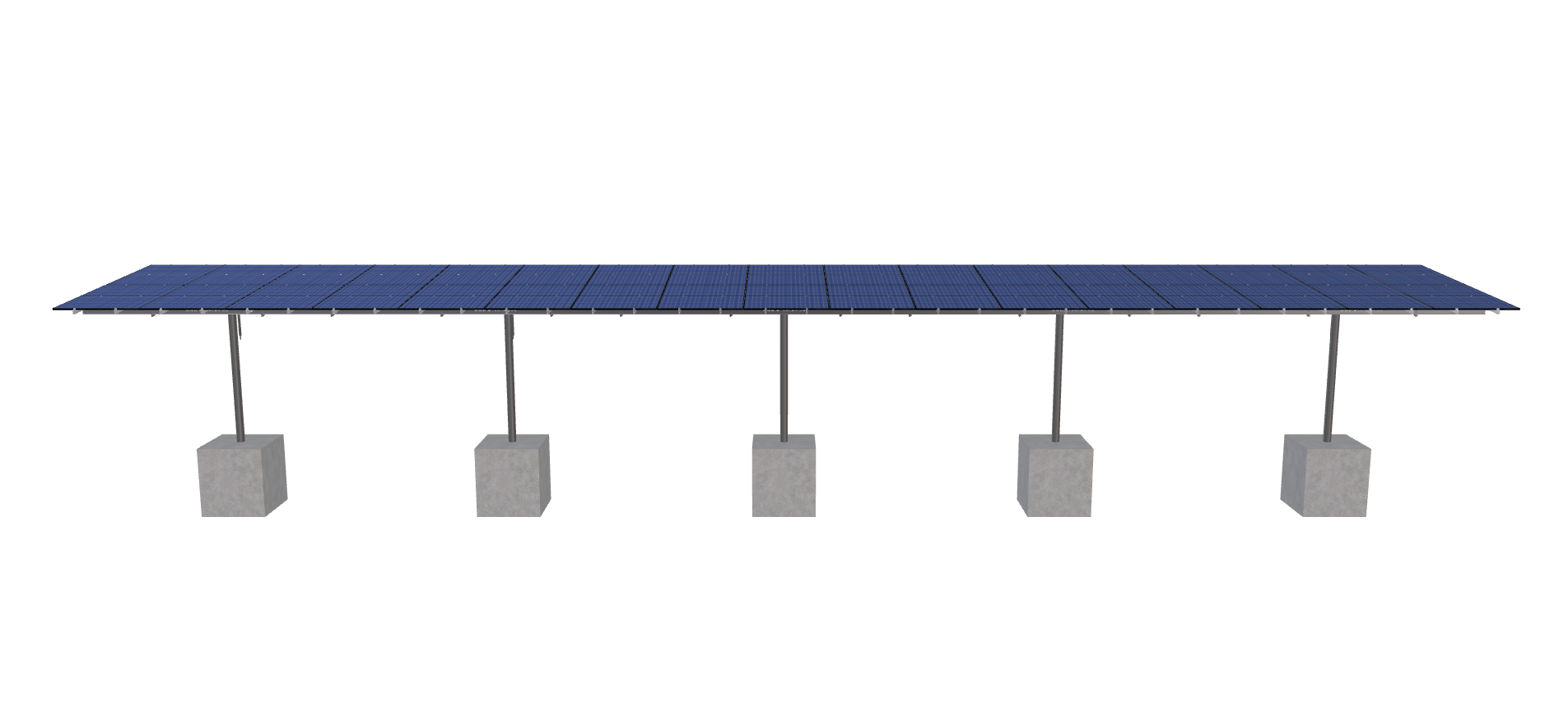

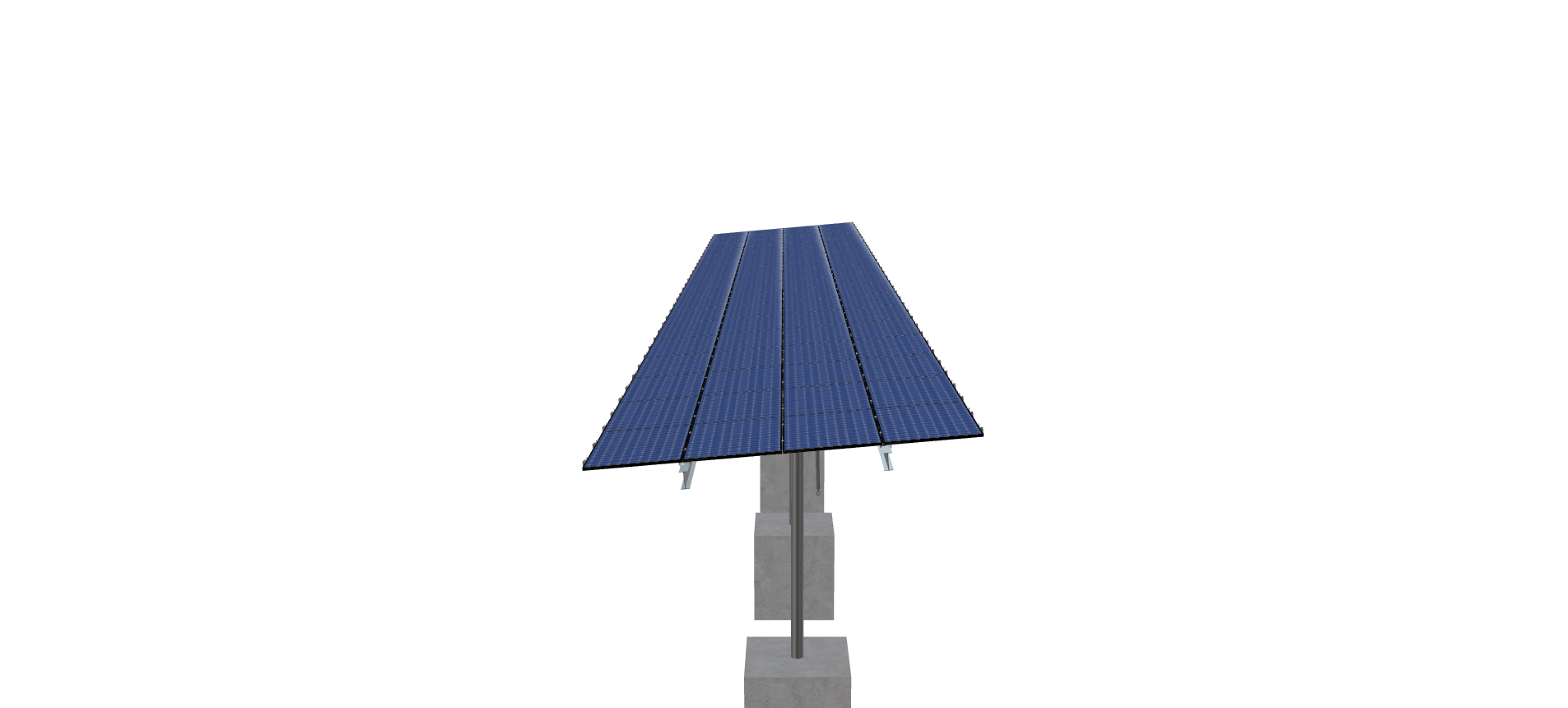

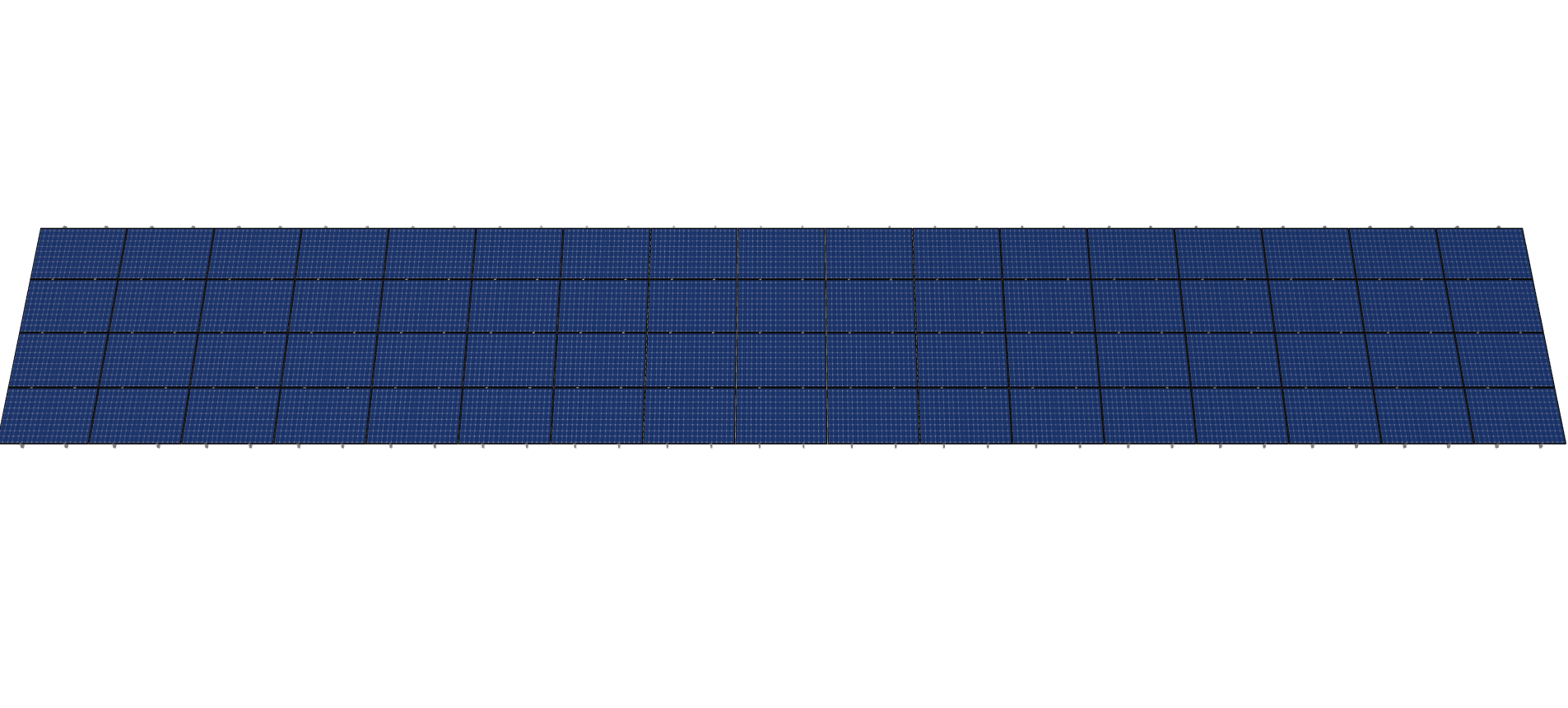

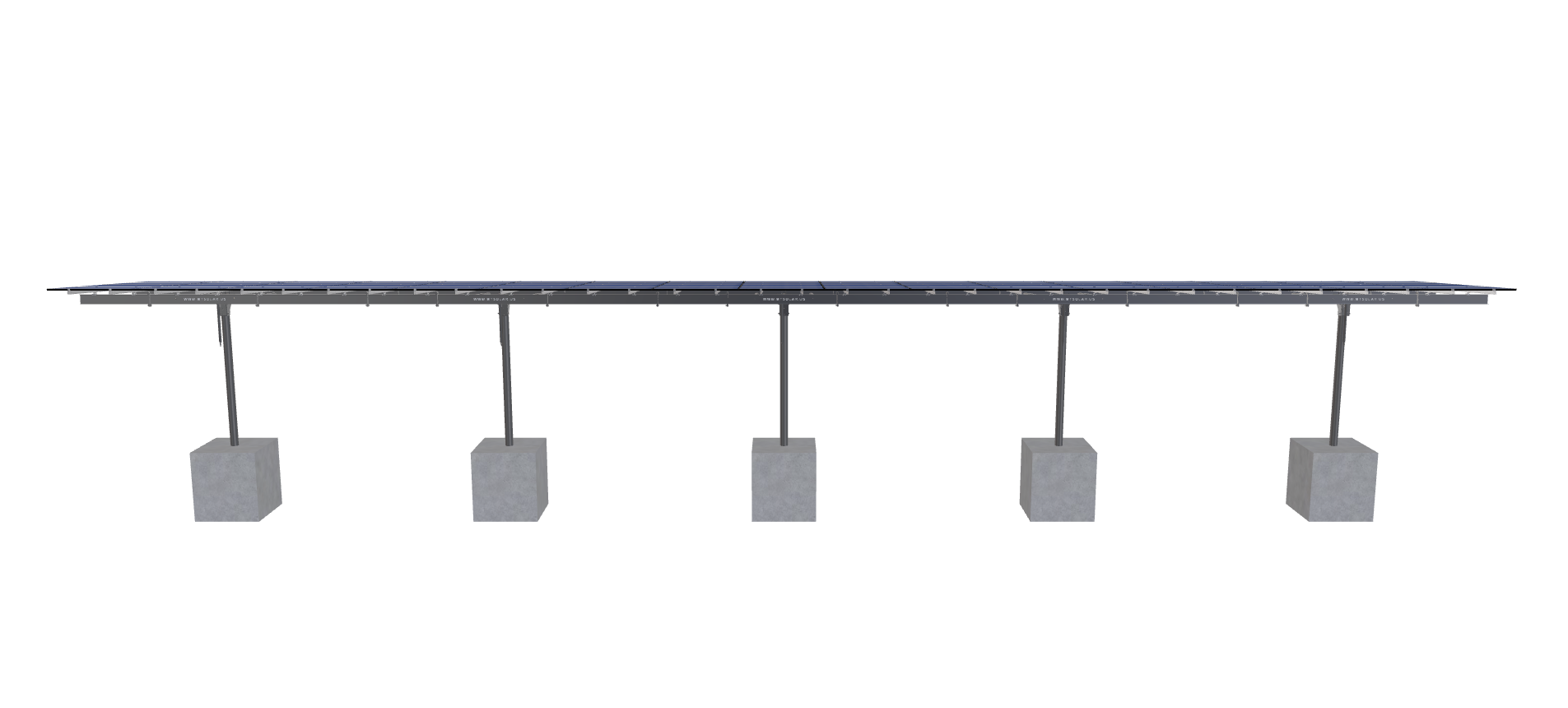

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.79 inches by 44.65 inches and an array layout of 17 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Autobase Tampa
$23,166.85
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.79 inches by 44.65 inches and an array layout of 17 wide by 4 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

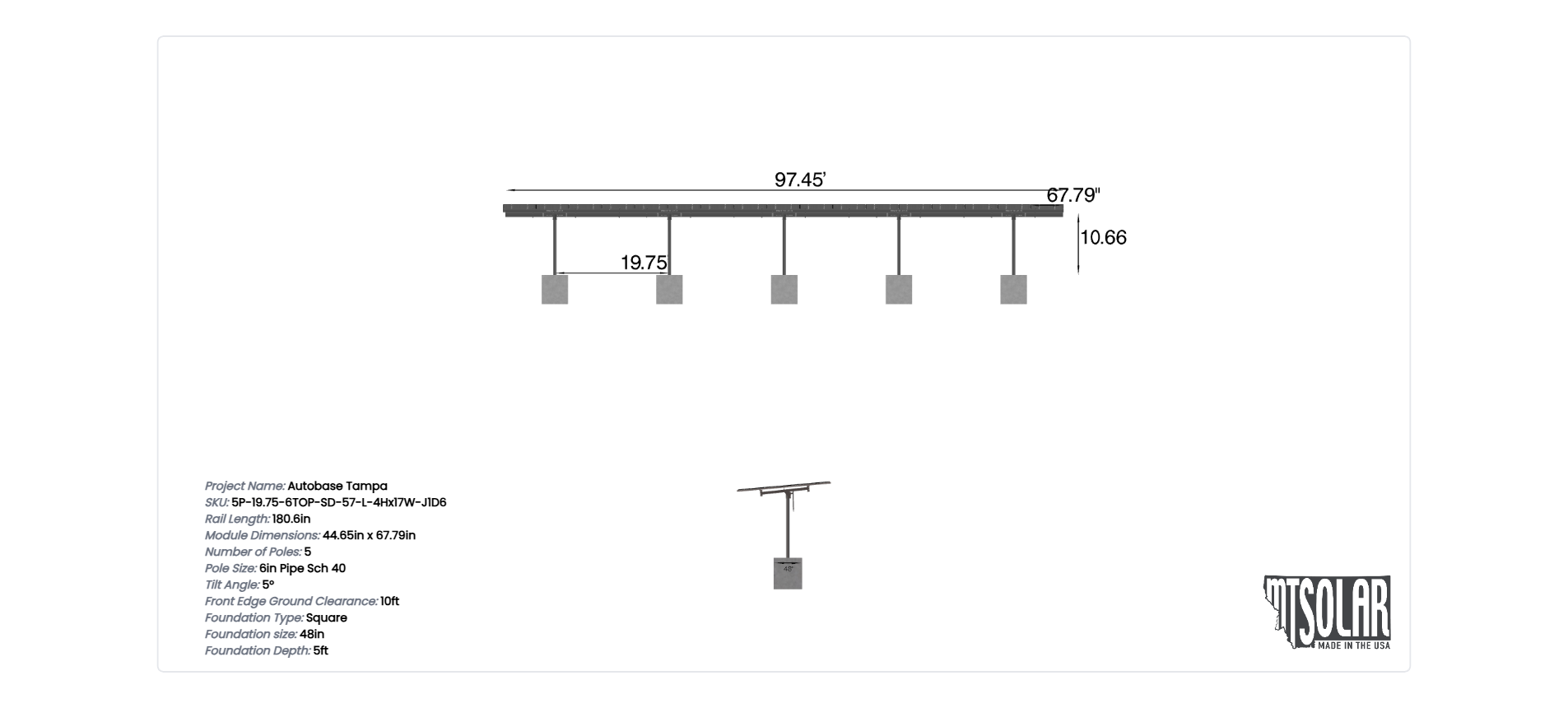

| Weight | 3971.46 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-6TOP-SD-57-L-4HX17W-J1D6 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.66 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 1152.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1466.66 |
| ARRAY WIDTH | 97.45 |
| ARRAY HEIGHT | 15.05 |
| RAIL LENGTH | 180.60 |
| MODULE LENGTH | 67.79 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 96.00 |
| GROUND TO TOP | 11.31 |
| PROJECTED PANEL HEIGHT | 1.31 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | JAIME |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 5614031089.00 |
| PROJECT ID | AUTOBASE, TAMPA |
| SITE ADDRESS | 5305, GARDEN, LN, TAMPA, FL, 33610, USA |
| MODULE INFO | JKM430N-54HL4-B |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 17.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 23166.85 |
| TOTAL WEIGHT | 3971.46 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/dcdda036-06d2-4f36-a558-e14b5e501a52.pdf |
|
| ID | 12498.00 |
| 3D Solar link |
