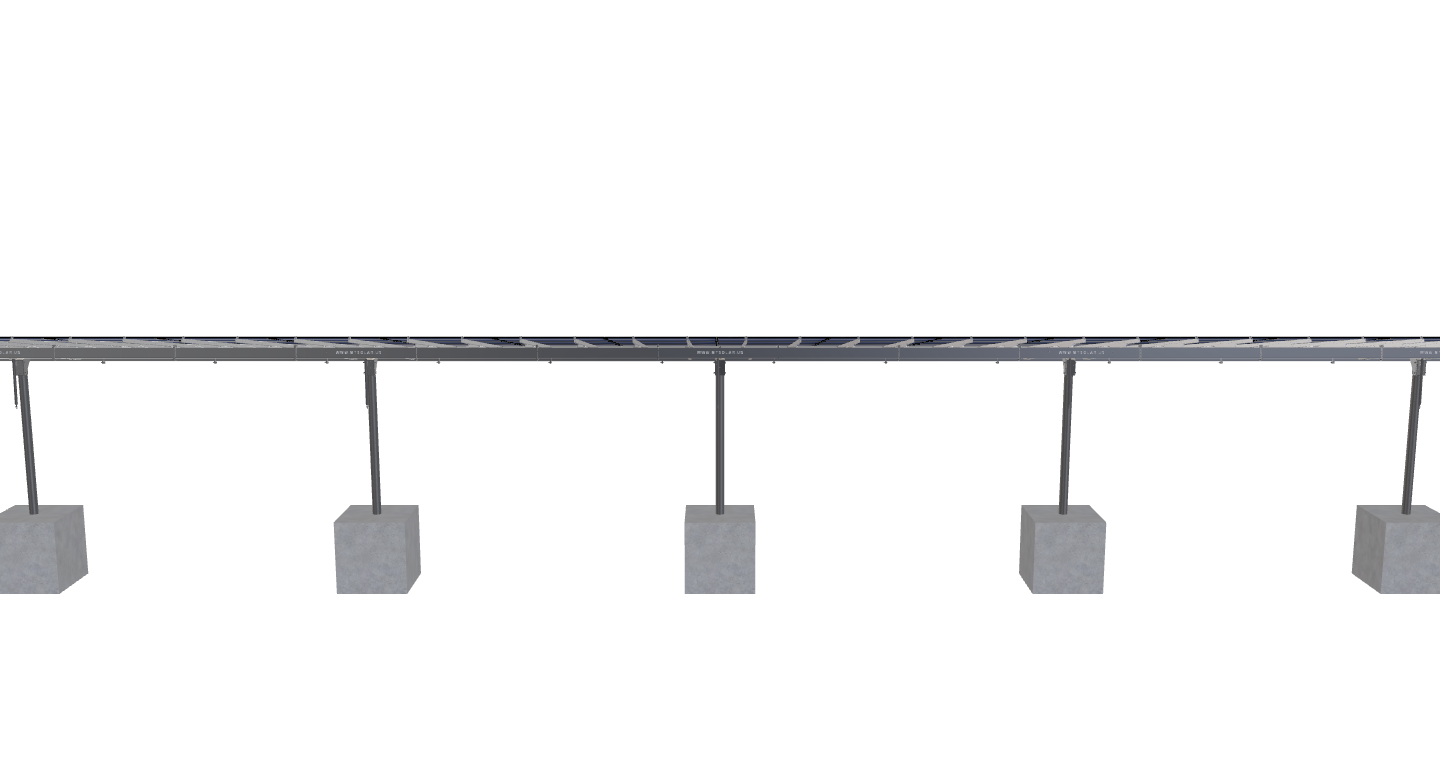

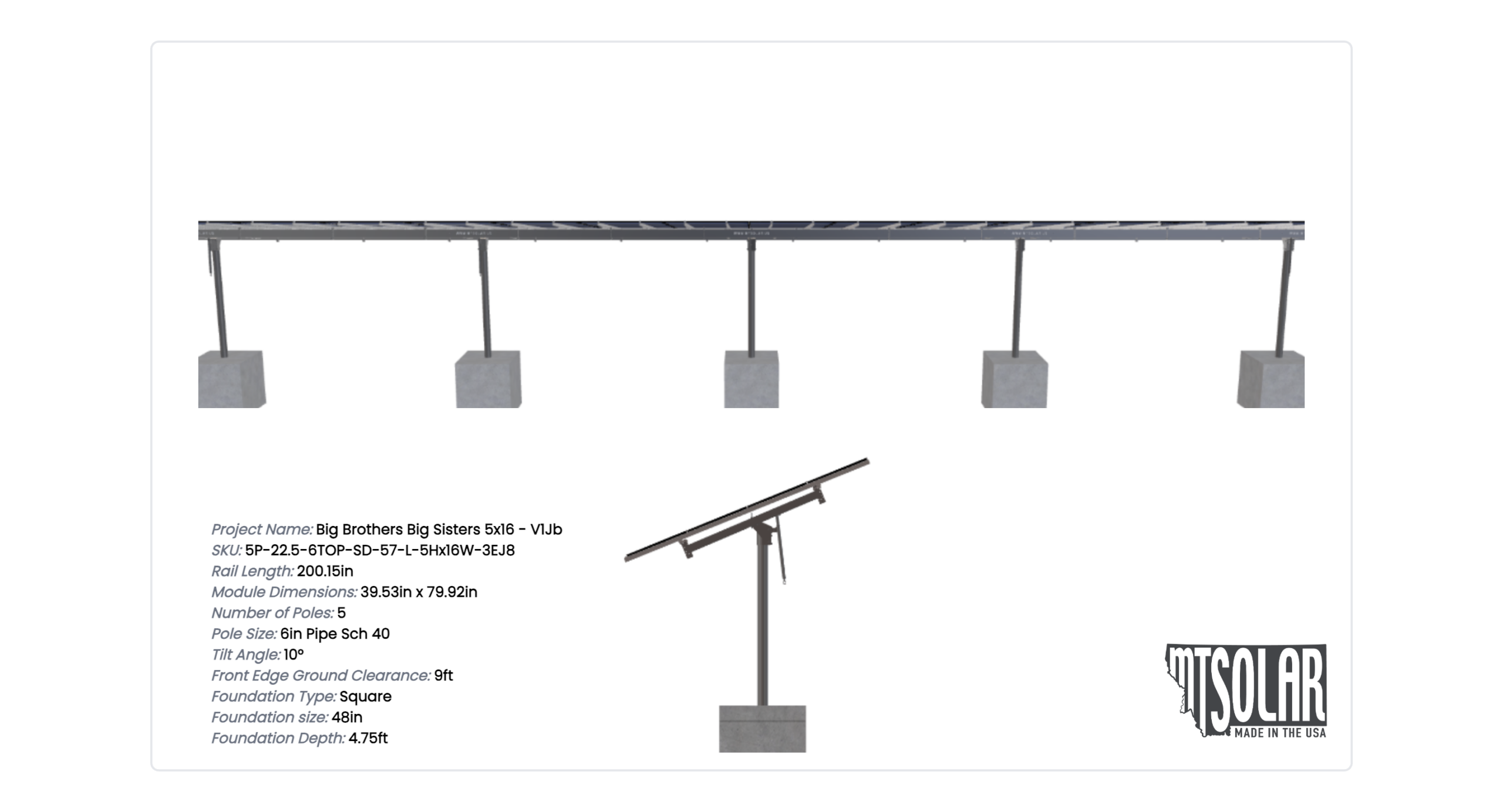

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.92 inches by 39.53 inches and an array layout of 16 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Big Brothers Big Sisters 5×16 – V1Jb
$26,803.23
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.92 inches by 39.53 inches and an array layout of 16 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5055.04 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-SD-57-L-5HX16W-3EJ8 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 10.45 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 1284.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1799.57 |
| ARRAY WIDTH | 107.89 |
| ARRAY HEIGHT | 16.68 |
| RAIL LENGTH | 200.15 |
| MODULE LENGTH | 79.92 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 107.00 |
| GROUND TO TOP | 11.90 |
| PROJECTED PANEL HEIGHT | 2.90 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | BIG, BROTHERS, BIG, SISTERS, 5X16, -, V1JB |
| SITE ADDRESS | 4047, N, FRESNO, ST, FRESNO, CA, 93726, USA |
| MODULE INFO | |
| MODULE WIDTH | 39.53 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 16.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 26803.23 |
| TOTAL WEIGHT | 5055.04 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/ead8c0b8-33cc-4705-ab80-027d2bbe2372.pdf |
|
| ID | 10919.00 |
| 3D Solar link |
