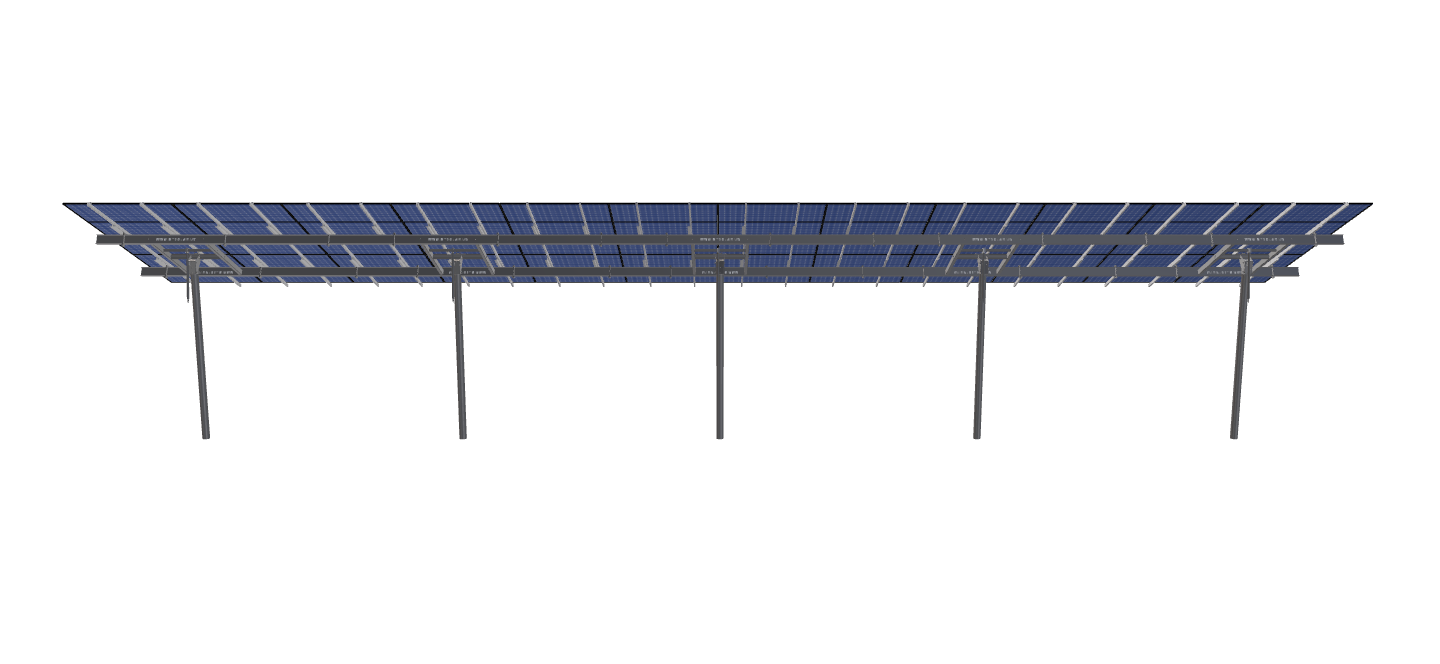

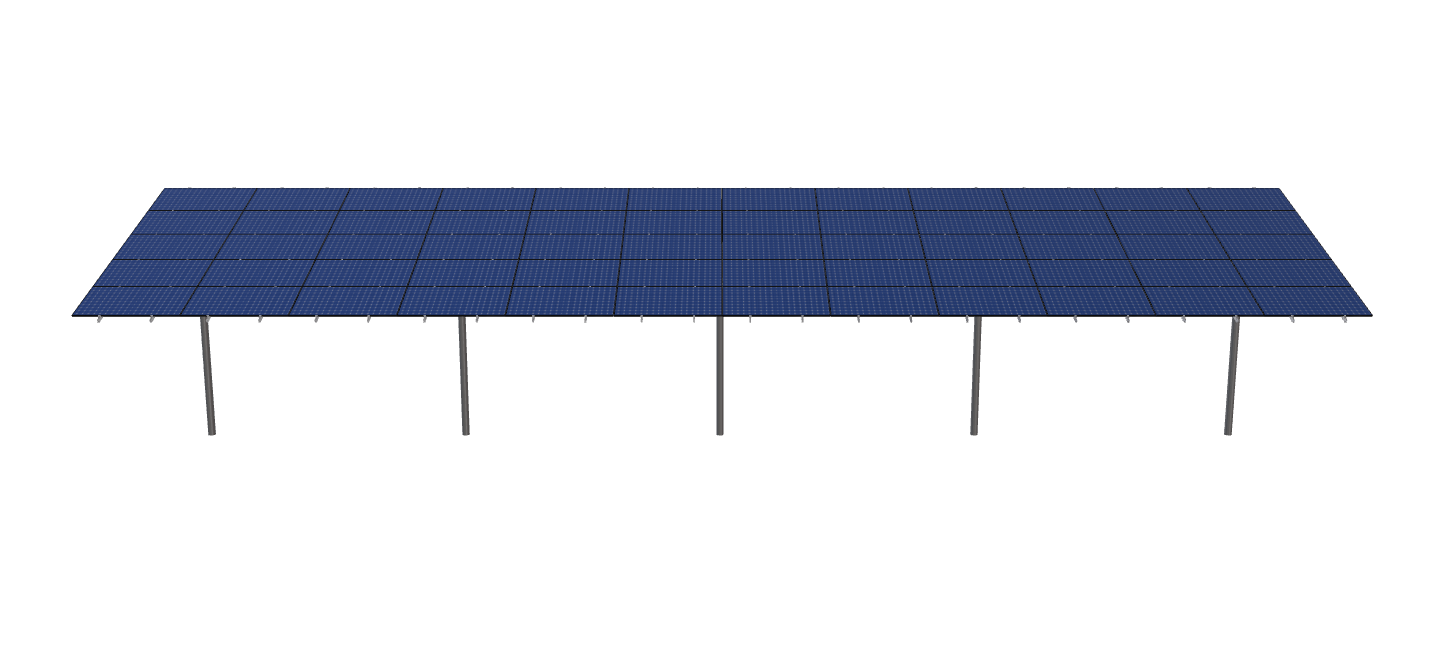

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 12 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Bluff Dwellings 5×12 4ftround – V2Jb
$27,035.38
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 12 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5055.99 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-8TOP-HD-24-L-5HX12W-FDBH |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 13.98 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1706.11 |
| ARRAY WIDTH | 90.69 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 230.00 |
| MODULE LENGTH | 89.69 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 17.95 |
| PROJECTED PANEL HEIGHT | 7.95 |
| WIND SPEED OVERRIDE | 97.00 |
| SNOW LOAD OVERRIDE | 17.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | BLUFF, DWELLINGS, 5X12, 4FTROUND, -, V2JB |
| SITE ADDRESS | 2625, US-191, BLUFF, UT, 84512, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 27035.38 |
| TOTAL WEIGHT | 5055.99 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/d3a50db6-0de4-4ab1-8437-a0884f4eab2e.pdf |
|
| ID | 13972.00 |
| 3D Solar link |
