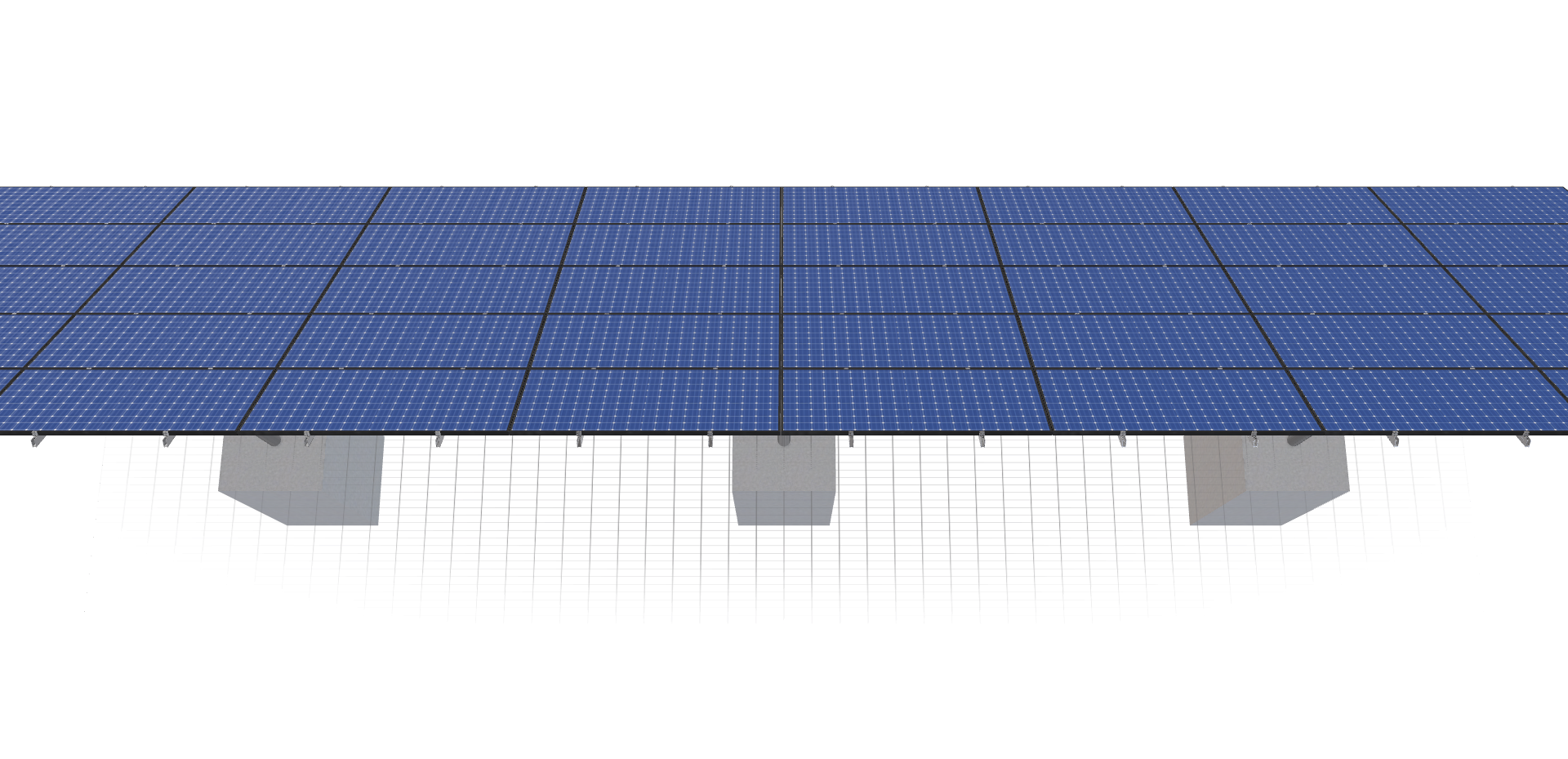

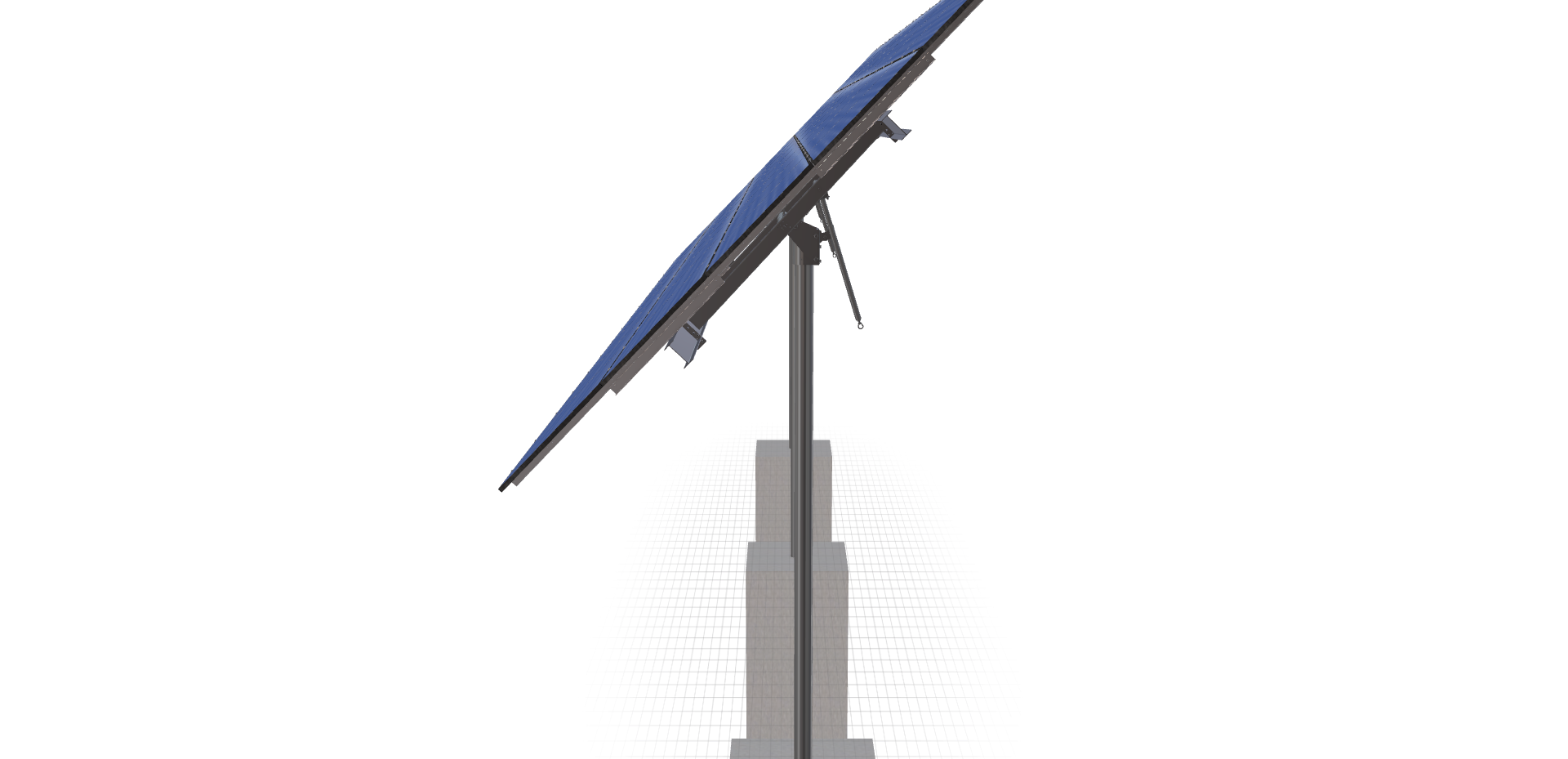

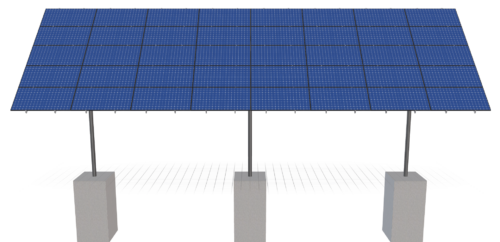

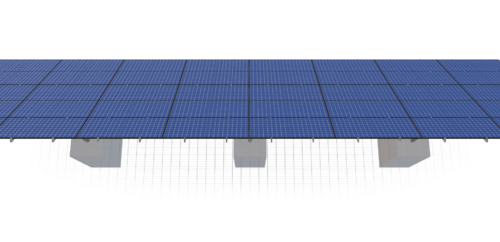

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68504 inches by 44.64567 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
BP 530W 670 Arrays
$17,860.30
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68504 inches by 44.64567 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3628.37 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-10TOP-XD-45-L-5HX8W-I2C0 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 16.77 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 9.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1137.23 |
| ARRAY WIDTH | 60.46 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.73 |
| MODULE LENGTH | 89.69 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 23.46 |
| PROJECTED PANEL HEIGHT | 13.38 |
| PROJECT ID | BP, 530W, 670, ARRAYS |
| SITE ADDRESS | RD, 307, ELK, CREEK, CA, 95939, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 99.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 17860.30 |
| TOTAL WEIGHT | 3628.37 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/43cb8bb6-89f0-46ba-a8a2-8feb540e7d28.pdf |
|
| ID | 875.00 |
| 3D Solar link |
