This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 39.1 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

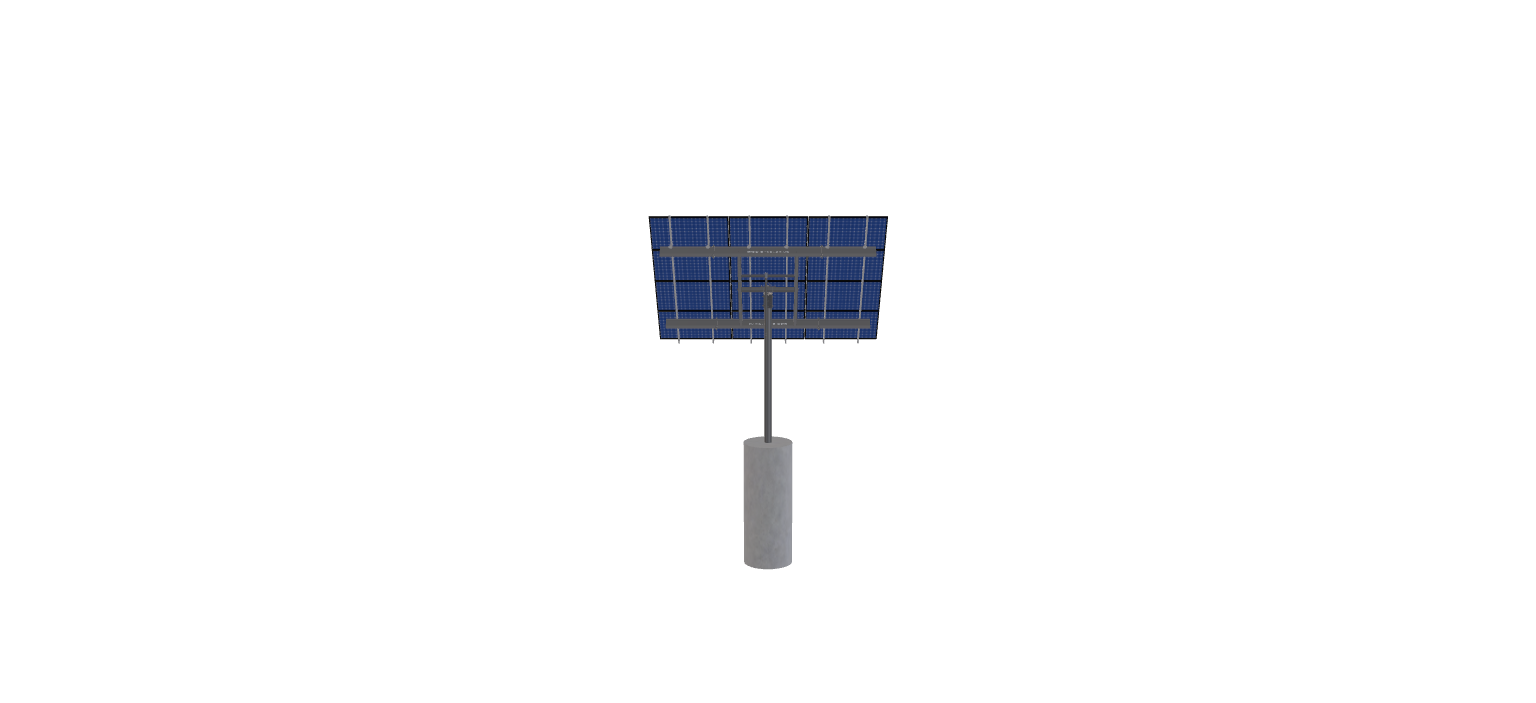

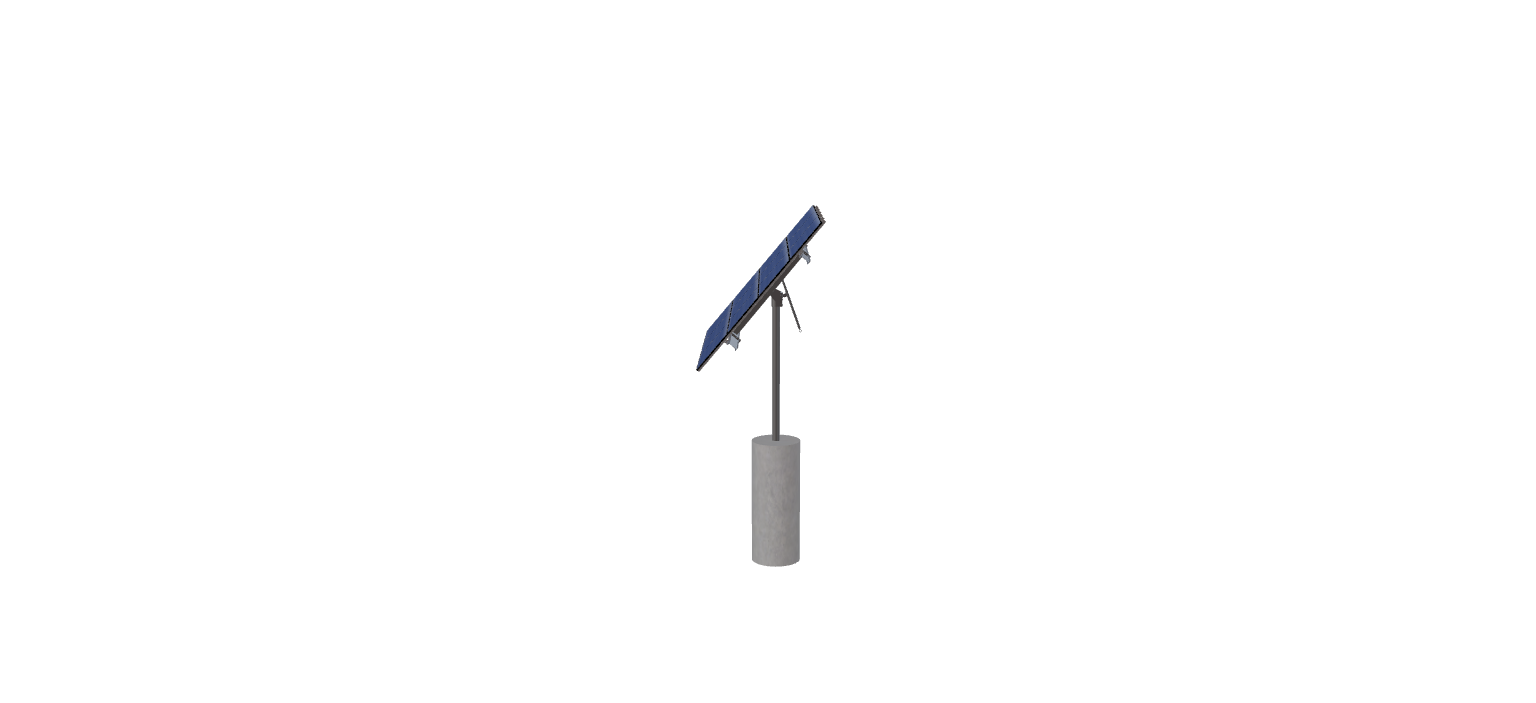

See 3D Model Here
Brian Bell
$4,056.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 39.1 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 663.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-45-L-4HX3W-600C |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 11.06 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 9.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 1.00 |
| MODULE AREA | 217.80 |
| ARRAY WIDTH | 16.50 |
| ARRAY HEIGHT | 13.20 |
| RAIL LENGTH | 158.40 |
| MODULE LENGTH | 65.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 16.05 |
| PROJECTED PANEL HEIGHT | 9.98 |
| PROJECT ID | BRIAN, BELL |
| SITE ADDRESS | 93HWVR8G+RC |
| MODULE WIDTH | 39.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 3863.51 |
| TOTAL WEIGHT | 663.66 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/e9dc2b35-9942-45a9-8d90-1e2c0e19fbae.pdf |
|
| ID | 5183.00 |
| 3D Solar link |
