Bristol Head v3

$10,837.35

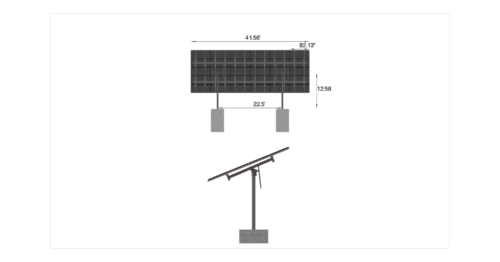

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-22.5-8TOP-HD-57-L-5Hx6W-18DE Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.13 inches by 41.5 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

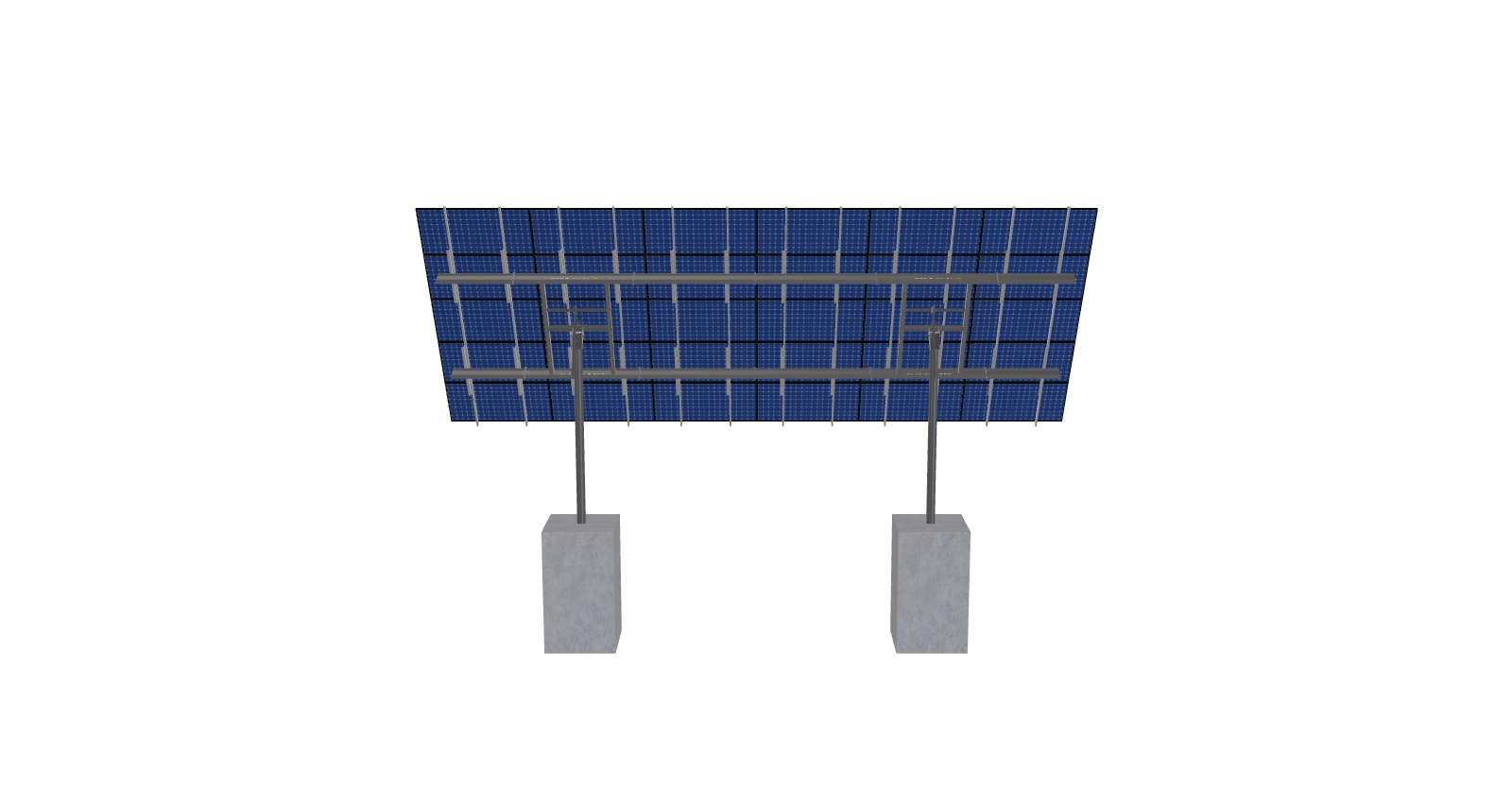

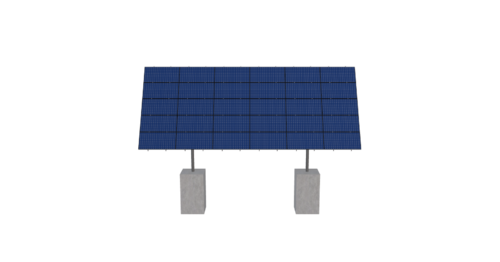

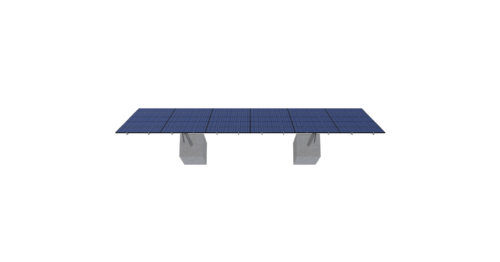

See 3D Model Here

Additional information

Weight 2192.82 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-8TOP-HD-57-L-5HX6W-18DE

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

12.58

WING SPAN

57.00

MAX FOUNDATION DEPTH

8.00

TILT ANGLE

60.00

CANTILEVER

474.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

727.39

ARRAY WIDTH

41.56

ARRAY HEIGHT

17.50

RAIL LENGTH

210.00

MODULE LENGTH

82.13

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

20.07

PROJECTED PANEL HEIGHT

14.98

PROJECT ID

BRISTOL, HEAD, V3

SITE ADDRESS

BRISTOL, HEAD, DR, COLORADO, 81130, USA

MODULE WIDTH

41.50

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

163.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

10837.35

TOTAL WEIGHT

2192.82

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/fadd1702-48fe-4b22-a426-ffba4d98dbf7.pdf

ID

6228.00
