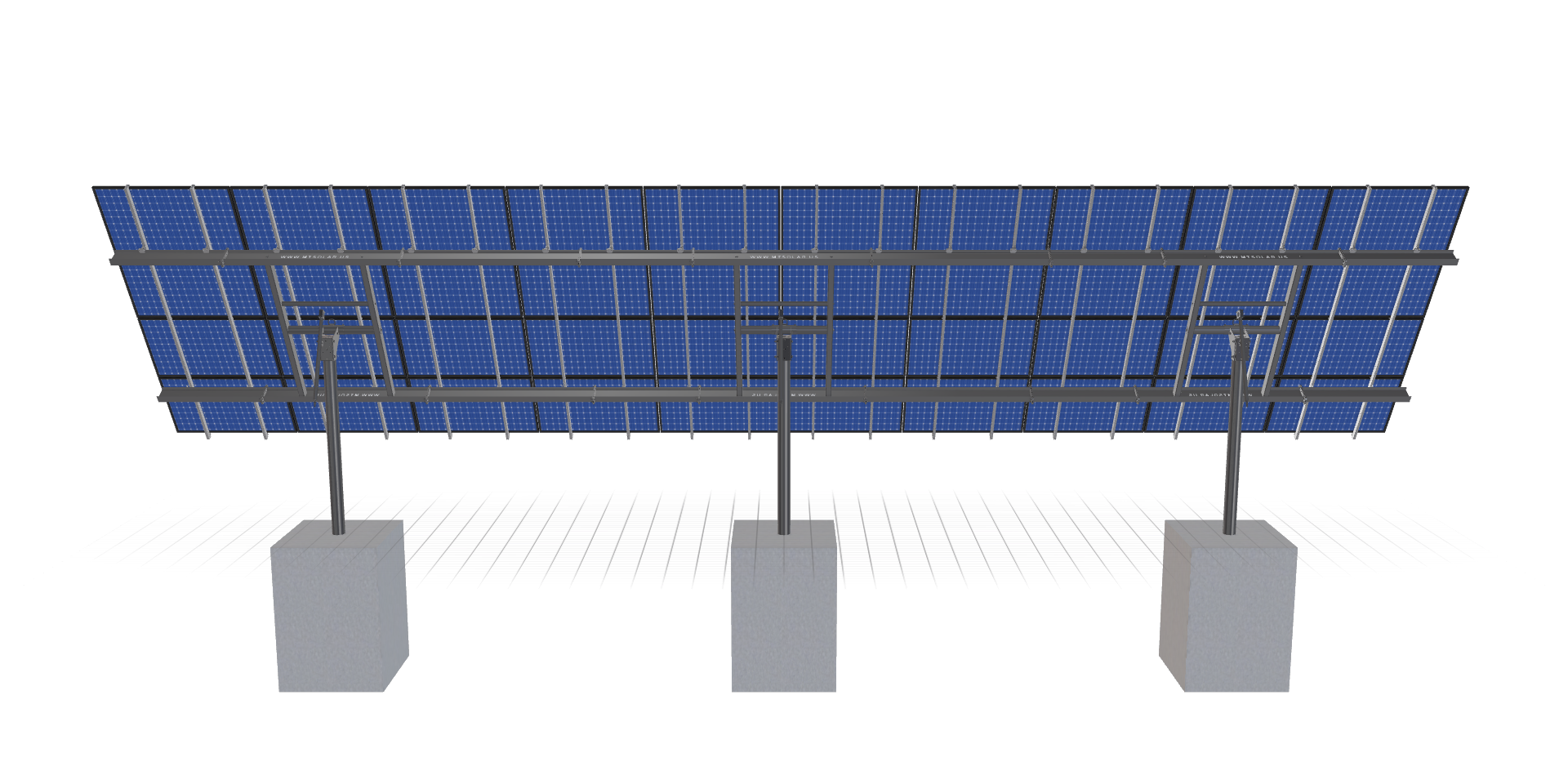

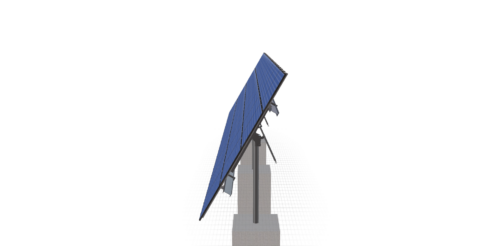

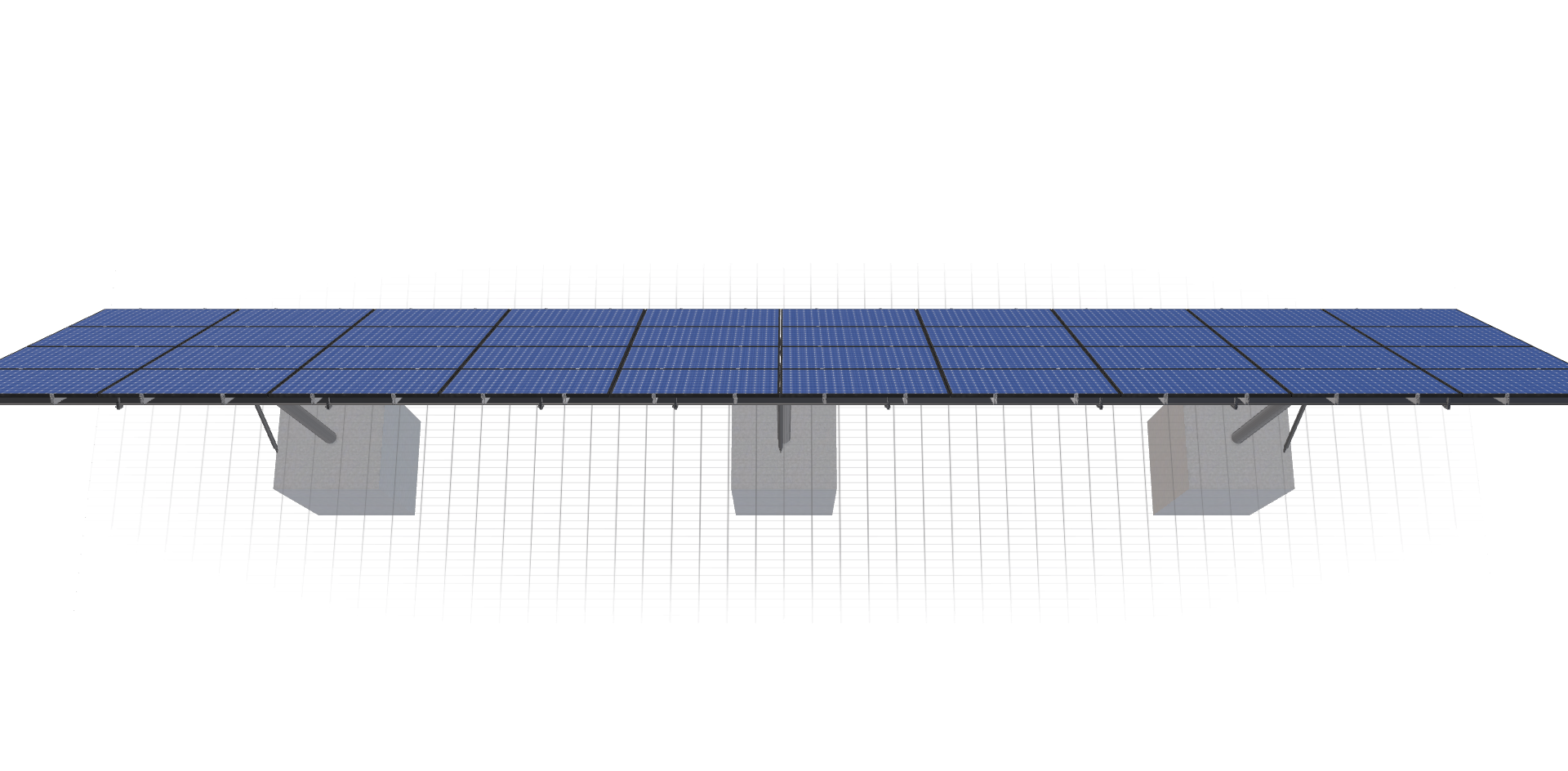

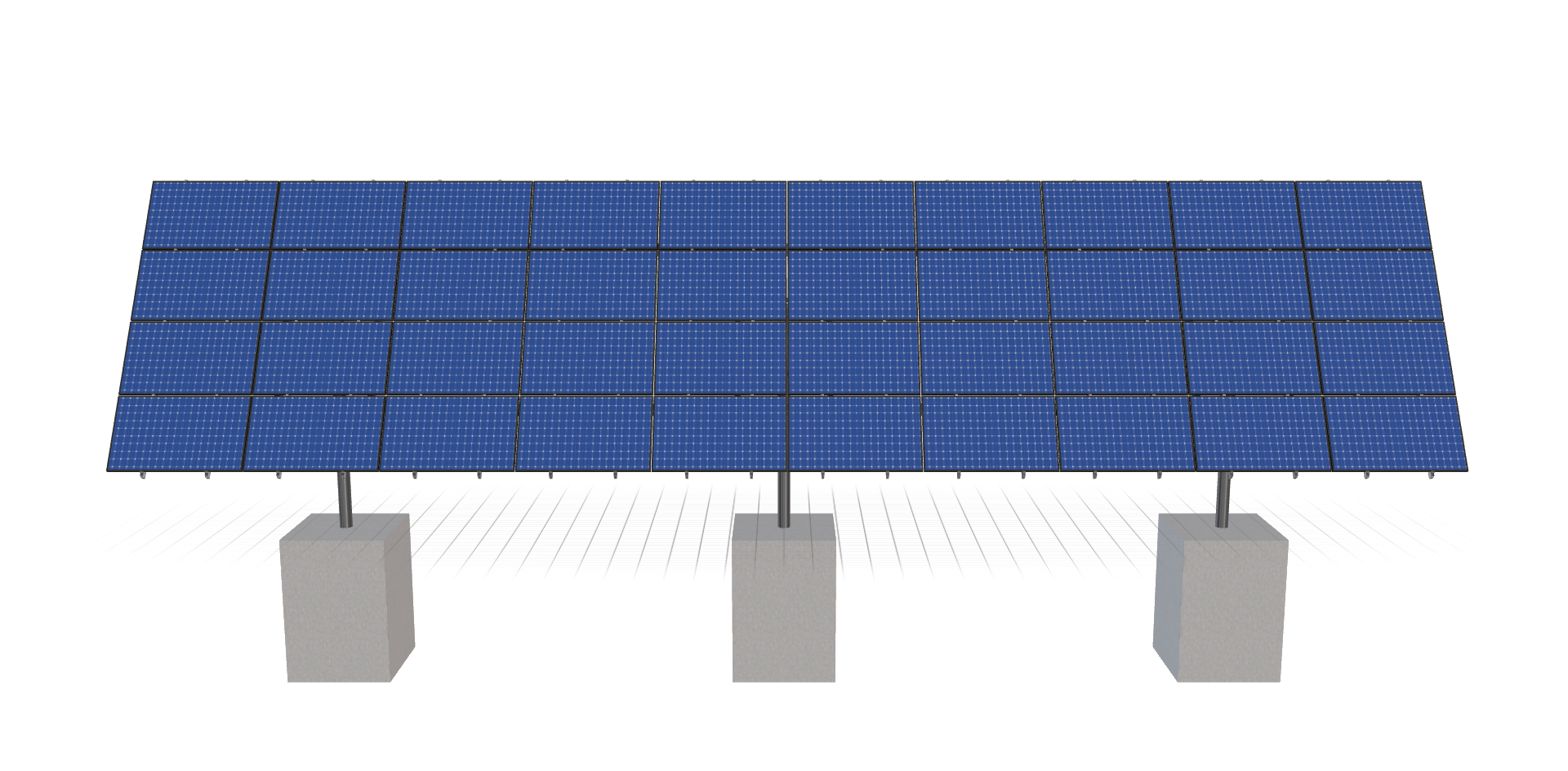

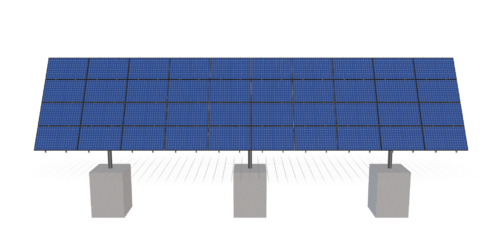

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.6 inches by 41.14 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Buckley Residence
$14,774.76
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.6 inches by 41.14 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2707.89 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-HD-57-L-4HX10W-5JJ9 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.01 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 3.00 |
| MODULE AREA | 793.47 |
| ARRAY WIDTH | 57.17 |
| ARRAY HEIGHT | 13.88 |
| RAIL LENGTH | 166.56 |
| MODULE LENGTH | 67.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 14.95 |
| PROJECTED PANEL HEIGHT | 11.88 |
| PROJECT ID | BUCKLEY, RESIDENCE |
| SITE ADDRESS | 137, US-89, LIVINGSTON, MT, 59047, USA |
| MODULE WIDTH | 41.14 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 14774.76 |
| TOTAL WEIGHT | 2707.89 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/8ec83982-7c7c-4fd0-af47-677248bef80d.pdf |
|
| ID | 1183.00 |
| 3D Solar link |
