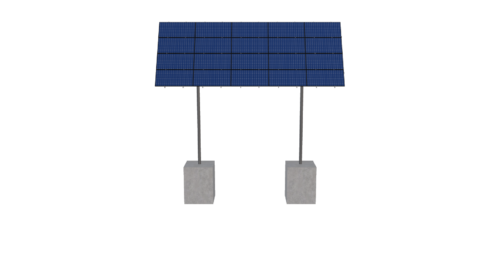

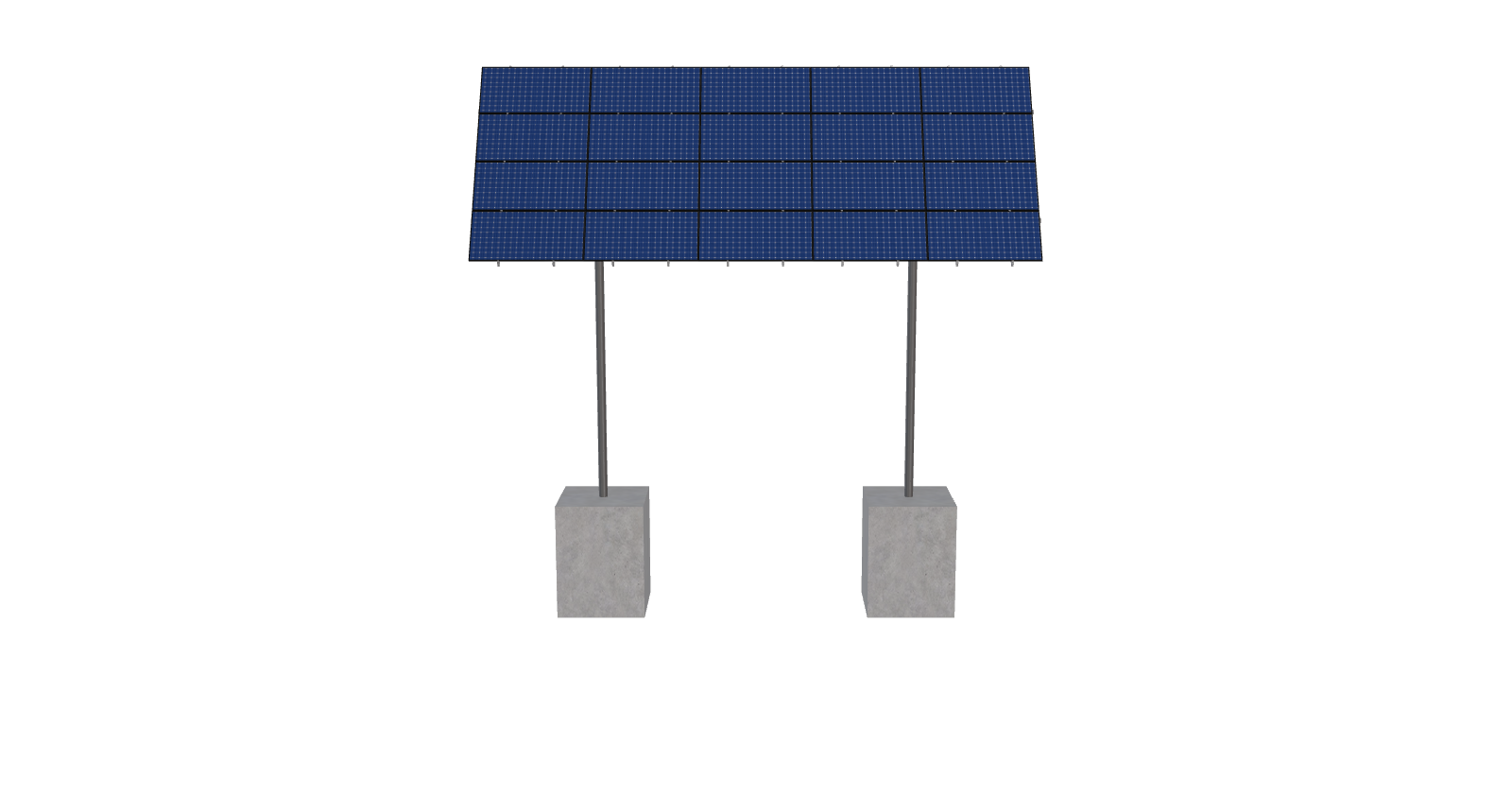

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.86 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
BVWT REV2 102423CU
$9,671.90
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.86 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1705.3 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-10TOP-HD-45-L-4HX5W-181A |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 20.97 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 15.00 |
| NO POLES | 2.00 |
| MODULE AREA | 479.32 |
| ARRAY WIDTH | 34.77 |
| ARRAY HEIGHT | 13.79 |
| RAIL LENGTH | 165.44 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 26.87 |
| PROJECTED PANEL HEIGHT | 11.80 |
| PROJECT ID | BVWT, REV2, 102423CU |
| SITE ADDRESS | CXX9+XXX, BEAR, VALLEY, CA, 95223, USA |
| MODULE WIDTH | 40.86 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SANDY, GRAVEL |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 60.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 390.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 9211.33 |
| TOTAL WEIGHT | 1705.30 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b5bfeddf-b6bd-4b8f-bcd7-c979c5d22abe.pdf |
|
| ID | 3451.00 |
| 3D Solar link |
