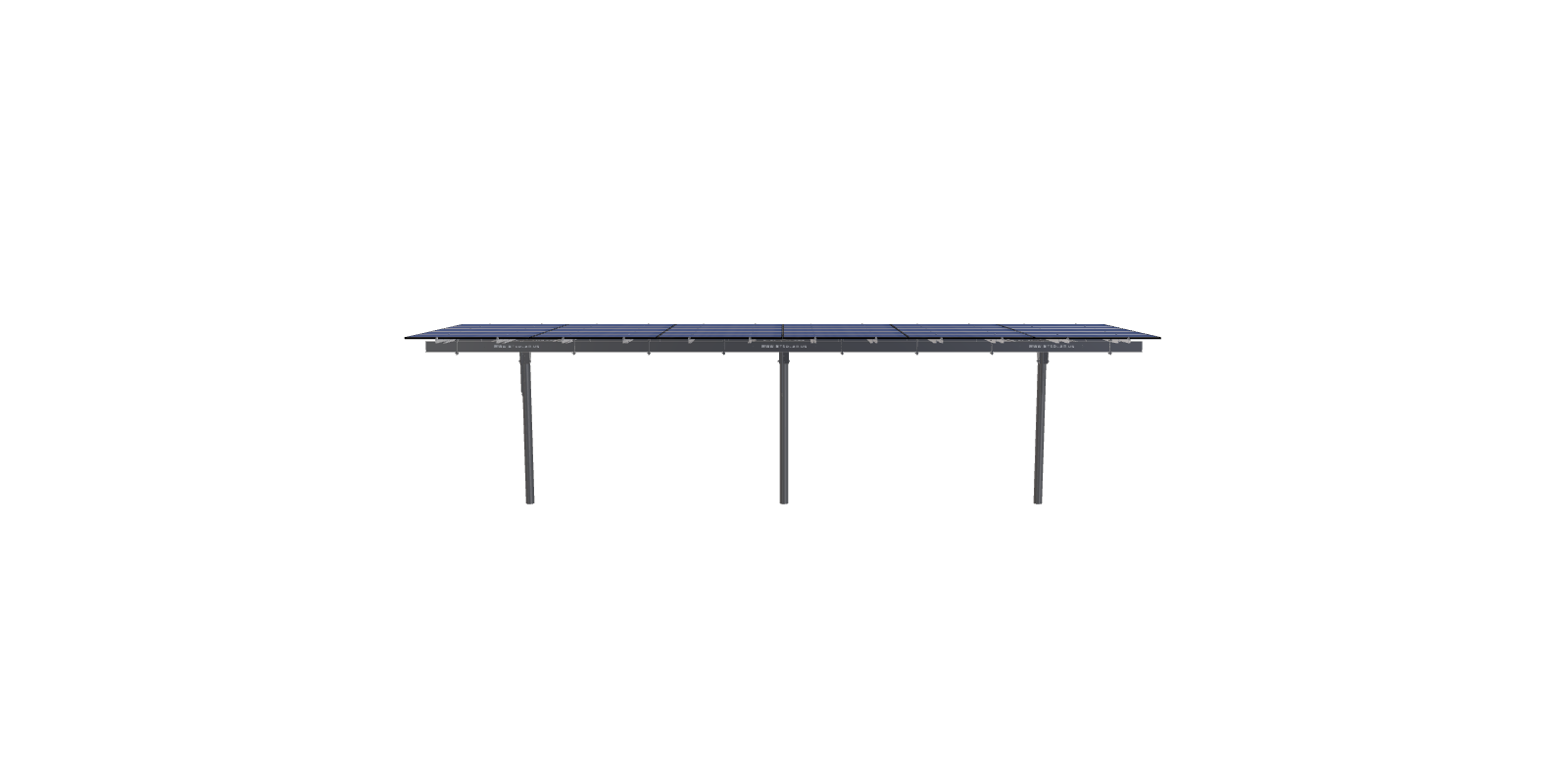

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91.14 inches by 40 inches and an array layout of 6 wide by 5 high.

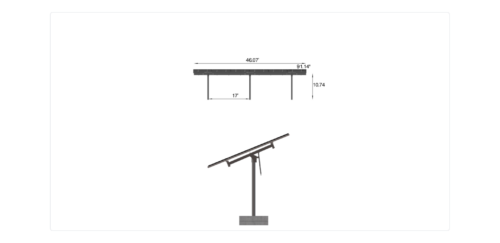

This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Bybee Lakes Hope Center trina 480 5×6
$12,595.67
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91.14 inches by 40 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2321.64 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-SD-24-L-5HX6W-H8E7 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 10.74 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 777.43 |
| ARRAY WIDTH | 46.07 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 91.14 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 11.46 |
| PROJECTED PANEL HEIGHT | 1.45 |
| PROJECT ID | BYBEE, LAKES, HOPE, CENTER, TRINA, 480, 5X6 |
| SITE ADDRESS | 14355, N, BYBEE, LAKE, CT, PORTLAND, OR, 97203, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 92.00 |
| SNOW LOAD OVERRIDE | 20.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 11995.88 |
| TOTAL WEIGHT | 2321.64 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/43957f01-92f2-437d-8d3b-16e439c4fa07.pdf |
|
| ID | 2101.00 |
| 3D Solar link |
