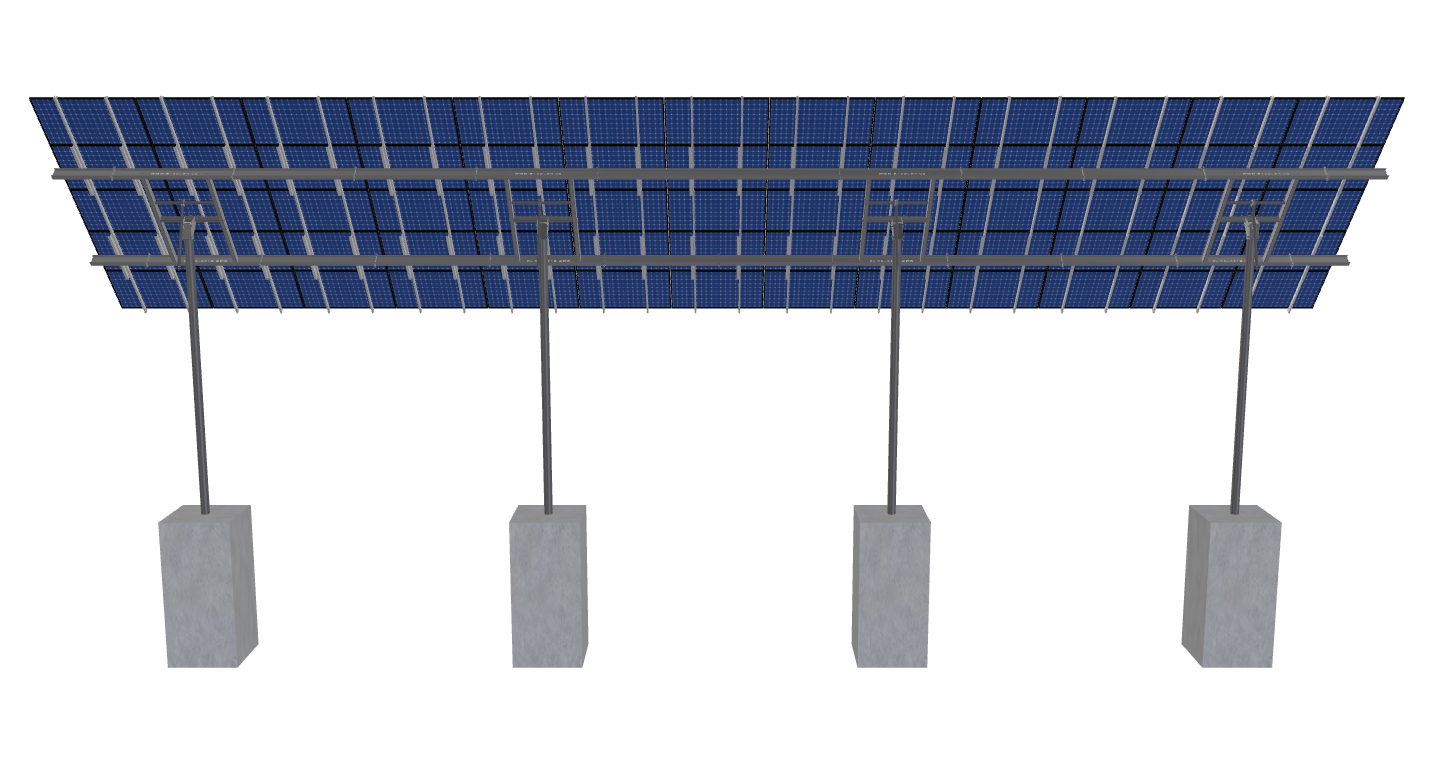

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.1 inches by 44.6 inches and an array layout of 13 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Bzn Trail III – V1JB
$23,833.54
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.1 inches by 44.6 inches and an array layout of 13 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4645.84 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

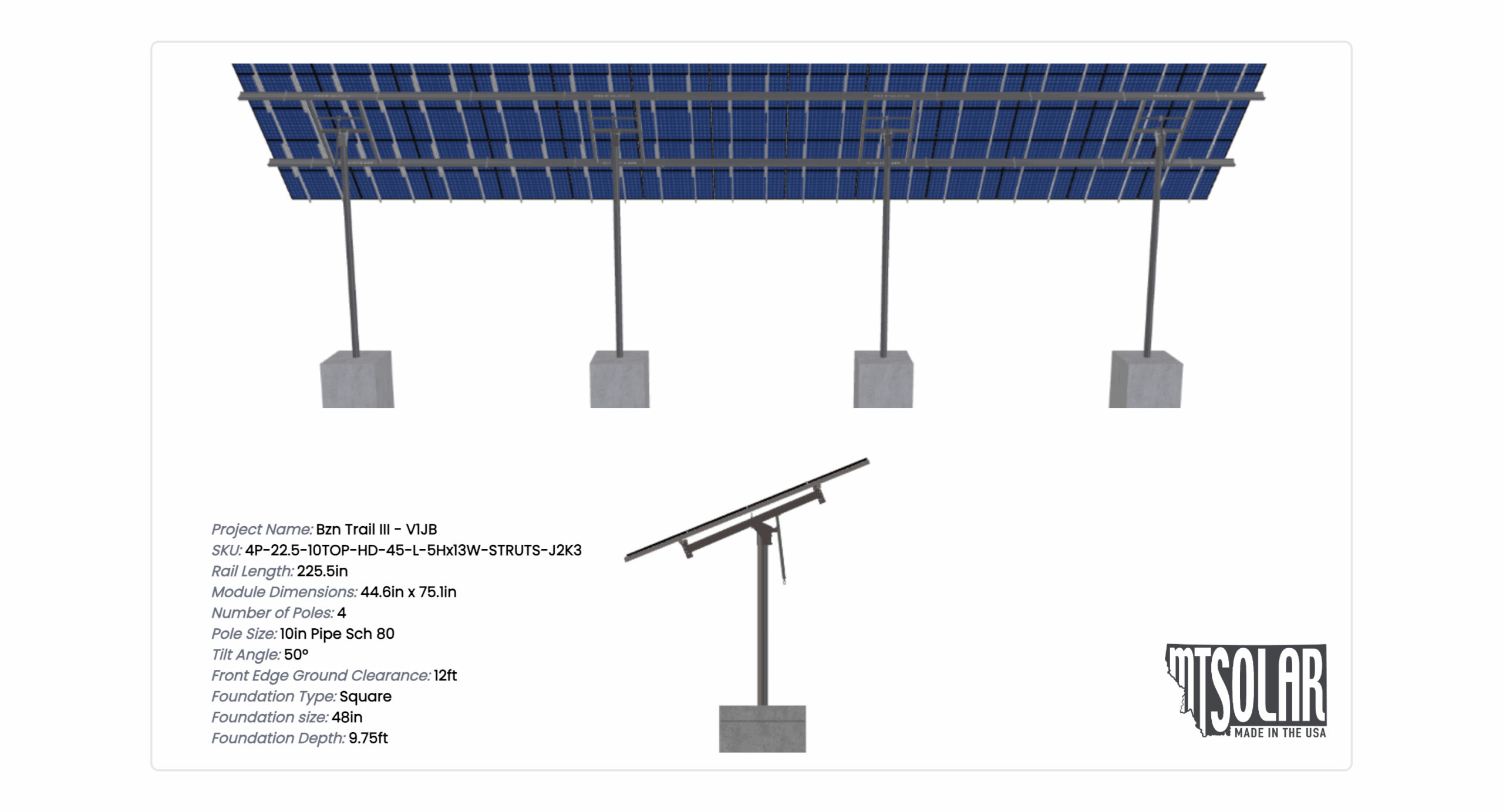

| SKU CODE | 4P-22.5-10TOP-HD-45-L-5HX13W-STRUTS-J2K3 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 19.20 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 9.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 990.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1549.22 |
| ARRAY WIDTH | 82.44 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 75.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 82.50 |
| GROUND TO TOP | 26.40 |
| PROJECTED PANEL HEIGHT | 14.40 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 51.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | THOMAS |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | BZN, TRAIL, III, -, V1JB |
| SITE ADDRESS | 31842, FRONTAGE, RD, BOZEMAN, MT, 59715, USA |
| MODULE INFO | APTOS, DNA-120-BF10-460W |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 23833.54 |
| TOTAL WEIGHT | 4645.84 |
| TOTAL PALLETS | 4.00 |
