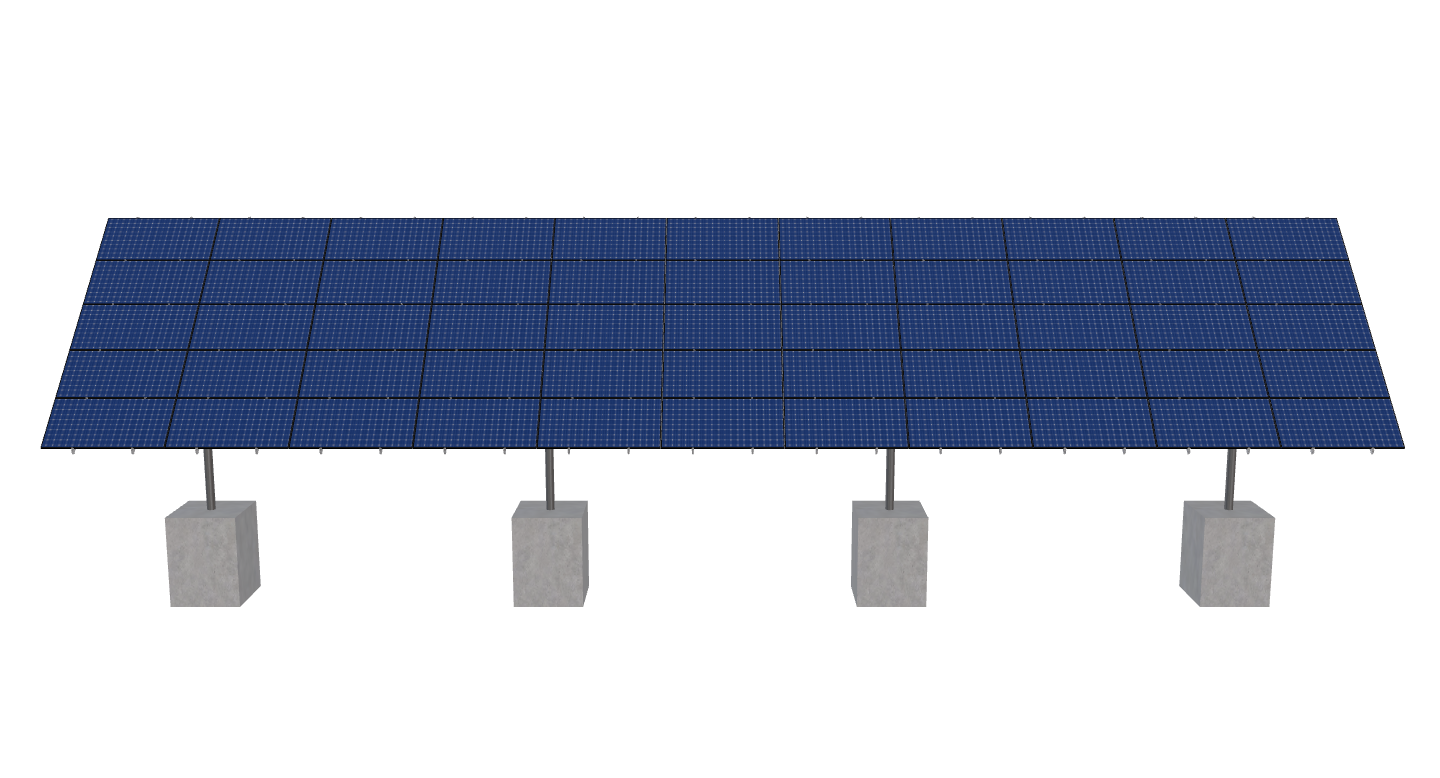

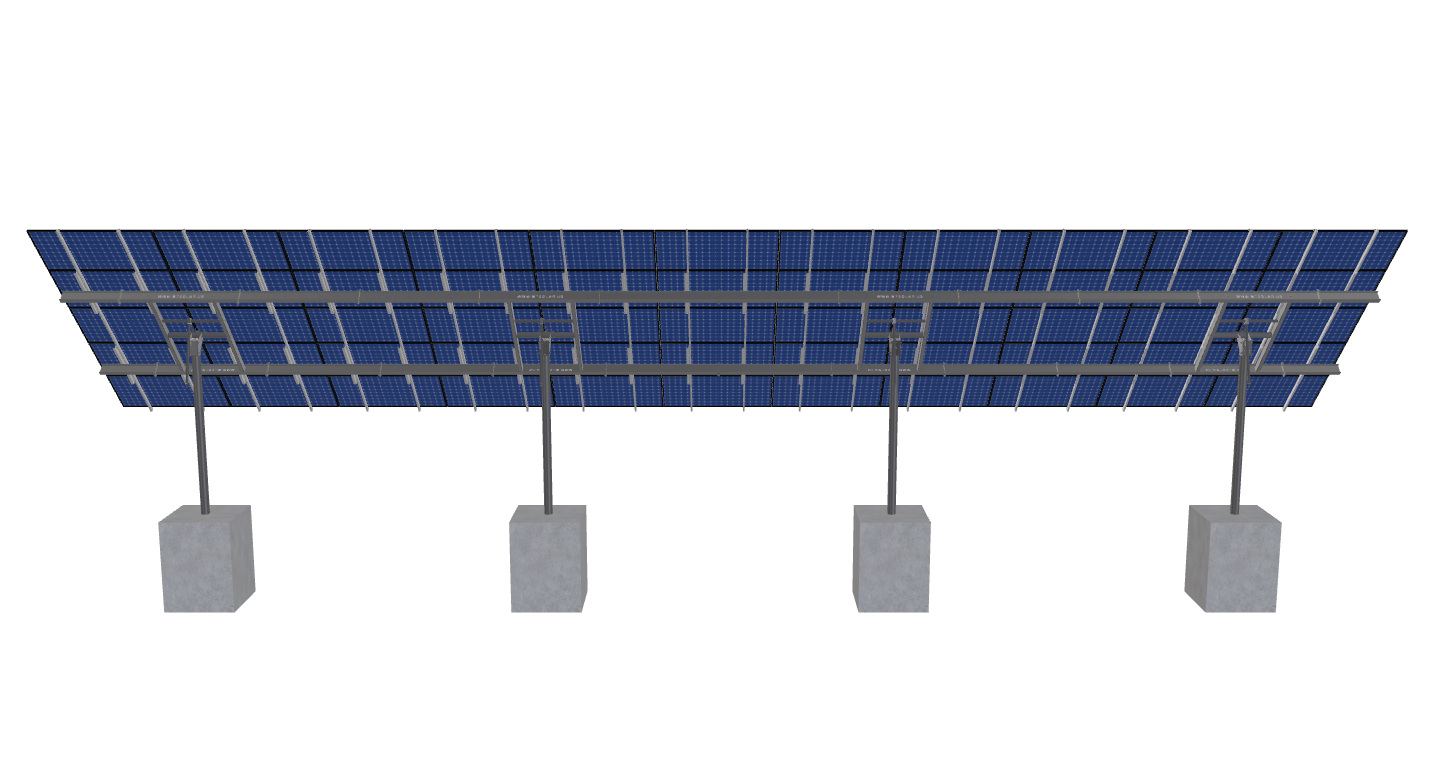

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 44.6 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

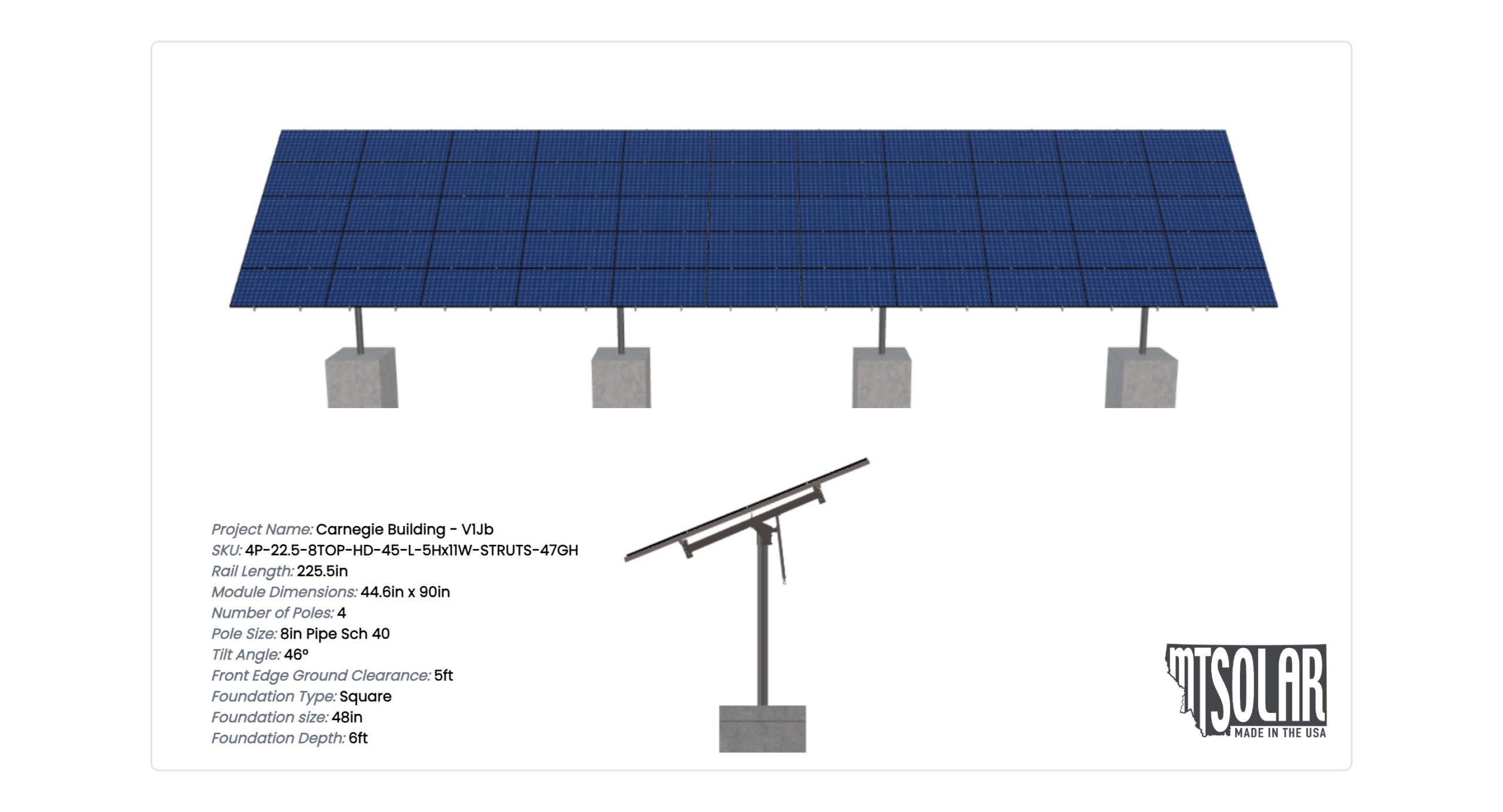

See 3D Model Here
Carnegie Building – V1Jb
$22,688.20
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 90 inches by 44.6 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4382.96 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-8TOP-HD-45-L-5HX11W-STRUTS-47GH |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.76 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 990.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1567.54 |
| ARRAY WIDTH | 83.42 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 90.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 82.50 |
| GROUND TO TOP | 18.52 |
| PROJECTED PANEL HEIGHT | 13.52 |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 54.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | CARNEGIE, BUILDING, -, V1JB |
| SITE ADDRESS | YREKA, CA, 96097, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 21607.81 |
| TOTAL WEIGHT | 4382.96 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/5b951323-86ec-49b7-a17a-a15becb07317.pdf |
|
| ID | 9695.00 |
| 3D Solar link |
