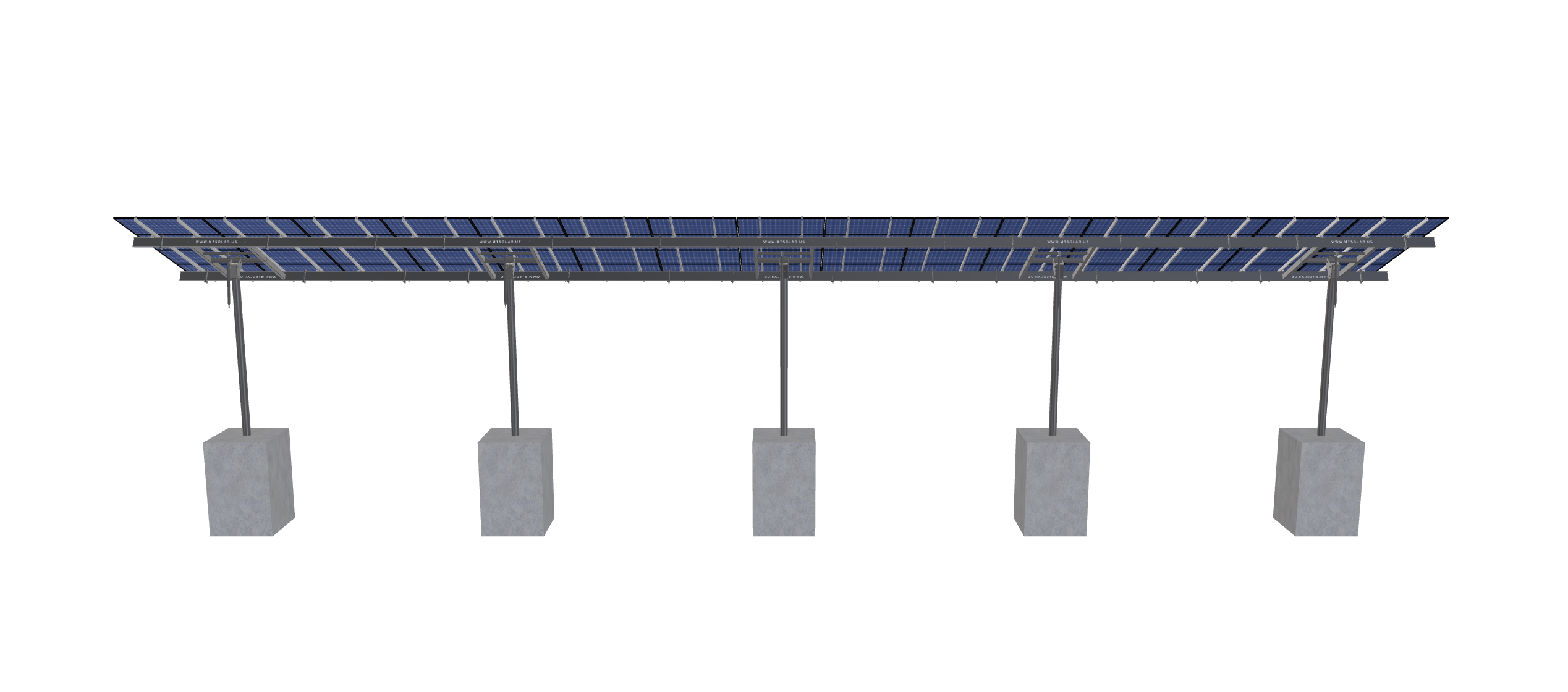

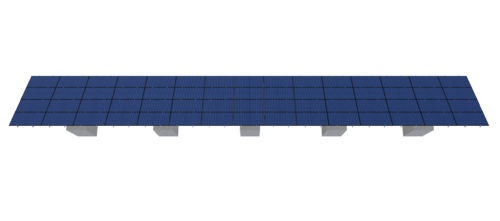

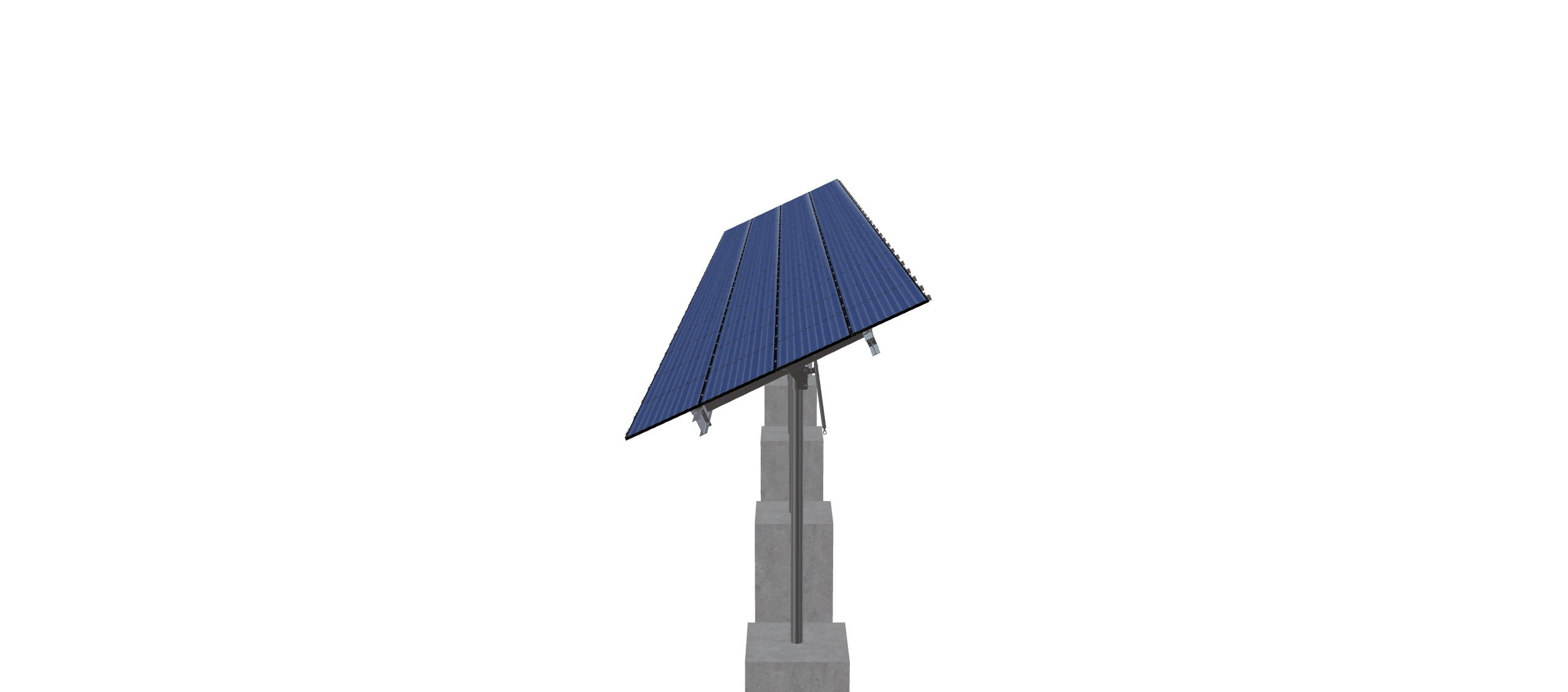

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 40 inches and an array layout of 15 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Chad Stone
$26,656.86
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 72 inches by 40 inches and an array layout of 15 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4972.450000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-8TOP-XD-24-L-4HX15W-73L1 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.85 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 1086.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1231.88 |
| ARRAY WIDTH | 91.25 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 72.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 90.50 |
| GROUND TO TOP | 15.67 |
| PROJECTED PANEL HEIGHT | 5.63 |
| PROJECT ID | CHAD, STONE |
| SITE ADDRESS | 12, MERCURY, LN, EMIGRANT, MT, 59027, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 26656.86 |
| TOTAL WEIGHT | 4972.45 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/632ad885-f85c-444b-a749-93bb5af7e5b8.pdf |
|
| ID | 2855.00 |
| 3D Solar link |
