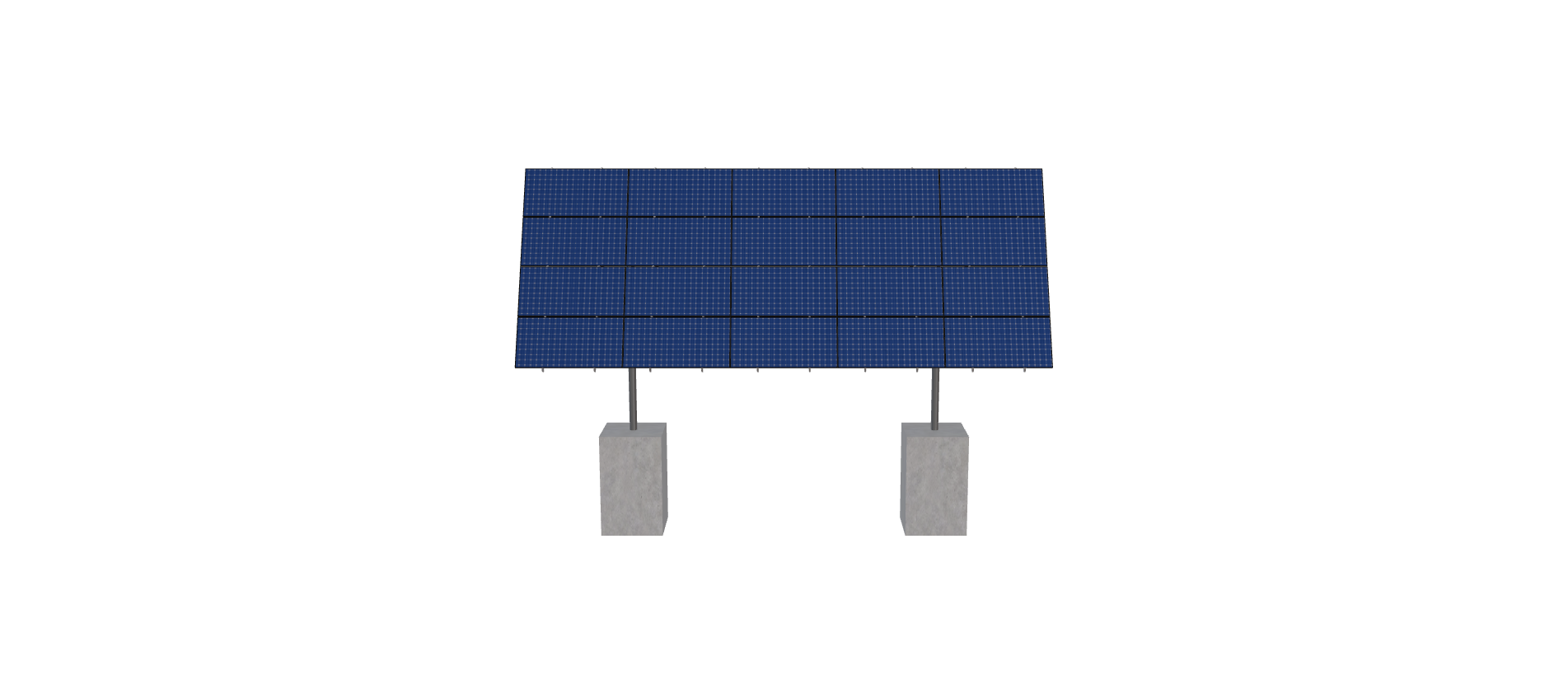

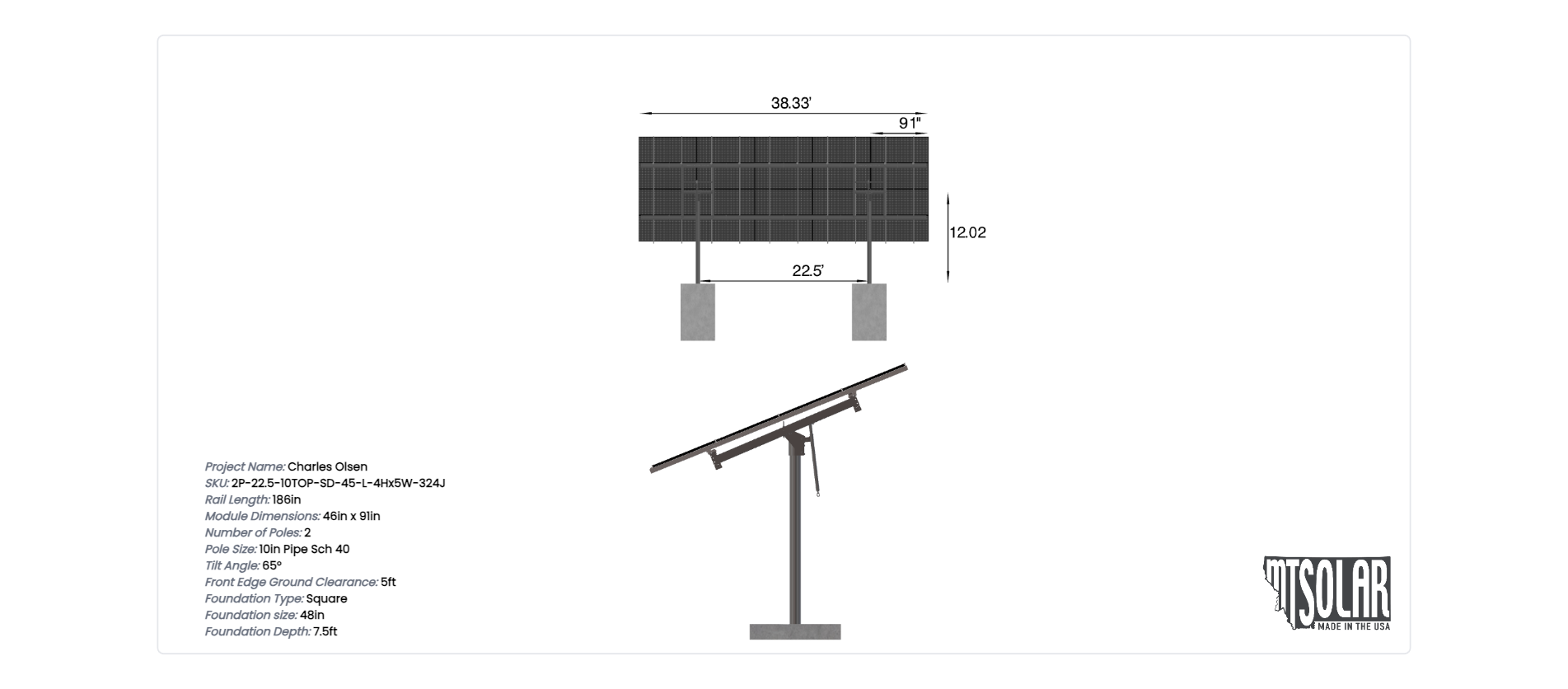

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91 inches by 46 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Charles Olsen
$8,767.41
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 91 inches by 46 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1509.1 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-10TOP-SD-45-L-4HX5W-324J |
| DUTY SIZE | SD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.02 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 594.17 |
| ARRAY WIDTH | 38.33 |
| ARRAY HEIGHT | 15.50 |
| RAIL LENGTH | 186.00 |
| MODULE LENGTH | 91.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 19.05 |
| PROJECTED PANEL HEIGHT | 14.05 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | TYLER, STEPHENSON |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 732-597-6657 |
| PROJECT ID | CHARLES, OLSEN |
| SITE ADDRESS | 10865, SCENIC, DR, IRON, RIVER, WI, 54847, USA |
| MODULE WIDTH | 46.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8349.91 |
| TOTAL WEIGHT | 1509.10 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/f3a58f2e-7be9-4ac2-879f-11c368a1603c.pdf |
|
| ID | 8791.00 |
| 3D Solar link |
