This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

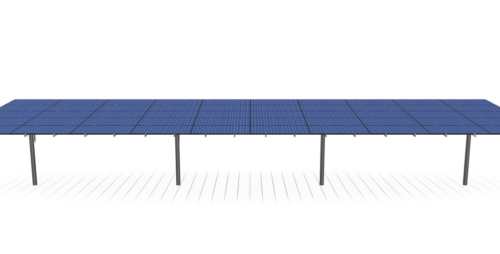

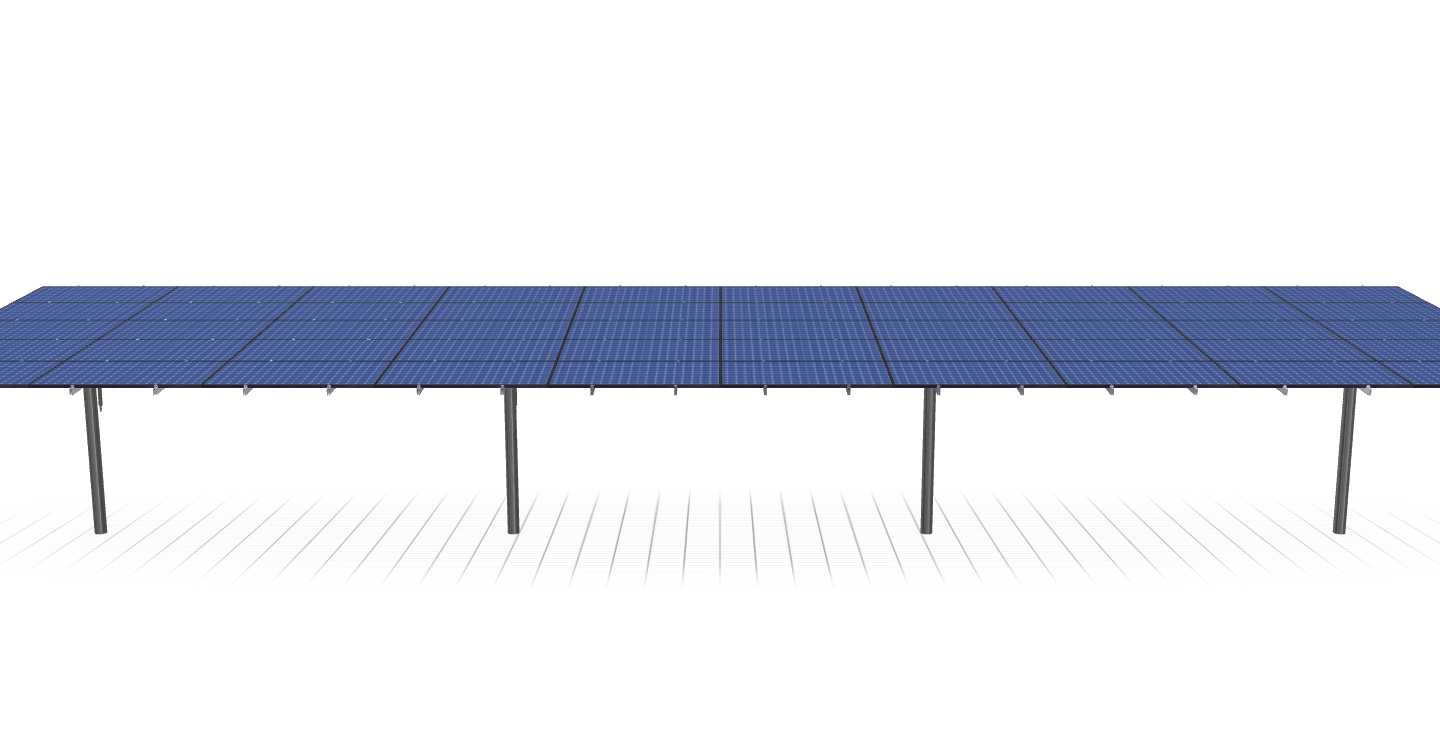

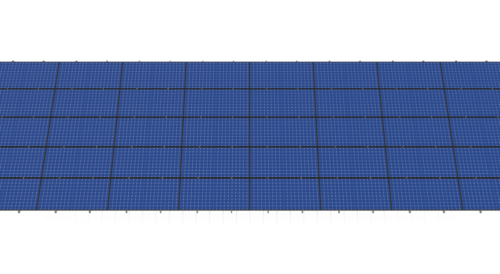

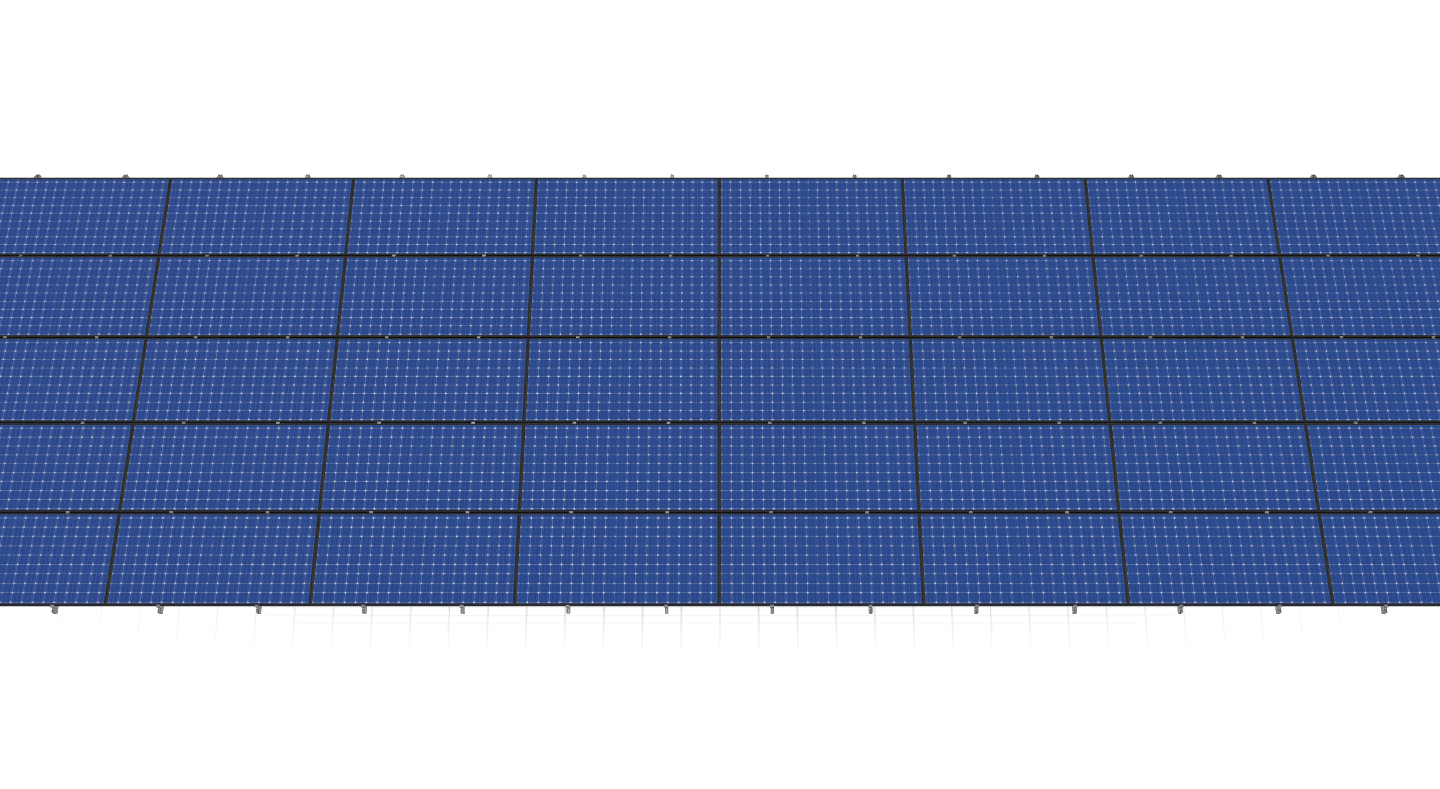

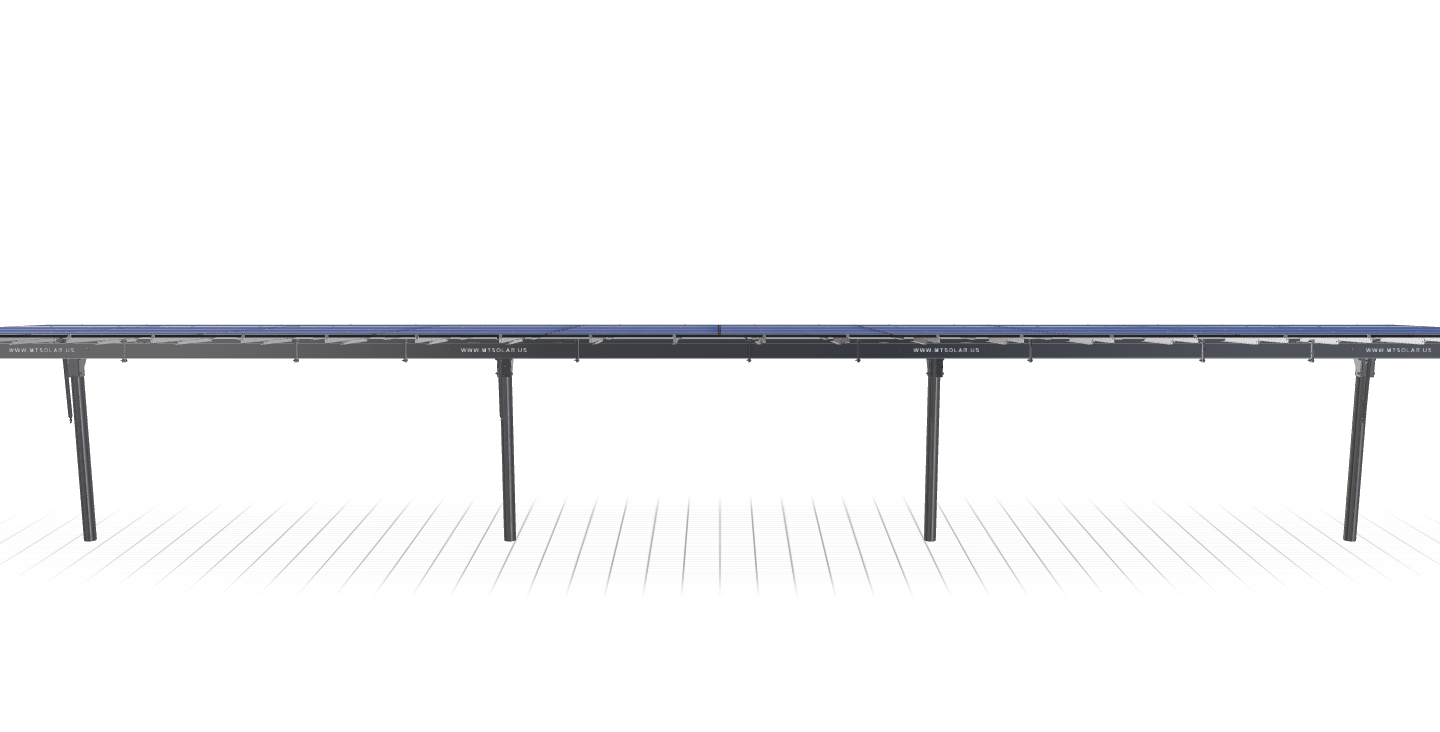

See 3D Model Here
CHC-RevA
$21,196.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41 inches and an array layout of 10 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4046.6200000000003 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-HD-24-L-5HX10W-789F |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.05 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 7.00 |
| CANTILEVER | 849.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1224.83 |
| ARRAY WIDTH | 70.83 |
| ARRAY HEIGHT | 17.29 |
| RAIL LENGTH | 207.50 |
| MODULE LENGTH | 84.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 70.75 |
| GROUND TO TOP | 10.09 |
| PROJECTED PANEL HEIGHT | 2.08 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | CHC-REVA |
| SITE ADDRESS | 543, BEULAH, RD, VIENNA, VA, 22180, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 20186.88 |
| TOTAL WEIGHT | 4046.62 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/21b181ce-e8fe-4013-a9c1-8a029ad81ce8.pdf |
|
| ID | 943.00 |
| 3D Solar link |
