This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.37 inches by 40.83 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

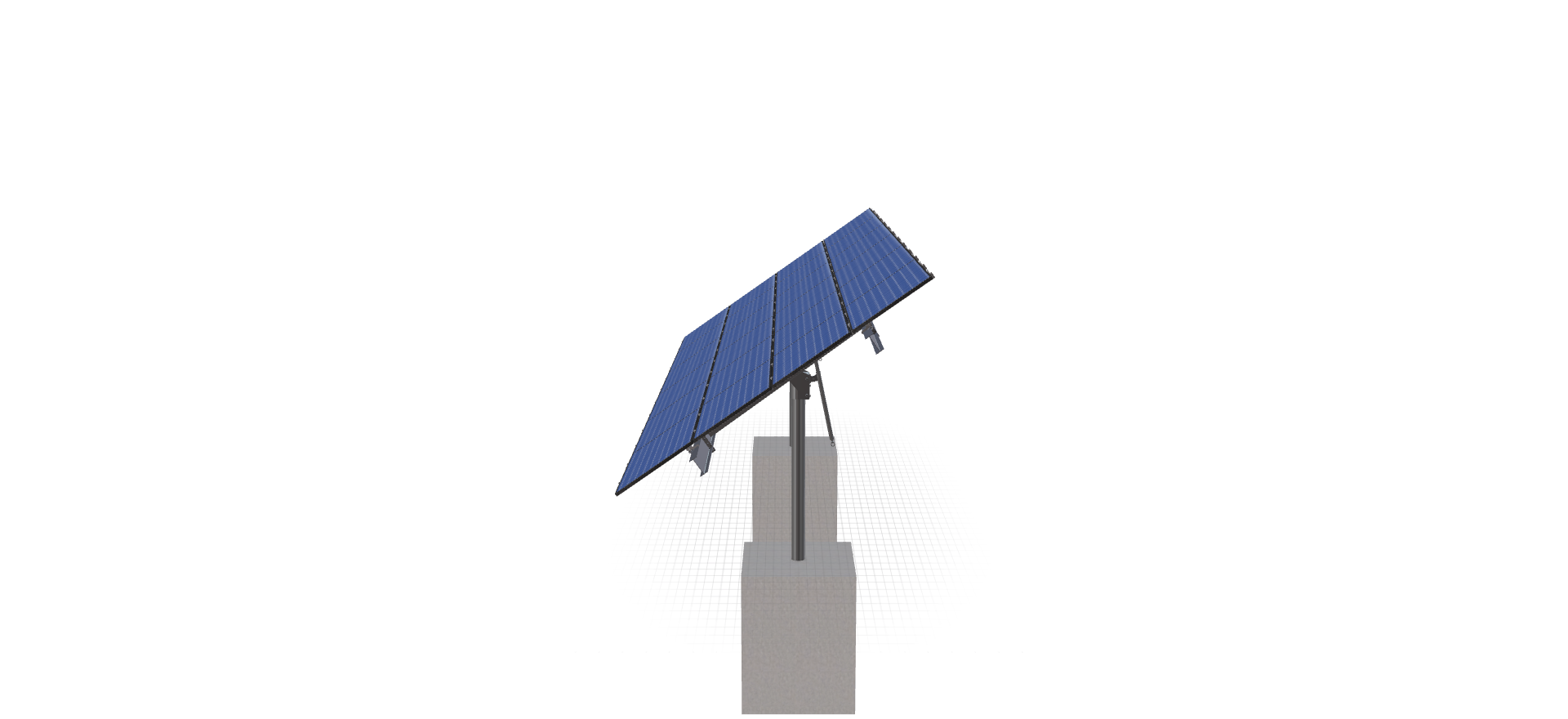

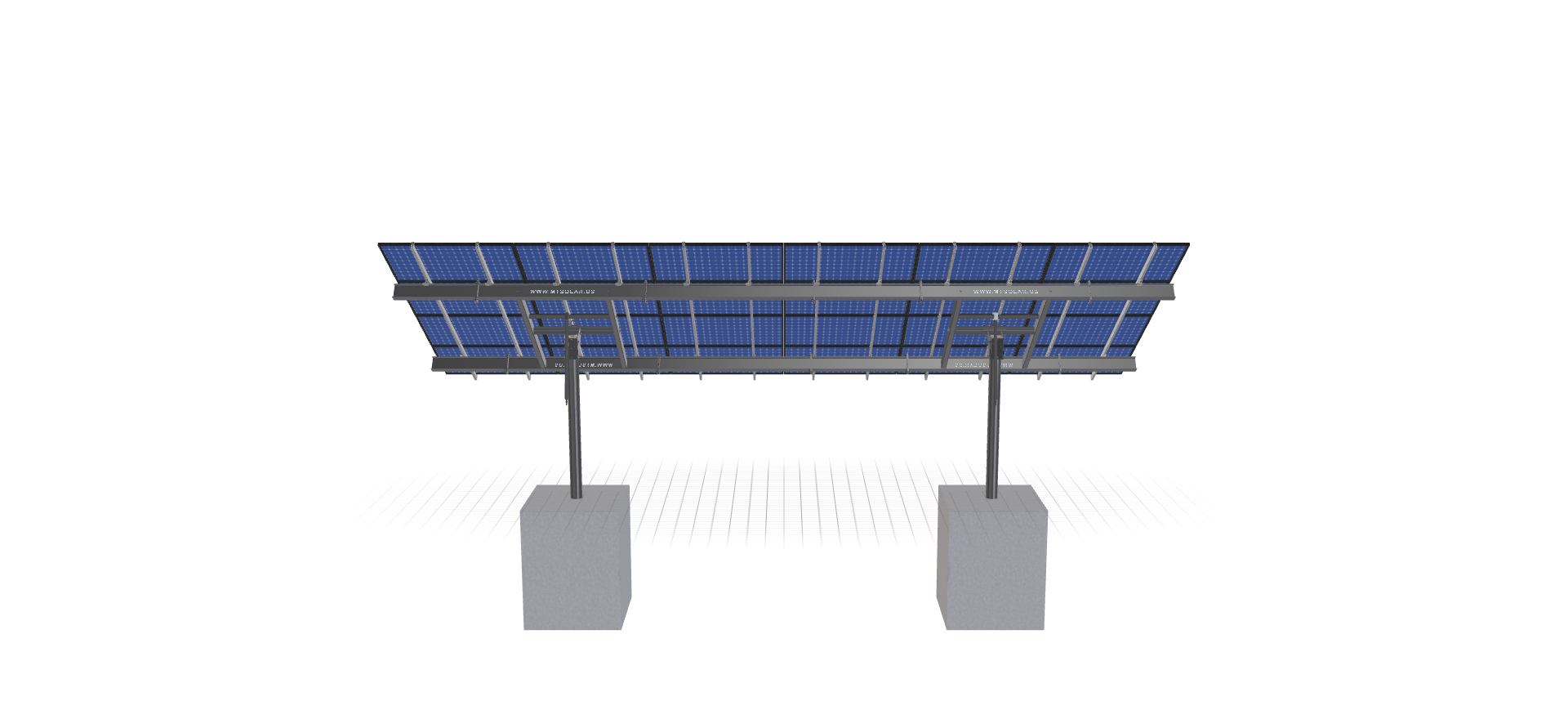

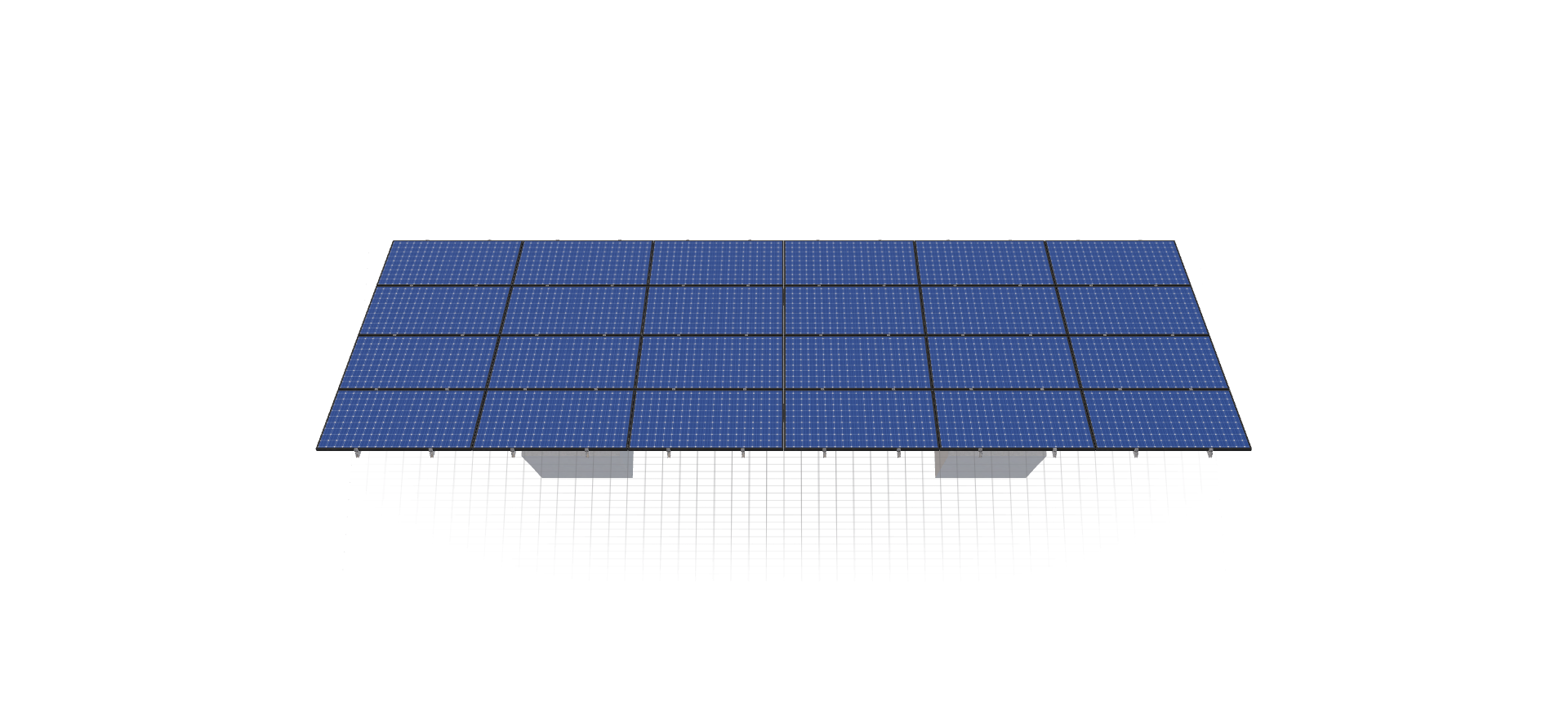

See 3D Model Here
Chris Vigneault
$10,972.08
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.37 inches by 40.83 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1934.0199999999998 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-8TOP-XD-45-L-4HX6W-66G8 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 7.95 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 417.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 2.00 |
| MODULE AREA | 484.73 |
| ARRAY WIDTH | 35.19 |
| ARRAY HEIGHT | 13.78 |
| RAIL LENGTH | 165.32 |
| MODULE LENGTH | 69.37 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.75 |
| GROUND TO TOP | 11.85 |
| PROJECTED PANEL HEIGHT | 7.81 |
| PROJECT ID | CHRIS, VIGNEAULT |
| SITE ADDRESS | 1152, CENTER, RD, LYNDEBOROUGH, NH, 03082, USA |
| MODULE WIDTH | 40.83 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 80.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 10449.60 |
| TOTAL WEIGHT | 1934.02 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b588ea35-61d2-4599-96bb-bd51c2011ea4.pdf |
|
| ID | 1440.00 |
| 3D Solar link |
